Denz 90° Camera Bracket


Denz Digital Camera Bracket 90°  (DCB 90)

Portrait mode framing is increasingly popular. (Yes, it’s easier to hold the iPhone vertically to take pictures.) This will surely affect how we view and compose not only stills, but also video.

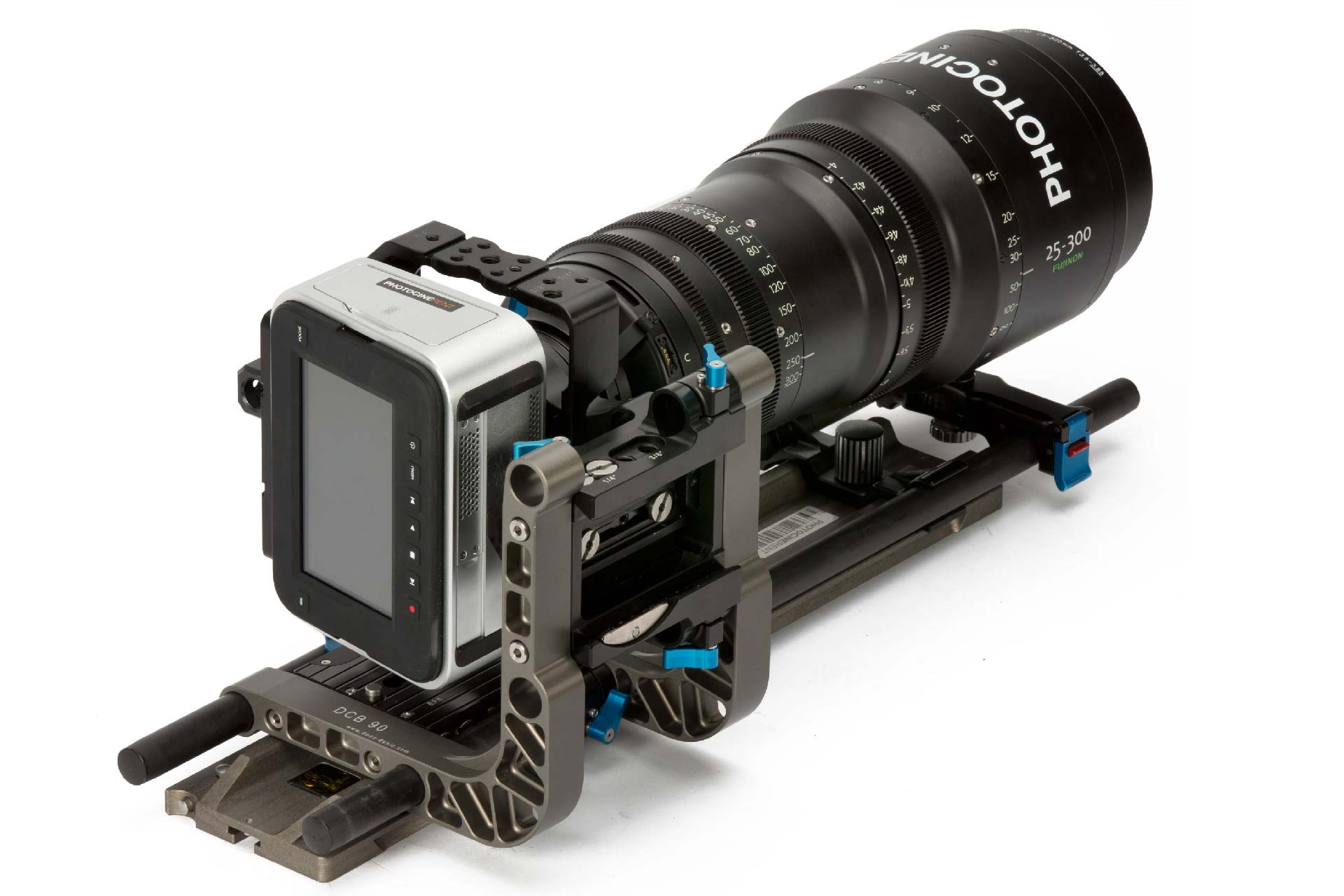

To avoid cropping or pillaring  the sensor area when rotating the aspect ratio vertically, Munich-based manufacturer DENZ, in cooperation with PhotoCineRent in Paris, developed a 90° camera support. This positions any digital camera at a 90° angle on any tripod or dolly.

Now, instead of cropping the image at its sides, the sensor is in an upright position delivering its full resolution.

The system consists of two 90° angle brackets, 2 redesigned BP-multi-special baseplates, a DENZ BP12 adapter, a universal balancing bracket, a camera-specific support plate, and 4 rods as an option.

Technical Data:

Side length of angle brackets 200mm (diam. 19mm, 104mm apart), width 155mm, weight 1,6kg.

For more info:

Präzisionsentwicklung DENZ Fertigungs GmbH, Otto-Hahn-Str. 12-14, D-85521 Ottobrunn/München, Tel.: 089 62 98 66 0
