There are many compelling reasons to rush out and get the new DJI Ronin RS 5. Like the dramatic beats that advance a screenplay, here are the important features that make this gimbal so enticing.
RS Enhanced Intelligent Tracking Module.

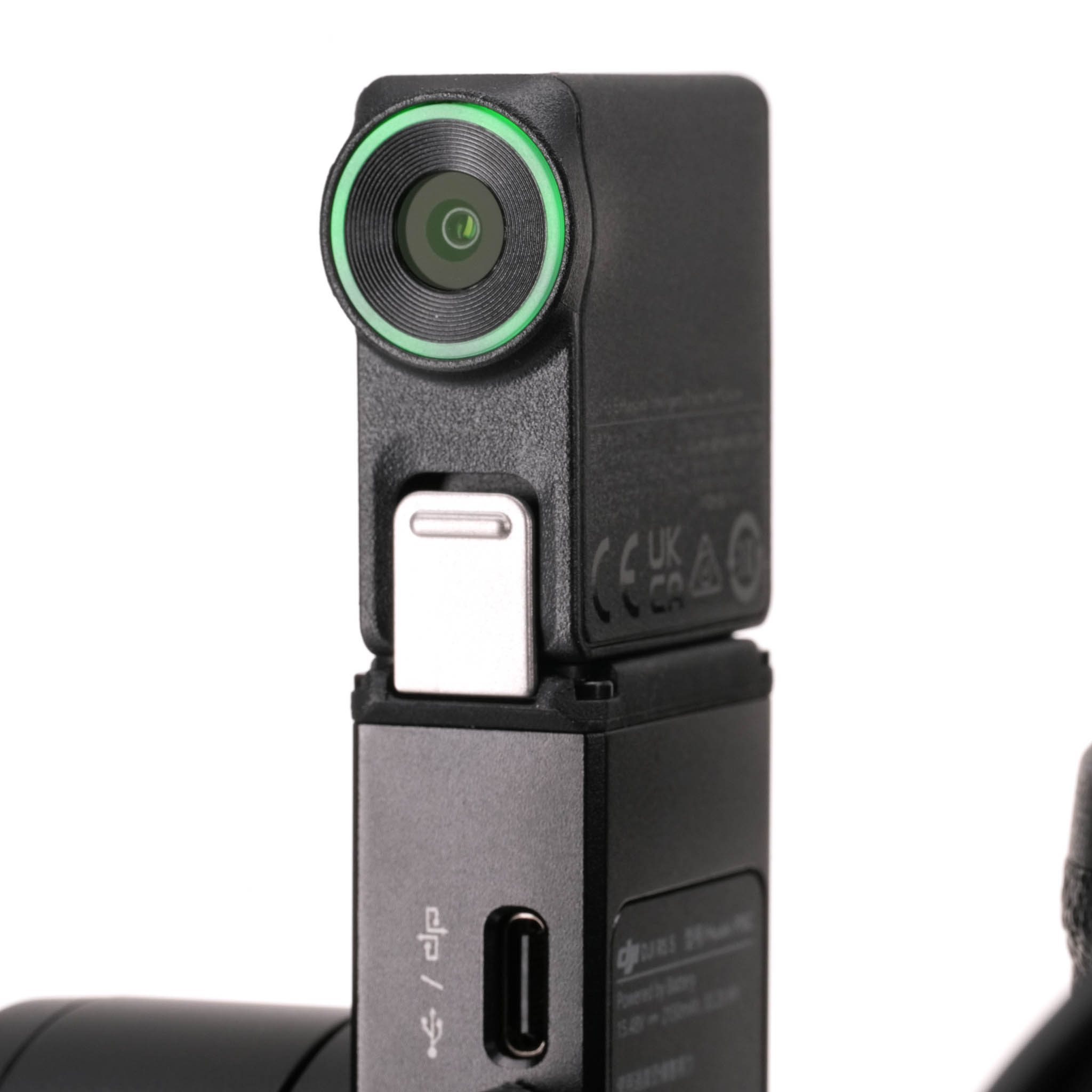

This is my favorite new feature. The RS Enhanced Intelligent Tracking Module attaches to the RS5 magnetically, secured by two additional mechanical quick-release safety locks. It connects to the top of the gimbal via pogo pins—no cables needed.
The module has a small built-in camera and lens that identify and keep a person, animal or object (car, bike, building, set piece) elegantly in frame.
This makes orbiting, circling, following, leading, tracking or traveling shots a breeze, keeping somebody or something smoothly centered. Raise your hand, palm toward camera, to begin tracking.

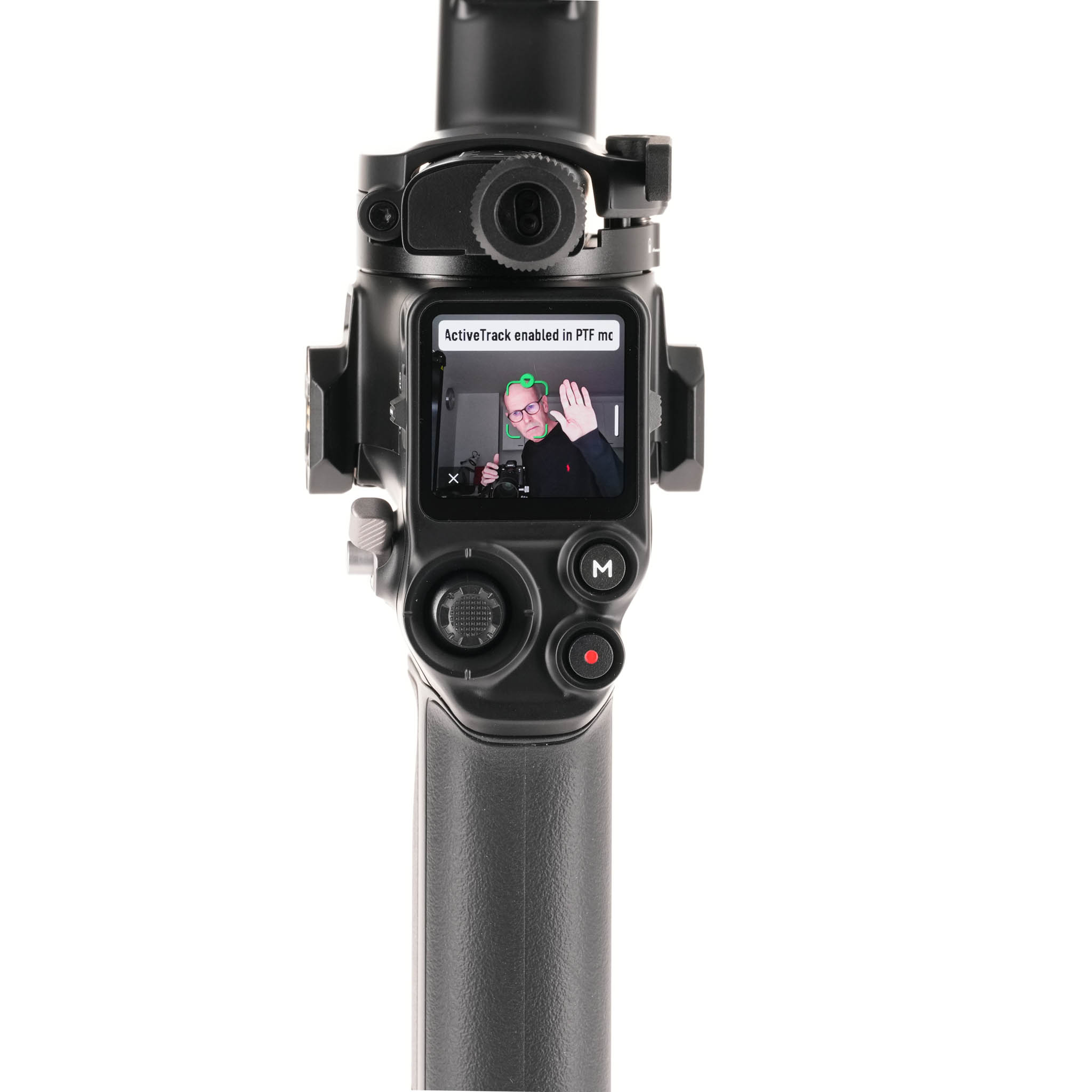

Of course, the omniscient director hovering over your shoulder or criticizing your composition prefers off-center framing. The RS 5 ActiveTrack settings menu provides choices of speed and composition, including “Keep Current Framing” or Center Tracking Subject.” Best of all, the RS Enhanced Intelligent Tracking Module’s video live view is displayed on the RS 5’s OLED screen.
Touch the display to select the subject or object of your attention. It works up to 33 feet away (10 meters) from people.
6.6 lb Payload
The RS 5 can carry a camera and lens package up to 3 kg (6.6 lb). That includes a big selection of hybrid camera and probably these bigger cameras: GFX ETERNA (4.41 lb); PYXIS 12K (3.5 lb); Sony FX6 (2 lb); ALEXA Mini LF (5.7 lb); RED V-RAPTOR [X] 8K (4.03 lb); Canon EOS C400 (3.4 lb); etc.
Smoother Moves
The RS 5 does not have an up-down Z-Axis arm like the DJI 4D. But it does have a Z-Axis indicator in the menu to reveal a bar graph along the right side of the OLED display. A centered green arrow shows when your gliding footsteps and fluid arms are keeping the gimbal in a blissful state of stabilization. Bounce your body too much or walk like a duck instead of a dancer, and the indicator glows a warning orange and then an ominous red.
Furthermore, maximum torque of the RS 5 motors have been beefed up by 50% to counteract more extreme camera moves.
Connections
The RS 5’s shutter and record buttons now connect via Bluetooth to more cameras, including Fujifilm, Panasonic, Sony, Canon and Nikon. Of course, RS 5 also works with DJI Focus Pro lens motors, DJI SDR Transmission, DJI Master Wheels and other gimbal remote control units.
Batteries and Other Improvements
The standard battery runs an RS 5 for about 14 hours. The new BG70 High-Capacity Battery Grip runs the RS 5 for 30 hours. That’s not to suggest you should work such long hours; but when have to bivouac on the Eiger’s Hinterstoisser Traverse, you may not be obliged to charge your RS 5 batteries. When you do get power, an RS 5 battery can be fully charged in just one hour.

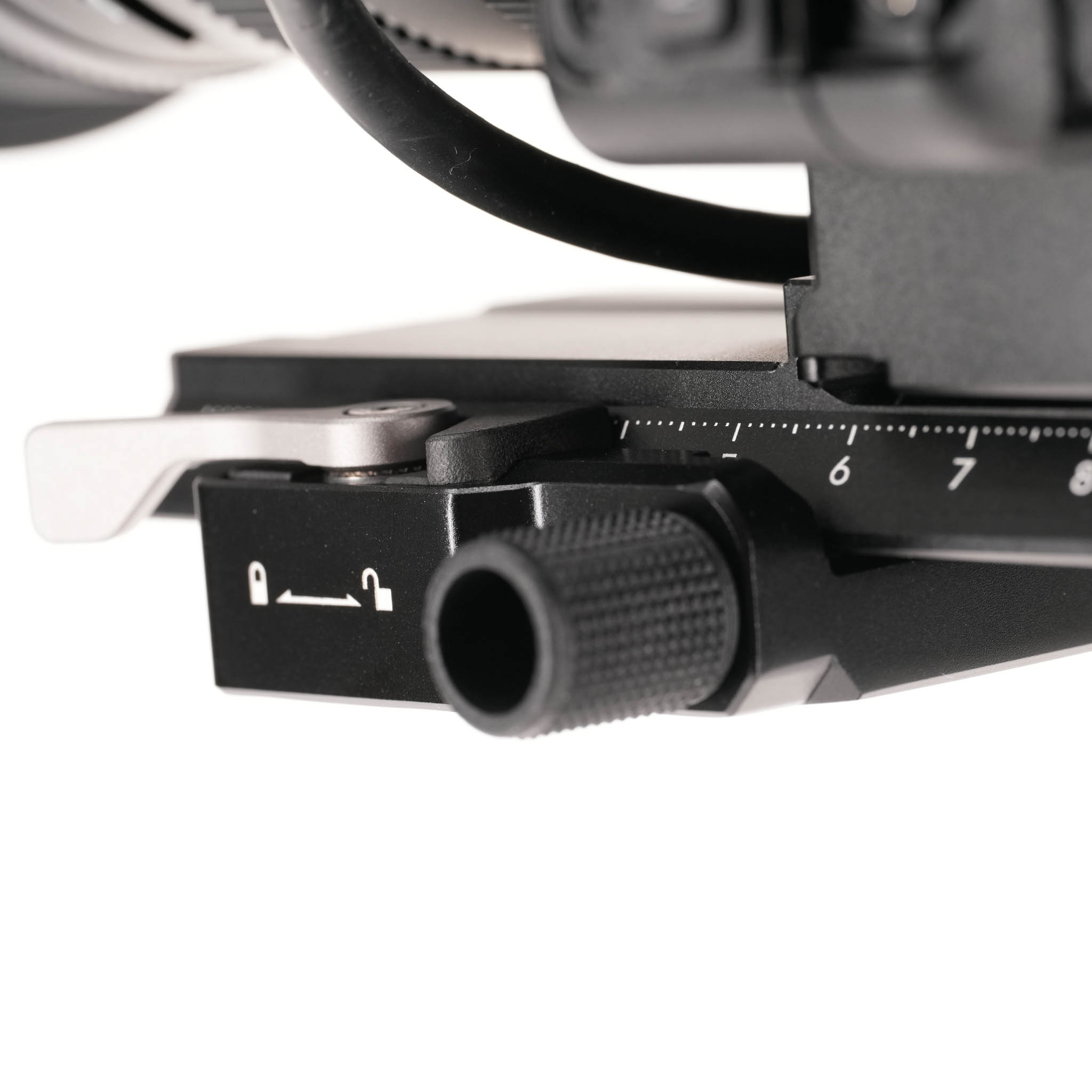

Balance your camera on the RS 5 using the Fine-tuning knobs.
A new “briefcase handle,” with redundant joystick and buttons, attaches for low angle shots, for two-handed operating, or as an extra mounting point for rigs. The new automated axes locks work faster than before. And the new Vertical Swap lets you switch from horizontal to vertical camera setups within a few seconds.
