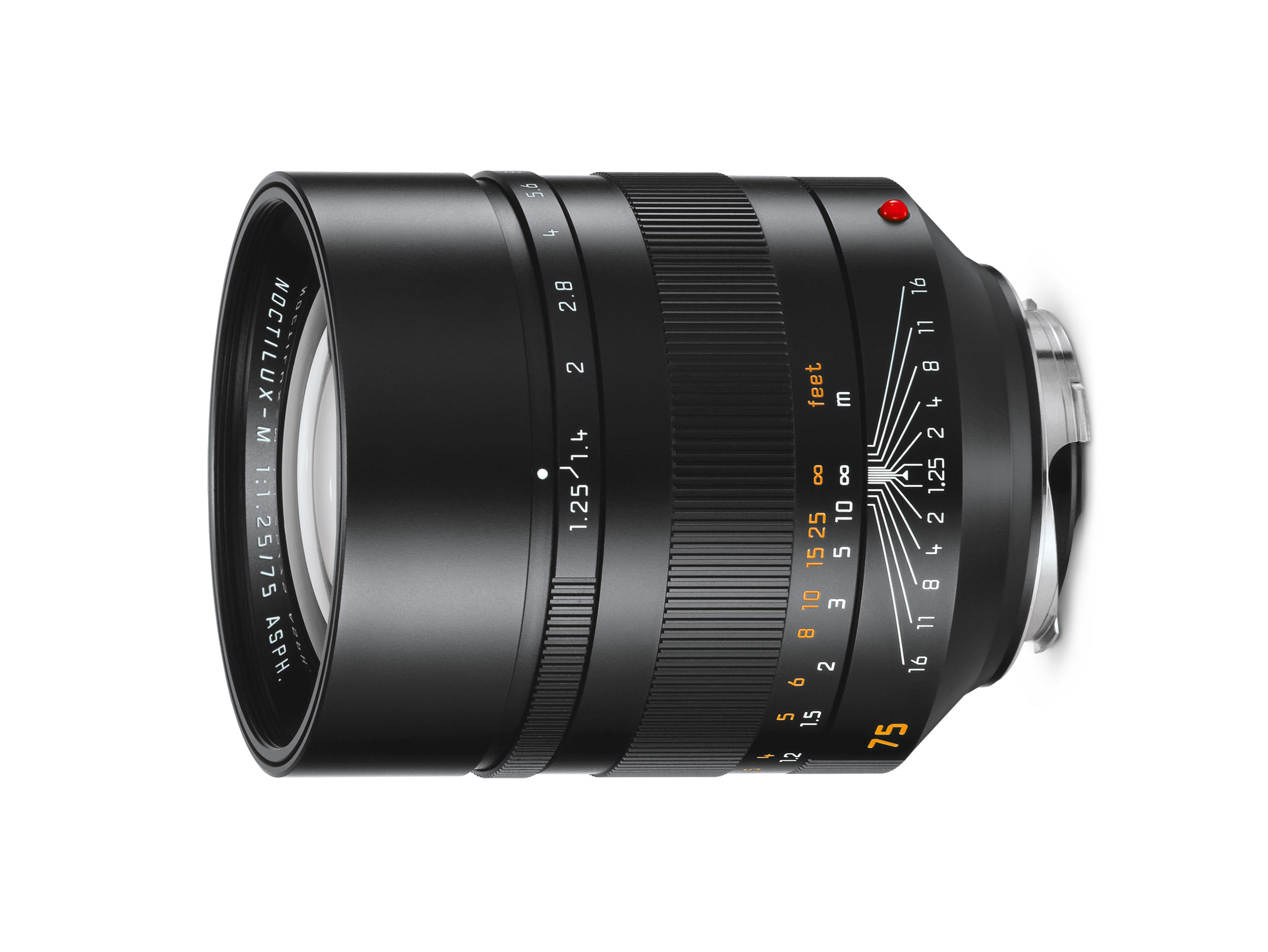

Leica Noctilux-M 75 mm f/1.25 FF Lens



Here’s an extremely fast Full Frame (Leica Format) Lens. The Leica Noctilux-M 75 mm f/1.25 ASPH. will be available at Leica Stores in early 2018. Expect to see an M0.8 version with cine lens gearing as well.

Angle of view (diagonal, horizontal, vertical) for 35 mm format (24 x 36 mm): ~ 32°, 27°, 18°
Optical elements: 9
Optical groups: 6
Aspherical surfaces: 2
Focusing range: 0.85 m to ∞ (imperial and metric focus scale)
Combined metre/feet graduation
For 35 mm format: ~ 212 x 318 mm / 1:8.8,
Leica M mount with 6-bit bar coding for Leica M digital cameras

Flange focal depth: 27.80 mm
Front filter thread: inner thread for E67 screw-mount filters

Iris blades: 11

Length front to flange: 91 mm
Largest diameter: 74 mm

Weight 1.055 kg.
