IB/E Optics Macro Full Frame – Updated

12/12/15 | by Jon Fauer
1 Comment

IBE_Macro_FF_Group_1---150-180-FDTimesThe Full Frame (24×36) Cine format race is heating up and focusing closer.

A new line of FF Macro Cine Lenses were introduced at the Band Pro Open House on December 10 in Burbank by IB/E President Klaus Eckerl and Band Pro President Amnon Band.

They said, “The new macro lenses were designed to address the industry-wide movement toward larger format sensors,” (including RED W6K and W8K, Sony a7, Canon, Nikon, and ARRI Alexa 65).

The first focal lengths in the new IB/E Macro FF lens family are 100mm T2.9, 150mm T2.9, and 180mm T2.9. They all cover Full Frame (24×36 mm / 44 mm diagonal). Close focus is 1:1 magnification, meaning you can fill the Full Frame 24×36 format with an object that is also 24 x 36 mm. At 1:1 Magnification, you lose 1⅔ stops. (* explanation at bottom)

Although they’re calling them Macro Lenses, they are also superb throughout the rest of focus range. They all focus to 1:1 and have internal focus, consistent position of the focus and iris gears (no need to move follow focus or lens motors when changing lenses). The front diameters are all the same: 95mm—same as Leica Summilux-C and Summicron-C.

The lens mount is UMS PL—Universal Mount System—familiar to users of IB/E Exenders, Expanders, and conversion kits. It quickly converts, without tools, between PL, Canon EF, Nikon F, Sony E and MFT mounts.

IB/E Optics is a Bavarian company well known for expanders, adapters, BavEyes, IBELux 40mm T1.9, S35 Scope, industrial, machine vision, as well as the ARRI Alexa 65 primes and the 50-110 zoom.

The IB/E Macro FF lenses are expected Summer 2016 and are available exclusively from Band Pro Film & Digital worldwide.  www.bandpro.com

www.ibe-optics.com

IB/E Optics Macro FF Primes

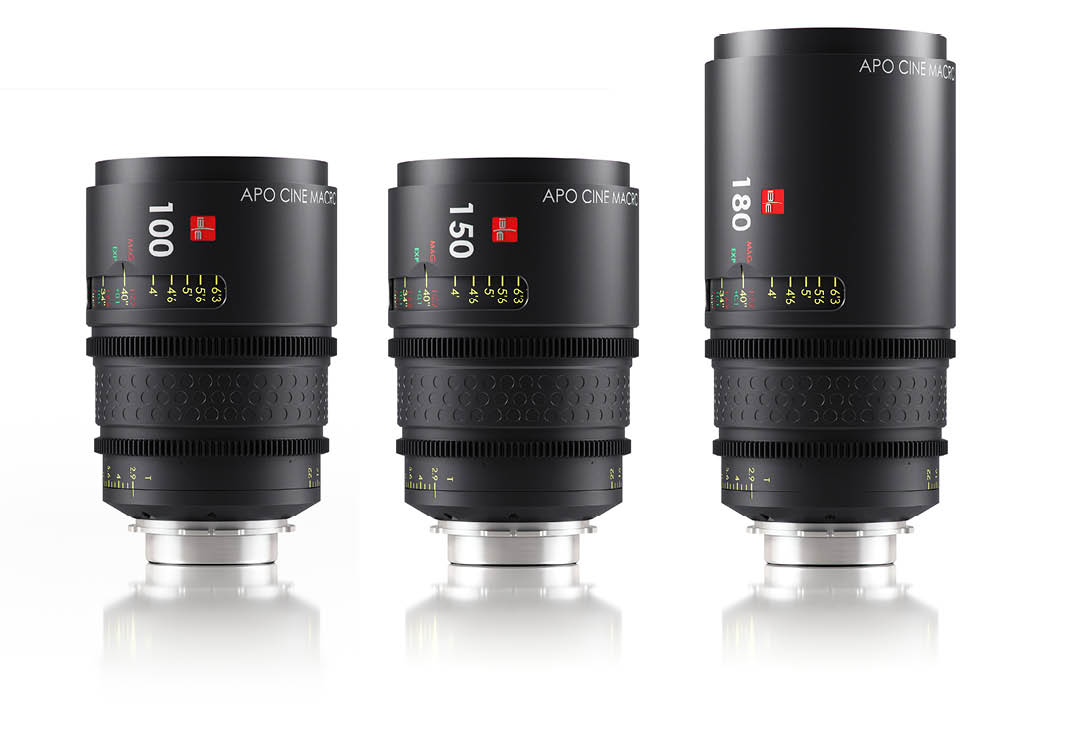

  • Focal lengths: 100, 150, 180 mm
  • Aperture: T2.9-T22
  • Close Focus: 1:1
  • MOD (Close Focus 100/150/180 lens): 12.2” / 15” / 18.5”
  • Maximum Aperture at 1:1 Close Focus: T5.3
  • Focus Rotation: 300 degrees
  • Iris Rotation: 70
  • Gear pitch: 0.8 (industry standard)
  • UMS PL Mount (converts to Nikon F, Canon EF, Sony E, etc)
  • Adjustable flange focal distance (no shims)
  • /i Lens Metadata optional
  • Iris Leaves 9
  • Image Circle: 44 mm
  • Length Flange to Front for 100, 150: 145 mm / 5.7”
  • Length Flange to Front for 1185: 200 mm / 7.9”
  • Front Diameter: 95 mm / 3.7”
  • Approx Weight 100 / 150 / 184: 1.5 kg / 1.9 kg / 2.9 kg



L1020511-fdtimes

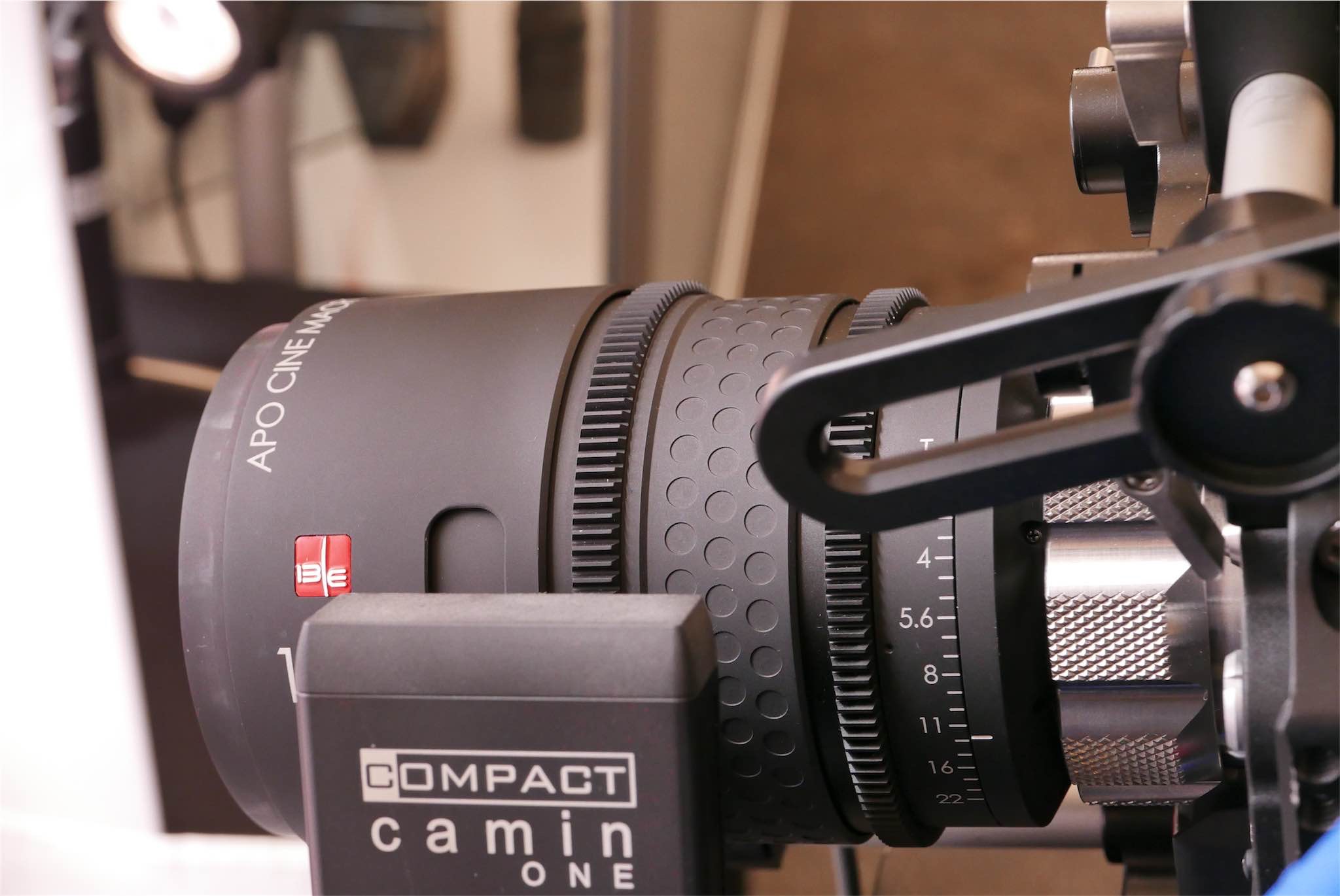

L1020510-fdtimes

L1020638_Band_Cree_IBE_Macro_FF-FDTimes

Band Pro President Amnon Band and CTO Jeff Cree cradling IB/E Optics prototype 100mm Macro FF.

L1020516_Eckerl_Macro_FF-FDTimes

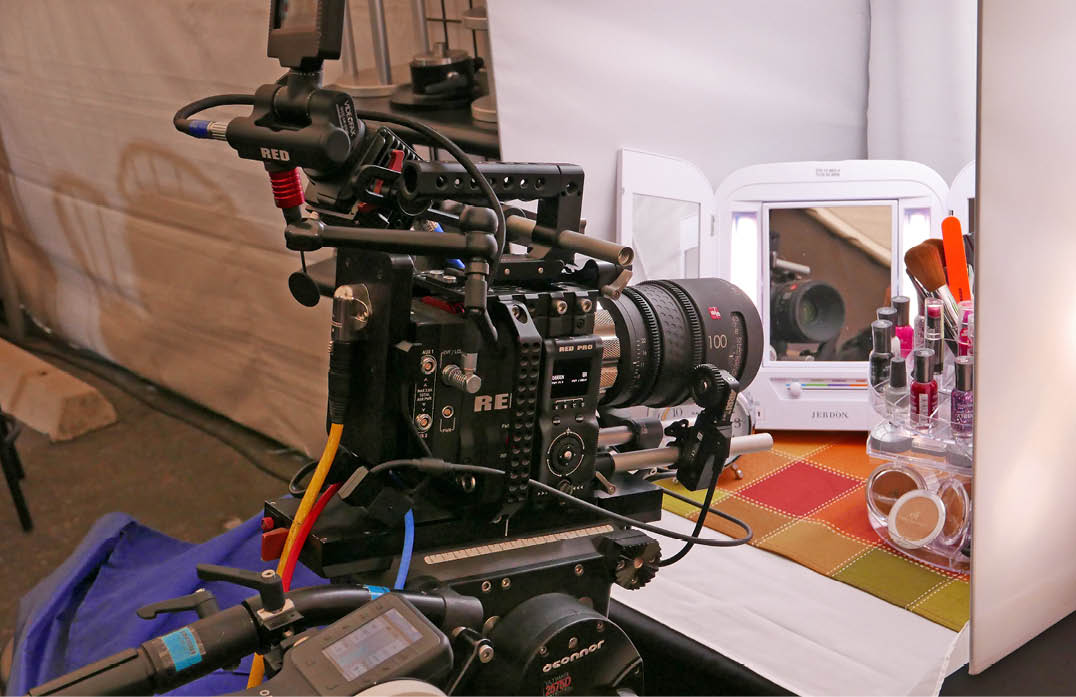

Klaus Eckerl, President of IB/E Optic, with prototype Macro FF 100mm

L1020515_IBE_Macro_FF-FDTimes



* Why these Macros lose 1.75 stops and not 2 stops at 1:1 Focus Distance

Klaus Eckerl, lens designer and head of IB/E Optics explains:

Here are some explanations of this rather simple but sometimes misunderstood topic.
The formula is: EXPOSURE FACTOR = (1 + magnification) squared.
So, at 1:1 (actual size) magnification:  ( 1+ 1 ) squared = Exposure Factor of 4.
Exposure Factor of 4 means 2 stops. So you would have to compensate your exposure reading by 2 stops. In other words, at 1:1 Close Focus, if you had the lens iris set to T2.9, your light meter should read T5.8. — you need 2 stops more light.
In reality, it is a bit more tricky. The values of our specifications show the actual measured data.
How can it be less than a 2-stop exposure compensation?
It’s the influence of the design principle. If you just calculated the magnification while decreasing the Object Distance and increasing the Lens Distance to the image sensor, then the exposure factor of 2 is true. (That’s what happens when you see the front of the lens moving away from the image plane as you focus closer.)
But we have an internal focus setup. Therefore the focal length changes while focussing, and that is why the exposure compensation of these lenses is actually 1.75 stops.
Image magnification and exposure compensation values are engraved on the focus barrel of the lens — in the same style as the ARRI/ZEISS Master Macro 100.
