Cooke 65mm Macro Anamorphic at Cine Gear.

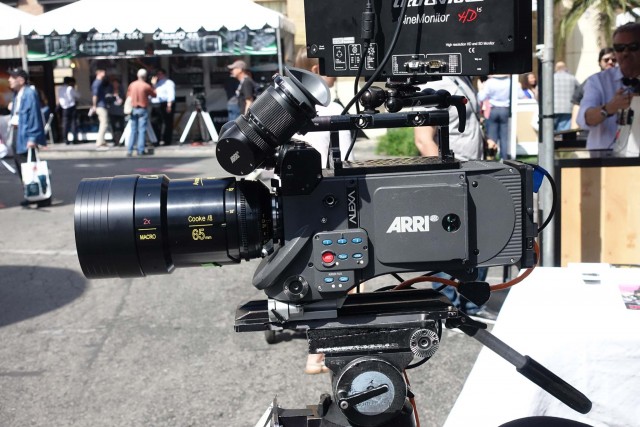

Camera Left Side. Photos by Richard West.

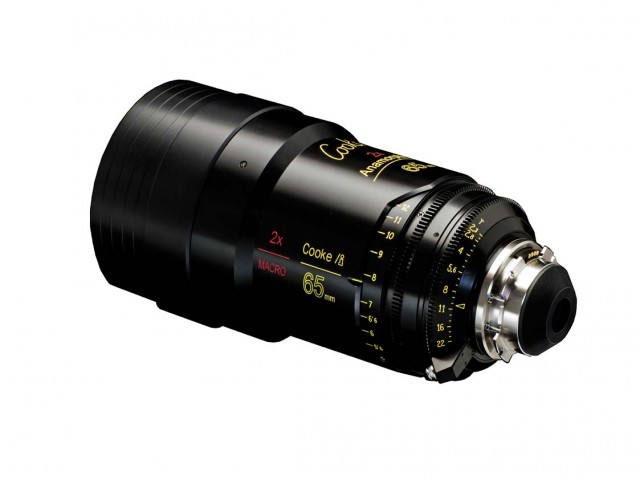

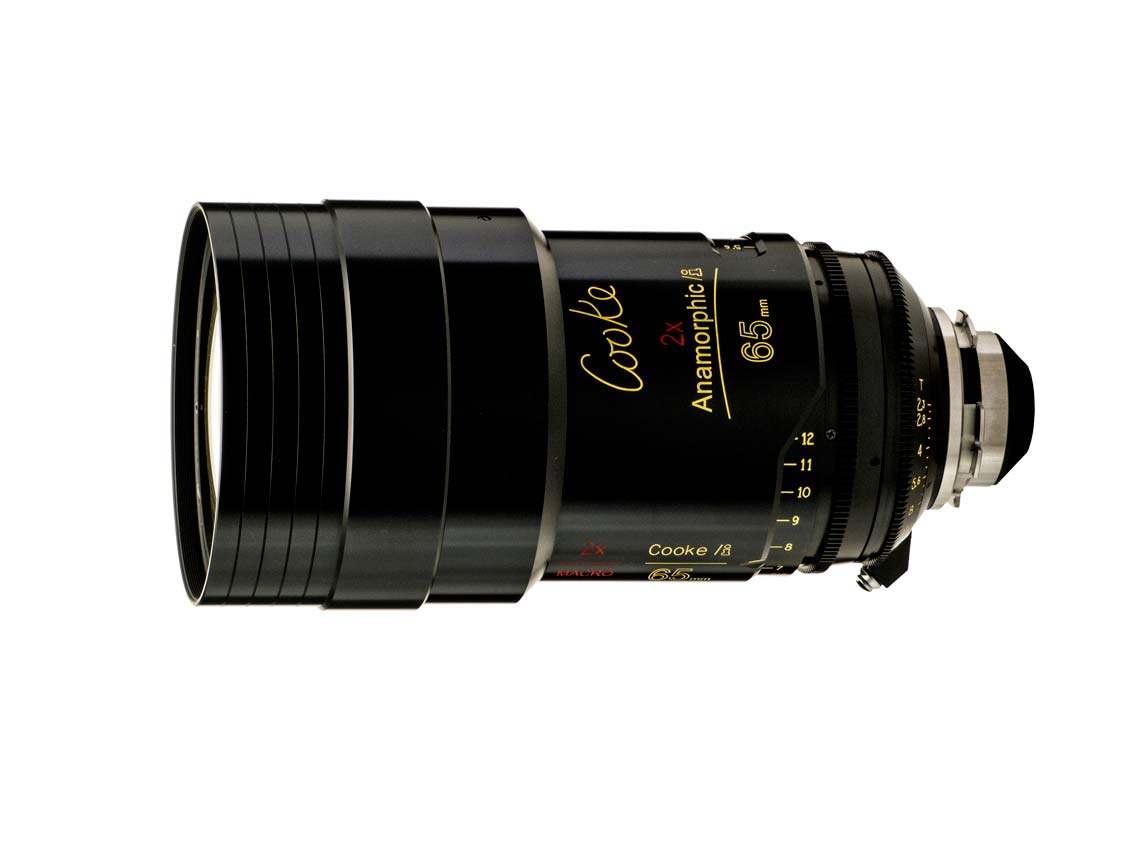

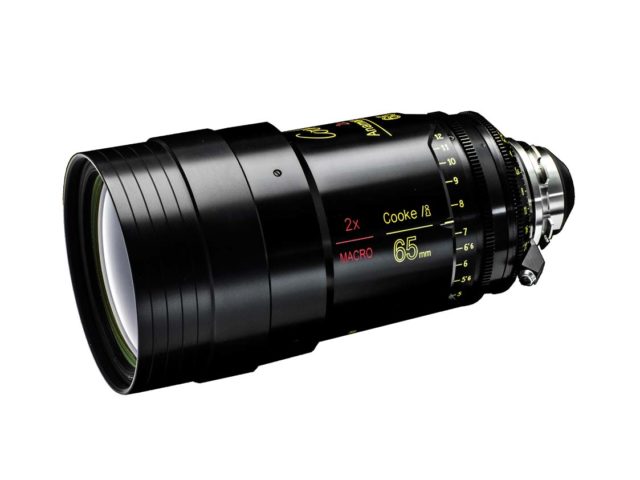

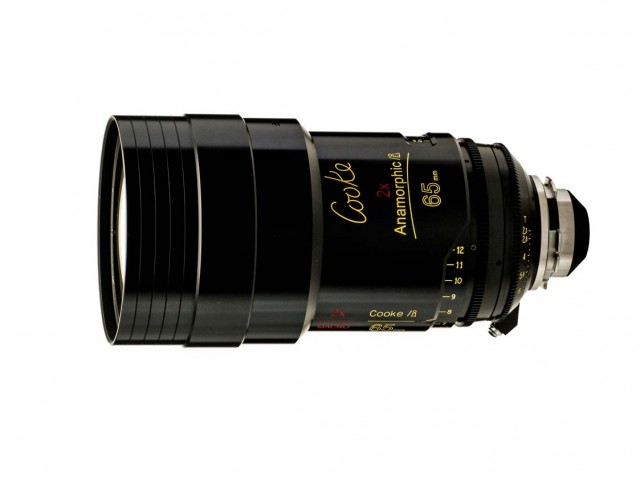

Here’s the lens that many cinematographers have been waiting for from Cooke. Cooke introduced their new 65 mm Macro Anamorphic /i 2x Prime lens at Cine Gear. It has a close-up magnification ratio of 4.1:1.
Anamorphic lenses typically don’t focus as close as spherical primes. For example, a Cooke 25 mm Anamorphic/i will focus to 33” while a Cooke S4/i 25 mm focuses to 9” and an S4/i 50 mm focuses to 20”.
So here’s the lens for ECU portraits, product shots on commercials, or any time you need to fill the 2.40:1 frame with something very close. To get an idea of how close, multiply the magnification ratio (4.1) of this lens by the width of your sensor. (e.g.: 4.1 x 22 mm = 90.2 mm, which is 3.6 inches.)
Cooke 65 mm Macro Anamorphic /i Specs
- T-stop range: T2.6 – T22
- Min marked object distance: 450 mm (18”)
- MOD: 420 mm (16.5”)
- Light loss at MOD: 1/3 stop
- Close focus from lens front: 140 mm (5.5”)
- Front diameter: 136 mm
- Magnification: 4.1:1
- Max. angle of view (H/V) 36.9°/15.6°
- Angular rotation of iris scale: 90°
- Angular rotation of focus to MOD endstop: 300°
- Length from front of lens to mount: 258 mm (10.1”)
The Cooke Anamorphic /i 2x Prime Lens set:
- 25 mm T2.3
- 32 mm T2.3
- 40 mm T2.3
- 50 mm T2.3
- 65 mm Macro T2.6
- 75 mm T2.3
- 100 mm T2.3
- 135 mm T2.3
- 180 mm T2.8 coming
- 300 mm T3.5 coming
and as announced at NAB, Anamorphic /i Zooms coming later this year.
Top View
