NAB 2014 Camera Reports

Here is a whirlwind review of NAB 2014 cameras in pictures and brief text. Click on an individual thumbnail to enlarge and navigate as a slideshow.

Sony’s annual press conference on the Sunday before opening day was all about 4K, and not just in the usual places. A new Sony α7s camera was unveiled: with a 24×36 mm full frame sensor, E-mount and 12.2 megapixel sensor that goes up to ISO 409,600. It shoots stills internally and UHD4K video 3840 x 2160 to an external device. Sony’s line of 4K cameras now numbers 6. There also are an increasing number of Sony still lenses. The F5 and F55 got an upgrade to version 4.0, a new shoulder-mount ENG/Doc Dock was shown, along with a 4K player.

AJA’s press conference traditionally opens opening day, and answered my long-annoying question “when are you guys going to build a camera?” It was inevitable: both Nick Rasby and Jon Thorn were cameramen and there was a gleam in their eyes all these many years. The AJA Cion has an incredibly lightweight and rugged magnesium body, 4K APS-C format CMOS sensor, global shutter, stylish wood/aluminum handle, integrated web user interface, built-in realtime video monitor preview, ProRes, and abundant thoughtful touches like M6 Hirth Tooth Rosettes on both sides for handgrips (hurray!), cheese plates, rod mounts, and comfortable contoured suede leather shoulder pad. DSC02049-FDTimes

Next stop, the Blackmagic Press Conference, where Grant Petty unveiled the new URSA camera: 4K Super35 sensor, global shutter, includes DaVinci Resolve software, user upgradeable with interchangeable mount/sensor blocks, records RAW and ProRes to internal dual CFast cards, and thoughtful design that accounts for where crews work. The build-in camera operator’s monitor swings out to reveal a gigantic 10″ screen. There are 2 touch screens for controls and scopes.

An hour later, Panasonic’s Director of Pro Video Mr. Kunihiko Miyagi revealed their new Varicam 4K, with Codex onboard RAW recorder, showing 14 stops of latitude, Super35mm sensor, PL mount, ProRes and 4K RAW. Rainer Hercher, Codex Business Development Manager, explained the modular Codex recorder.

ARRI’s booth swarmed with people eager to try out the new Amira Documentary/ENG HD/2K camera with PL mount and same sensor as Alexa. A B4 adapter has a connector to plug in and power 2/3″ ENG lenses. Amira was still the only game in town with a 4:3 24×18 mm full-height sensor to take advantage of the many new ARRI/ZEISS, Cooke, and Scorpio anamorphic lenses at the show.

RED’s new Epic Dragon is popular at rental houses worldwide, and their NAB fashion runway showed how the camera could be used for both video and stills, portrait or landscape mode, with their innovative R-90 mount.

JVC showed mockup concepts of new 4K cameras with 35 mm sensor and Micro Four Thirds lens mounts. Craig Yanagi, JVC Manager, Marketing and Brand Strategy, at lower right.

Tags: , ,

Leica-T Camera

Leica_T_Ur-Leica

One hundred years after the introduction of the Ur-Leica, Leica Camera launches their new  Leica T-System today. Designed in collaboration with Audi Design, the Leica T-System is an APS-C format mirrorless camera with interchangeable lenses. I was fortunate to try it briefly at NAB. It was almost as if the spirit of Oskar Barnack was smiling down on this latest, essentially elegant Leica camera, with intuitive controls, auto focus, and sculptural design.

Leica-T_silver_Summicron-T_23_ASPH

The Leica T (Typ 701) camera has an APS-C-size CMOS image sensor with over 16.5 megapixels (effective 16.2 MP). The  menu can be customized to the user’s preferences for easier access to frequently used settings. GPS is integrated.

Taifun_Body_Porto_cmyk04

The unibody construction is hand crafted and machined from a single, solid block of aluminum. Its Wi-Fi module sends images to smartphones, tablets, and  social media sites via the new Leica-T app which is available for iOS devices. Adobe Photoshop Lightroom is available as a free download after registering the camera on the Leica website.

Two new lenses are being introduced at the Leica T-System launch:  Leica Vario-Elmar-T 18-56 mm f/3.5-5.6 ASPH and  Leica Summicron-T 23 mm f/2 ASPH. More to come. The Leica M-Adapter T accepts all Leica M-Lenses produced after 1954.

Viewing is via the 3.7″ TFT LCD touchscreen monitor on the back that controls functions and uses familiar gestures.

Leica-T_My_camera

Leica-T_display_1

You can also use the optional Leica Visoflex electronic viewfinder.

Leica-T_Visoflex

The Leica T-System will be available to order starting Monday, May 26th through Leica Stores, Leica Boutiques, and select Leica Dealers.

Technical Data LEICA

  • Camera: Leica T (Typ 701)
  • Lens mount: Leica T bayonet mount with electronic contacts between lens and camera
  • Lens system: Leica T lenses
  • Sensor: CMOS sensor, size APS-C (23.6 x 15.7 mm) with 16.5/16.3 million pixels (total/effective), format aspect ratio 3:2
  • Resolution: JPEG: 4928 x 3264 (16 megapixels), 4272 x 2856 (12.2 megapixels), 3264 x 2160 (7 megapixels), 2144 x 1424 (3 megapixels), 1632 x 1080 (1.8 megapixel), DNG: 4944 x 3278 pixels
  • Picture data file formats / compression: Selectable: JPG Superfine, JPG Fine, DNG+ JPG Superfine, DNG + JPG Fine
  • Video recording format: MP4
  • Video resolution / frame rates: Selectable: 1920 x 1080p, 30 fps or 1280 x 720p, 30 fps
  • Storage media: 16GB internal memory; SD/SDHC/SDXC memory cards, multimedia cards
  • ISO range: Automatic, ISO 100 to ISO 12500
  • White balance: Automatic, presets for daylight, cloud, halogen lighting, shadow, electronic flash, two manual settings, manual color temperature setting
  • Autofocus system: Contrast based
  • Autofocus metering methods: Single point, multiple point, spot, face detection, touch AF
  • Exposure modes: Automatic program, aperture priority, shutter speed priority, manual setting, scene exposure modes: Fully automatic, sport, portrait, landscape, night portrait, snow/beach, fireworks, candlelight, sunset
  • Exposure metering: Multiple field, center weighted, spot
  • Exposure compensation: ±3 EV in 1/3 EV increments
  • Automatic bracketing: Three pictures in graduations up to ±3 EV, adjustable in 1/3 EV increments
  • Shutter speed range: 30 s to 1/4000 s
  • Picture series: Approx. 5 fps, 12 pictures with constant picture frequency, then depending on memory card properties
  • Flash modes: Automatic, automatic / red eye reduction, always on, always on / red eye reduction, slow sync, slow sync / red eye reduction
  • Flash exposure compensation: ±3 EV in 1/3 EV increments
  • Flash synchronization: Sync time: 1/180 s
  • Guide number of built-in flash unit: for ISO 100: 4.5
  • Recovery time of built-in flash unit: Approx. 5 s with fully charged battery
  • Monitor: 3.7″ TFT LCD , 1.3 million pixels, 854×480 per color channel
  • Self timer: Selectable delay time 2 or 12s
  • WLAN: Complies with IEEE 802.11b/g/n standard (standard WLAN protocol), channel 1-11, encryption method: WiFi compatible WPA / WPA2
  • Power supply: Leica BP-DC13 lithium ion battery, rated voltage 7.4V, capacity 1040mAh (based on CIPA standard): approx. 400 pictures, charging time (after total discharge): approx. 160 min
  • Connections: Micro USB port (2.0 High Speed), Leica flash interface with integrated connection for optional accessories; battery charging via USB connection possible with max. 1A
  • Charger: Leica BC-DC13, input: AC 100-240V, 50/60Hz, automatic reversing, Output: DC 8,4V 0,65A, Weight: approx. 90 g, Dimensions: approx. 96x68x28 mm
  • Body: Leica unibody solid aluminum design, two removable dummy plugs for carrying strap and other accessories, ISO flash shoe with center and control contacts for connection of more powerful external flash units, e.g. Leica SF 26, or for attaching the Leica Visoflex electronic viewfinder
  • Tripod thread: A 1/4 DIN 4503 (1/4”)
  • Dimensions (WxHxD): 134 x 69 x 33 mm
  • Weight: Approx. 384 g / 339 g (with / without battery)
  • Items supplied: Camera body, carrying strap, 2 carrying strap release pins for detaching the carrying strap, battery (Leica BP-DC13), charger (Leica BC-DC13) with 6 adapter plugs, USB cable
  • Software: Adobe Photoshop Lightroom (free download after registration of camera), Leica T app for iOS (remote control and image transfer, free download from Apple App-Store)
  • Cost: Under $2,000 for body

  www.leica-camera.com

Dr. Andreas Kaufmann, Chairman of the Supervisory Board of Leica Camera AG, introduces the Leica T-System:

Tags: ,

Sophia Loren at Tribeca Film Festival

FDTimes-SophiaLoren-IMG_7654Sophia Loren received a standing ovation at the Tribeca Film Festival screening tonight of the “Human Voice,” a short directed by Edoardo Ponti, with cinematography by Rodrigo Prieto, ASC, AMC. Ponti and Prieto met for the first time at Tribeca last year, so it was a fitting anniversary for both to be present this evening. It was a magnificent performance in a beautifully crafted, meticulously directed, gorgeously photographed film. During the Q&A, Edoardo was asked whether it was emotional directing his mother in a film she wanted to do all her life. “I cried seven or eight times a day,” he said.

More information on the production here.

Technical notes: Canon C500 cameras with Codex Onboard S Plus Recorders shooting in 2K 12-bit, with Canon zooms and Cooke primes.

Edoardo Ponti and Sophia Loren at Tribeca Film Festival for the "Human Voice."

Edoardo Ponti and Sophia Loren at Tribeca Film Festival for the “Human Voice.”



Tags: , ,

Scorpiolens Anamorphic Video

ServiceVision presented a 7 minute 30 second video at NAB, “Walk in Barcelona.” Shot with their Scorpiolens 35, 75 and 100 mm 2x anamorphic lenses, with a hauntingly beautiful score by Jordi Solans and Narcis Coromines. Here it is on Vimeo.

More info at Servicevision.es



Tags: , ,

Toshiba 4K laptop

Toshiba-4K-composite



Toshiba’s new 3840 x 2160 UHD SatelliteP55t goes on sale next week in the US.

  • 15.6-inch diagonal Ultra HD touchscreen display
  • native 3840 x 2160 resolution – 282 PPI (pixels per inch) display. (In comparison, my MacBook Pro 15″ Retina display is 288 x 1800 resolution at 220 ppi.)
  • Color management is licensed by Technicolor
  • Iincludes a full version of Adobe Photoshop Lightroom 5 .
  •  Intel i7 quad core processor
  • Up to 16GB of 1600MHz DDR3L memory
  • AMD Radeon R9 M265X graphics card with 2GB GDRR5 video memory.
  • 1TB hard drive
  • 4x USB 3.0 port
  • UHS-II SD card slot
  • 802.11ac Wi-Fi
  • HDMI port capable of 4K output
  • Optional built-in Blu-ray re-writable drive .
  • Stereo speakers by Harman KardonA
  • Available on April 22, 2014 direct from Toshiba at toshiba.com/us for $1,499.99 MSRP.

photo above is a composite of SatelliteP55t and image from RED NAB Fashion Runway.

Tags:

Mark Forman’s NAB 2014

The following things attracted Mark Forman’s attention at NAB 2014.

image002-Forman

Mark Forman doing anamorphic tests for Film and Digital Times with my Sony Alpha 7R at NAB 2014

New Sony Alpha 7S – 4K and 490,000 ISO

W6A2813-Forman

MOVI 5 This new stabilizer is for use with smaller and lighter cameras such as the Panasonic GH4 and the Sony Alpha 7S as well as DSLRs.

MOVI 5. This new stabilizer is for use with smaller and lighter cameras such as the Panasonic GH4 and the Sony Alpha 7S as well as DSLRs.

W6A2247-Forman

ARRI 9.5-18 mm UWZ Zoom. I like wide lenses and the ARRI 9.5-18 is rectilinear which is hard to do. Good for confined spaces, aerials, POVs, car shots.

W6A2244-Forman

Cooke 2X Anamorphic set

W6A2316-Forman

Phil Keoghan, host of “The Amazing Race,” talks about using the Sony F55 on his recent film “Le Ride,” retracing the route of the 1928 Tour de France with a vintage bicycle (no gears).

Sony F55 Doc Setup Sony has now addressed most markets with the F5/F55 and now has a product for documentary shooters who previously have used ENG/EFP cameras.

Sony F55 Doc Setup. Sony has now addressed most markets with the F5/F55 and now has a product for documentary shooters who previously have used ENG/EFP cameras.

W6A2977-Forman W6A3158-Forman

W6A2967-Forman

Cineflex 5 4K+ with Red or other 4K cameras.

W6A2828-Forman

Solid Camera Products (Carlos Acosta), Sony E to PL and Various camera plates to adapt anything to anything including a mount for the Odyssey 7Q.

W6A3305-Forman

PL to E mount adaptors from Solid Camera, and HotRod Camera, MTF and Vocas.

W6A2915-Forman

Angenieux 16-40mm Optimo Style

W6A2723-Forman

Panasonic’s Mr. Miyagi introduces new 4K camera, 35mm sensor, PL mount

W6A3450-Forman

Panasonic 4K GH4 MFT.

W6A3532-Forman

Andra Motion Focus uses a sensor on the talent and a transmitter box. https://www.youtube.com/watch?v=h_YuE7TVGb8

W6A3538-Forman W6A3535-Forman

W6A3521-Forman

Anamorphic lenses from Scorpio – Service Vision

Tags:

Oli Laperal’s NAB Report

By Oli Laperal Jr.

DSC04650

Opening “bell” at NAB 2014. Let the games begin.

The omnipresence of 4K and 8K systems over HD at NAB reminded me of the HD-over-SD transition a dozen years ago.  As in the past, there are no shortage of nay-sayers.  But the quantum leap of technology offering price points lower than previous systems, coupled with transparent ease of intuitive workflow, and Thunderbolt 2 up to 20 Gb/s via fiber optics, make the transition to UHD natural and obvious. This applies to cameras, switchers, routers, mini converters, connectors, processors, compression algorithms, and monitors. Welcome to more K.

NAB 2014 showed more than a dozen 4K/UHD cameras, some with price tags of under $5,000, a few under $2,000, whereas GoPro’s 4K Hero 3+ sells for under $400.  I would not be surprised to see 4K cameras included free in better smart phones in the coming years.  Many UHD cross-converters from respected manufacturers sell for a mere few hundred dollars.

Sprouting cottage industries are using carbon fiber, lithium polymer (LiPo) batteries and gyro gimbals.  It seems flying drones with gyro stabilized HD micro cameras, guided by multiple GPS units, were everywhere.   Substituting arm bars instead of an airframe resulted in 20+ vendors touting handheld gyro stabilized brushless gimbal camera frames. All sorts of sliders for smooth camera movement were plentiful.

Anamorphic lenses, which were once the exclusive domain of rental-only facilities for the exclusive use of top studio feature films, are now offered to everyone by Angenieux, ARRI/ZEISS, Cooke, Servicevision/Scorpio, Vantage/Hawk, and others.

DSC04830-laperal-fdtimes DSC04829-laperal-fdtimes

NHK’s 8K camera was an unbecoming behemoth weighing more than 200 pounds while tethered with 32 coax BNC cables only a few years ago.  Today, NHK’s 8K camera is only 2 pounds and fits in one’s palm. NHK’s timeline includes 8K test broadcasts in 2016, and full 8K operation by 2020, in time for the Tokyo Olympics.

Laser powered projectors offer much increased brightness. Ted Schilowitz presented the Barco–which reminds me of Cinerama of decades past.  Christie and NEC also showed laser powered large venue projectors, perhaps to the chagrin of cinema exhibitors who reminisce of xenon projectors past that lasted almost a lifetime, not outdated within a few short months.

H.265 HEVC for broadband offers 10 bit, 8K resolution, better color and sound, more than twice the delivery payload of H.264.

The Technical Summit on Cinema dealt with:

  1. Understanding the human vision system
  2. The new post process, from camera to consumer
  3. The future of Cinema.
  4. ACES (Academy Color Encoding System)
  5. The “perfect” 2D/3D screen
  6. 3D Light Field camera, etc.
  7. IMF. Interoperable mastering format
  8. Laser illuminated projectors.  Much brighter than xenons
  9. Distributive creativity
  10. High dynamic range.
  11. New technologies
  12. Second screen and the cinema.

Emmanuel Lubeski, ASC, AMC and other crew of “Gravity,” in person and via Skype conferencing, discussed the challenges of doing the multi-award winning film, and how he interacted with the Director and other keys.

Cinematographer-turned-Director Wally Pfister discussed the film “Transcendance” to a packed house.

Camera Dept

 DSC04629

AJA Cion. 4K S35 APS-C sensor, global shutter, 12+ stops of dynamic range, PL lens mount, 3G and Thunderbolt connectors, Raw data.

ARRI Amira. A documentary style HD/2K camera intended for single shooter use, no Arriraw, capable of 200 FPS.  The Alexa XT has a new software update to further enhance ARRI’s top feature film camera with 4:3 open gate sensor, 3.4K Arriraw resolution, etc. A large percentage of feature films nominated for best cinematography and best picture at the Oscars were shot on the Arri Alexa camera using Arriraw.

DSC04701

Blackmagic Design. Ursa 4K camera with 10” monitor, S35 global shutter, Raw / ProRes data recording,  interchangeable lens mount.

DSC04675



Or choose BMD’s new Studio 4K camera. Micro four thirds lens mount, 10” VF, bi-directional optical fiber.

Canon updates software for the C100, C300 and C500 4K cameras.  Canon announced the manufacture and delivery of their 100,000,000th EF lens.

For-A 4K Super Slo-Mo camera does 4K up to 900 FPS.  11 stops of dynamic range, Raw.

JVC. GY-HM890  HD camcorders, streams via Wi-Fi or a LTE modem. 4 styles of 4K cameras and prototypes: wifi, HD, DSLR and handheld.

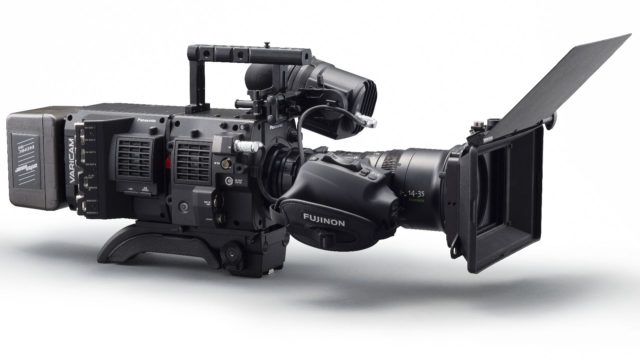

Panasonic. 4K Varicam 35, S35 sensor, PL lens mount, 14 stop dynamic range, 240 FPS in HD.

Lumix DMC-GH4 DSLR. 4K camera with 4K recorder, micro four thirds 16 MP MOS sensor,

RED Digital showed various camera upgrades paths, up to the Dragon 6K sensor.  RED also showed how 6K Raw Dragon images from their mini stage fashion show printed nicely onto extra large posters.  The RED theater showed interesting 6K Raw footage with HDR.

Sony: Upgrades the F-65, F55 and F5 cameras. Shoulder mount/ENG cradle for F5/55. A7s DSLR.  Palm size, full frame sensor, 4K video, 120 FPS, ISO 409,600, OLED VF, etc.

Lenses

Angenieux: New Optimo zoom lenses: DP 25-250 mm  T3.5,

Optimo Style 16-40 T2.8, and the Optimo Style 30-76 T2.8

Arri UWZ 9.5-18 mm T2.9 rectilinear wide angle zoom

Canon Cinema EOS prime lenses

Leica Summilux-C T1.4 and Summicron-C T2.0 primes.

Schneider Cine-Xenar III prime lenses.

Sigma. 35, 50, and 85 mm F1.4 prime. 18-35 mm F1.8 zoom lens.

Tokina 11-16 mm T3, 16-28 mm T3 wide angle zoom lenses.

Zeiss CZ.2 15-30 mm T2.9 full frame zoom lens.

Lights

Aadlyn. Stronger LED cluster spotlights.

K5600. 9K Alpha flat HMI.

Litepanels. Inca tungsten LED     Sola daylight LED.

Nila: Zaila, Varsa, Boxer and SL LED cluster lights.

Post

AJA. 4K and HD I/O via Thunderbolt 2.0. Capture and playback.

Assimilate Scratch Ver 8: Dailies system for versioning, coloring, conforming and finishing.

DSC04692

BlackMagic Design, whose booth was always packed: Cintel film scanner, full features with Da Vinci Resolve. <$30K. UltraStudio 4K capture and playback via Thunderbolt 2 6G-SDI.

Cinema 4D. updated 3D modeling, animation, 3D motion design, visual effects software.

Monitors / on-board recorders

Atomos. Shogun 7” 4K recorder and playback.

Codex onboard for Panasonic 4K Varicam

Convergent Design Odyssey 7Q. Records and playback 4K Raw.

Transvideo Starlite 5″ ultra-slim OLED touch-screen monitor

Others

Anton Bauer and Sachtler introduced new Lithium-Ion batteries

and intelligent fast chargers..

BMD Atem 4K switchers.

Corning offers fiber optic connectivity at 20 Gbps, USB 3.0  at 5 Gbps. Denz and Wooden Camera showed PL lens mount modification for the new BMD 4K camera.



I stayed a few days after NAB 2014 to play tourist and see Las Vegas’ latest attraction: High Roller, the world’s highest ferris wheel observation deck.

DSC04993

DSC04987 High Roller Ride, 40 pax per Gondola

Oli Laperal Jr runs RSVP Film Studios (www.rsvpfilm.com) in the Philippines, with film production and rental associates in various Southeast Asian countries.   Oli can be reached at: olilaperaljr (at) gmail.com



Tags:

Best Unexpected Product of NAB

DSC03300-FDTimes

Sometimes the most unexpected thing pops up at NAB, and success surprises even its own manufacturer. True Lens Services rolled out a newly re-housed Cooke Series 1 to go with their updated cam-focus PL mount rehoused Panchro series 2 and 3 lenses.

But the buzz was also all about their new PL rear lens caps in clear polycarbonate and an O-ring to keep it on. How many times do our regular PL caps fall off in the case or in our hands? These things grip nicely, don’t come off, and have a wide bottom so you can usually rest the lens standing up on a table or camera cart. They come in all kinds of colors — but clear is cool because you can see what’s inside.

Rental houses were buying these TLS PL rear caps by the bucket, presumably with custom logos.

FDTimes doesn’t really bestow plaques, statues or NAB top something awards…but a little, clear cap  got our attention.

DSC03296-fdtimes

Tags: , , , ,

Angenieux Style

Angenieux-Style-fdt

Angenieux’s stylish annual NAB party for distributors, customers, and rental houses took place Tuesday night at Tryst. The usual notable suspects were twirling on the dance floor,   enjoying the ambiance and fine dining, and watching Yoginis floating by in bubbles: Denny Clairmont, Otto Nemenz, Tng Sieu Moi, Robert Keslow, and many more. Pierre Andurand, President of Thales Angenieux, gave a welcoming speech. He said that Angenieux is developing new products and  achieving its goal of delivering products on time.

The distributor award of the year was presented to Jebsen Managing Director Maximilian von Stillfried.

Dominique Rouchon, International Sales Director, said that customers were the source of inspiration in developing successful Angenieux products. “Competition is getting stronger, but that is not a worry because competition is healthy and Angenieux has a talisman.” (THALESMAN!). “The Angenieux talisman is the customer–the cinematographer. Angenieux is a brand with a lot of affection,” It is a very unique brand–with a lot of style, and a new line of lenses, named “Angenieux Style.”



Tags:

Panavision Primo 70

Primo-70

Panavision officially announced their long-awaited Primo 70 series lenses — for 35mm digital motion picture cameras.  Presented in proof of concept Powerpoint in a SMPTE paper last year for a 70mm camera, these lenses are now offered for specially Panavised 35mm motion picture cameras with new Panavision 70 mount: ARRI Alexa, RED Dragon, Sony F55, Phantom 65.

I have seen some of these lenses projected. They are superb. The flange focal depth is shorter than PL, which enables the design to be around the same size and weight as current 35mm Panavision Primos.

So this is an interesting wrinkle in lens design: never mind fighting for a few extra millimeters of 35mm format image circle–just go to the next big major motion picture format–70mm–and let the sensors grow in size.

Some specs from Panavision:



4P27 4P35 4P40 4P50 4P65
FOCAL LENGTH 27 35 40 50 65
T-STOP 2.0 2.0 2.0 2.0 2.0
CLOSE FOCUS (in) 14 14 14 16 20
CLOSE FOCUS (mm) 356 356 356 406 508
FRONT DIAMETER (in) 4.44 4.44 4.44 4.44 4.44
FRONT DIAMETER (mm) 112.8 112.8 112.8 112.8 112.8
4P80 4P100 4P125 4P150 4P200
FOCAL LENGTH 80 100 125 150 200
T-STOP 2.0 2.0 2.0 2.0 2.8
CLOSE FOCUS (in) 24 30 36 48 48
CLOSE FOCUS (mm) 610 762 914 1219 1219
FRONT DIAMETER (in) 4.44 4.44 4.44 4.44 4.44
FRONT DIAMETER (mm) 112.8 112.8 112.8 112.8 112.8
4P250 4PZM 4PZT
FOCAL LENGTH 250 70-185 200-400
T-STOP 2.8 3.5 4.5
CLOSE FOCUS (in) 48 60 78
CLOSE FOCUS (mm) 1219 1524 1981
FRONT DIAMETER (in) 4.44 4.44 4.98
FRONT DIAMETER (mm) 112.8 112.8 126.5







Tags:

RED Runway

DSC02771-RED-fdtimes DSC02614-RED-fdtimes

RED once again wowed with creative, imaginative NAB booth presentation — a full-on fashion runway show with models…photographed of course RED 19 megapixel cameras with cool portrait-landscape mode tripod cradle.

New NAB stuff

Lots of new NAB gear that didn’t make it into FDTimes April Edition:

  • AJA announces 4K 35mm camera(s).
  • Blackmagic announces 4K 35mm camera(s).
  • Blackmagic announces Cintel 4K film scanner.
  • Panasonic announces 4K 35mm with Codex RAW back.
  • ARRI Studio mattebox has a very cool tilt feature to get rid of annoying reflections bouncing off filters.
  • Prototype RED remote 2-axis remote
  • Angenieux showing new Style 25-250 with /i lens data displayed on Transvideo monitor: real-time depth of field read-out

lots more…



Tags:

Sony F55 ENG & Doc Dock

_W6A2311

Photo: Mark Forman



Sony introduced a totally new F5/F55 shoulder dock. From the people who brought you many shoulder-resting ENG camcorders—this kit provides familiar camcorder functions to the F5/F55. Basically, it’s a base and rear that attaches to the bottom of the camera. It gets power and signals through the rear multi-pin connector where the AXS-R5 Recorder previously plugged in. The top handle gets a redesign. The words “modular, unibody, and convertible” come to mind. A dock for documentaries and ENG: ENG & DOC DOCK.

All conventional operations of Sony Camcorder

  • Wireless Audio is supported
  • Only 5 minutes to attach
  • New Handle with Mic holder
  • Wireless Audio (Analog or Digital)
  • Audio Control Panel
  • Sliding shoulder pad – Amira-like
  • Gain/BARS/White Three Assignable Buttons in front, Audio Monitor Select

The doc dock kit has front controls for:

  • Rec Start/Stop, Mic Volume, Shutter, Auto WB
  • Gain H/M/L, White Balance A,B, Preset, Assignable  buttons, Monitor Select switch
  • Audio control
  • Connections at the rear provide:
  • XLR 5pin Audio OUT
  • XLR 3pin Audio IN x2 (AES/EBU, Line, Mic, +48V)
  • Headphone jack
  • Hirose DC 12V OUT
  • XLR 4pin DC IN
  • Connections in front
  • XLR 5pin Audio IN
  • Headphone jack

Accessory connectors:

  • Hirose DC 12V OUT
  • D-TAP DC 12V OUT

Wireless audio receivers will be accommodated onboard.

www.sony.com/35mm NAB Booth C11001

Tags: , , ,

Sony α7s 4K Camera

Sony-A7S-DSC02007-fdtimes

My favorite part of Sony’s annual NAB press conference is the new product  unveiling. This year, it was Mr. Shigeki Ishizuka, Sony Deputy President of Imaging Products (he’s in charge of still and motion picture cameras) who announced the new Sony α7s camera. Saying that the two worlds of consumer and professional imaging are merging, he introduced this third member of the Alpha 7 line (joining the α7 and α7r). Like its siblings, the α7s is a mirrorless camera with a 24x36mm CMOS sensor and E-mount (18mm flange focal depth.)

But there are big differences. This camera’s 12.2 megapixel sensor has a sensitivity up to an astonishing ISO 409,600.

It shoots stills and UHD4K video: 3840 x 2160–to be recorded to an external device.

Steadicam Tango, Movi, stabilizer and other camera operators were imagining the possibilities when this camera is released this summer.

Sony-A7S-DSC02008-fdtimes







Tags: , , ,

FDTimes NAB Booth C10006

FDTIMES-NAB-Booth-C10006



Setting up at NAB 2014. You’ll find us when the show opens on Monday under the Film and Digital Times Airstar balloon in Booth C10006 — next to Sony, across Band Pro and Pole Cam.

Tags: , ,

ARRI Ultra Wide Zoom 9.5-18 mm

ARRI-UWZ-fdt



More details on ARRI’s UWZ 9.5-18 mm T2.9 Ultra Wide Zoom. But first some thoughts on where it might be used, and on what kind of scenes: underwater, aerials, POVs from trains, planes, automobiles. The 8R is a wonderful lens, but sometimes we have the irresistible urge to zoom in slightly or change focal length during the shot–especially when the lens is mounted in a rig or remote. VFX and plate shots. A low angle gliding shot looking forward if anyone is thinking of a sequel, “Son of The Shining.” “Here’s UWZ!”

  • Image circle of 34.5 mm
  • Very low image distortion even at 9.5mm
  • Distortion less than 1% at 9.5 mm and less than 0.1% at 18 mm (straight lines stay straight) Due to a new multi
  • Telecentric optical design – uniform field illumination, no shading or vignetting
  • Almost no image breathing
  • Entrance pupil position stays constant over the entire zoom range
  • LDS for lens metadata
  • Matches other ARRI/Fujinon or ARRI/ZEISS Lenses
  • Available in ARRI PL LDS or Canon EF mount
  • Lens Mount                                                               PL-LDS or Canon EF
  • Aperture
                                                                    T2.9
  • Focal length                                                              9.5-18mm
  • Close Focus                                                               0.55m/1.8ft from image sensor
  • Mechanical length                                                   352.6mm/13.9in
  • Front Diameter                                                        156mm or 134mm
  • Max. diameter excluding front and gear:             112mm
  • Weight                                                                       4.8kg/10.6lb

The UWZ 9.5-18/T2.9 will be delivered with a detachable lens support, zoom lever and interchangeable EF mount. Meter and Feet scales are integrated in the lens barrel.

Expected to ship in May 2014. Price around 38,000 Euros.

www.arri.com











Tags: ,

Angénieux Style & Servos

DSC02402-FDTimes

Angénieux Style Zoom Lenses

Angénieux introduces a new line of lenses and the Angénieux Servo Unit (ASU) at NAB. The new Optimo Style series will consist of 3 zooms: 2 handheld, 1 full size.

The 16-40 and 30-76 are lightweight at 4.2 lb each and well-balanced for shoulder or handheld shooting.

The 25-250 is an all-purpose, classic-range zoom for most production situations. It is a 10x zoom with a wide angle of 25 mm, and weighs 16 lb. It was presented at IBC 2013 with a temporarily name “25-250 Optimo DP.”

The Style series of zooms are designed to be fully compatible with the latest and next generation of digital cameras, as well as spinning-mirror cameras, providing the  look of the Optimo line at an affordable price. In other words, there is no protruding rear element as there was on the Optimo DP zooms.

The Optimo DP line (30-80 and 16-42) introduced in 2008 and 2009 is being discontinued, except as 3D kits.

Of course, the Optimo Cine lenses (15-40, 28-76, 45-120, 19.5-94, 28-340 and 24-290) continue to be manufactured.

Optimo Style zooms are compatible with existing Optimo accessories: 1.4x and 2x extender, DSLR mount, and Wide Angle Attachment 0.75x (for Optimo Style 16-40 only). Easily interchangeable mounts will be available for PL, Canon EF, Panavision cameras.

Optimo Style lightweight zooms 16-40 and 30-76 will be offered with or without the optional ASU Angenieux Servo Unit.

An Angénieux executive said, “The new Optimo Style lenses inherit the virtues of our Optimo Cine lenses. The rise of multimedia viewing and trend to Ultra definition television is escalating the demand for high quality motion picture content. More productions are  demanding a cinematic look with 4K quality and equipment that’s adaptable to a large variety of cameras, configurations and budgets.”

ASU Angénieux Servo Unit

Angénieux 16-40 and 30-76 Optimo Style lightweight zooms will be offered with or without the optional ASU—which provides control of zoom, focus and iris.

  • The ASU works with broadcast remote handles, cinema remote controls, and existing wireless remotes like Preston or others (on request).
  • It generates lens metadata based on the  Cooke /i technology protocol.
  • The ASU is not a rocker-zoom control handgrip. It weighs 1.5 lb / 0.7 kg.
  • The ASU and lenses are matched and calibrated at the Angénieux factory.
  • The ASU will also be available as an option for the Optimo Lightweight Cine Zooms: Optimo 15-40, Optimo 28-76, and Optimo 45-120.

The Optimo Style line will be available around Summer 2014. As announced at NAB 2013, the first Angénieux 56-152 2S anamorphic zooms have been delivered in United States, Asia and Europe.

www.angenieux.com

DSC02403-FDTimes



Tags: , , ,

Anamorphic Screenings at NAB

Servicevision

Servicevision will screen their Scorpiolens 2x Anamorphic short “Walk in Barcelona” at NAB on Wed. April 9 from 10am – 6pm in room S107, every 2 hours.

Their 35, 40, 50, 75, and 100 mm Scorpiolens 2x anamorphics will be on display in their booth, C10542.

Cooke Optics

Cooke Optics will show 4 shorts shot with their anamorphic lenses in Paris, London, New York and Toronto on a monitor in their booth C6143 during NAB. Now also on Vimeo. Their 32, 40, 50, 75, and 100 mm 2x anamorphics will be shown.

ARRI/ZEISS

ARRI/ZEISS Master Anamorphic 35, 40, 50, 60, 75, 100 (shipping), and 135 mm (ships in July) 2x lenses will be shown at ZEISS C9042 and ARRI C4337. ARRI will probably show footage.

Angenieux

The Angenieux Optimo 2x Anamorphic 56-152 mm T4 zoom has begun to ship.
Footage will probably be shown in the Angenieux Booth C 7419.

Tags: , ,

Canon 17-120 T2.9-3.9 w/ Servo Grip

Canon_cineservo_topgrip-fdt

This is Canon’s first 35mm zoom lens with servo handgrip for documentary, handheld or ENG.

Canon’s 17-120 mm T2.9-3.9 zoom seems impossibly small for a lens that can deliver superb image quality with so much range.

The servo focus/iris/zoom handgrip detaches with 3 screws. When re-installed, there’s no need for manual re-alignment.

I tried out a prototype 17-120 at AbelCine just as we were going to press, and took these photos with the help of Jeff Lee, AbelCine, and Ryan Kamata, Canon.

The lens motors inside the handgrip are quiet and extremely quick. The focus barrel can whip from M.O.D. (Minimum Object Distance) to infinity in 1.6 seconds. The rocker switch in the handgrip is comfortable, sensitive, and offers smoothly feathered starts and stops. You can zap zoom in a blazingly quick .5 seconds, or dial it down to 300 seconds for that slow zoom in title sequence landscape shot.

Lens communicates with camera a number of ways. There’s a familiar broadcast lens style 12-pin serial connector. Cooke /i Technology metadata is supported when using /i equipped PL mount lenses. An added benefit of Cooke /i on PL lenses is that its contacts can also power the focus, iris and zoom motors. Canon Cinema EOS lens data is also enabled, providing power, lens information as well as image compensation of shading and geometry when using  Canon EF mount lenses.

One of the most thoughtful touches is how the focus marks are engraved on the slanted part of the lens focus barrel, so you can see the distance with your left eye while shooting.

Canon EF Mount Model: CN7x17 KAS S/E1
PL Mount Model: CN7x17 KAS S/P1

  • Focal Length: 17-120 mm
  • Zoom Ratio: 7x
  • Maximum Aperture: T2.95 at 17-91 mm
  • ramp to T3.9 91-120 mm
  • Iris  Blades: 11
  • M.O.D: 0.85 m / 2.8’
  • Macro Function: Push button control
  • Front Diameter: 114 mm
  • Approx. Weight: 2.9 kg / 6.4 lb
  • Approx Width: 174.2 mm
  • Approx Height: 125 mm
  • Approx Length (EF): 262.9mm
  • Approx Length (PL): 254.9 mm
  • Focus Gear Pitch (forward / rear): 0.8 mm / 0.5 mm
  • Zoom Gear Pitch: 0.5 mm
  • Iris Gear Pitch: 0.4 mm
  • Fastest Focus Barrel Travel end to end: 1.6 sec
  • Fastest Zoom Barrel Speed: .5 sec
  • Slowest Zoom Barrel Speed: 300 sec
  • Metadata /i Technology
  • Canon EOS Lens Data
  • Angle of View
  • Aspect ratio: 1.78:1
  • (Sensor Dimensions: 24.6 x 13.8 mm)
  • At 17 mm: 71.8°x 44.2°
  • At 120 mm: 11.7°x 6.6°
  • Aspect ratio 1.9:1
  • (Sensor Dimensions: 26.2 x 13.8 mm)
  • At 17 mm: 75.2°x 44.2°
  • At 120 mm: 12.5°x 6.6°
  • Object Dimensions at M.O.D.
  • Aspect ratio 1.78:1
  • (Sensor Dimensions: 24.6 x 13.8 mm)
  • At 17 mm:  86.3 x 48.4 cm
  • At 120 mm: 12.0 x 6.7 cm
  • Aspect ratio 1.9:1
  • (Sensor Dimensions: 26.2 x 13.8 mm)
  • At 17 mm: 92.1 x 48.5 cm
  • At 120 mm: 12.7 x 6.7 cm
  • (M.O.D. is Minimum Object Distance from Image Plane)



Tags: , ,

32 New Hawk Anamorphics

DSC01515-Peter&Wolfgang-FDTimes

Things have been too quiet at Vantage. With all the recent news of new anamorphic lenses from A through Z (Angenieux, Cooke, Scorpio, ZEISS/ARRI) – the company in Weiden building Hawk anamorphics for the past 20 years has been uncharacteristically silent.

Peter Martin and Wolfgang Baumler, above, were smiling in Paris at Micro Salon a couple of months ago, but not saying anything.

Now we know why. Credible sources have confirmed with FDTimes (and Vantage continued smiling) that a massive launch of 32 totally new models of Hawk anamorphic lenses, in two sets, will be announced sometime this year. These two new sets are expected to include front anamorphic zooms, macros, and teles – intended for major motion picture productions that need many choices of focal lengths, apertures, and sizes.  As with previous Hawks, the new sets are designed and built by the same team in Weiden, Germany, and will have similar 2x anamorphic characteristics. Most of the sets will be rented through Vantage Film and their partners.
