Vantage One 120mm T1 at Keslow

120mmT1Keslow Camera has received the new 120mm Vantage One T1 spherical prime lens.  This is the ninth focal length in the Vantage One wide aperture set, available for rental.

  • Focal Length: 120mm
  • Aperture: T1.0
  • Close Focus: 2’6″
  • Front Diameter: 156mm
  • Weight: 8.4 lb

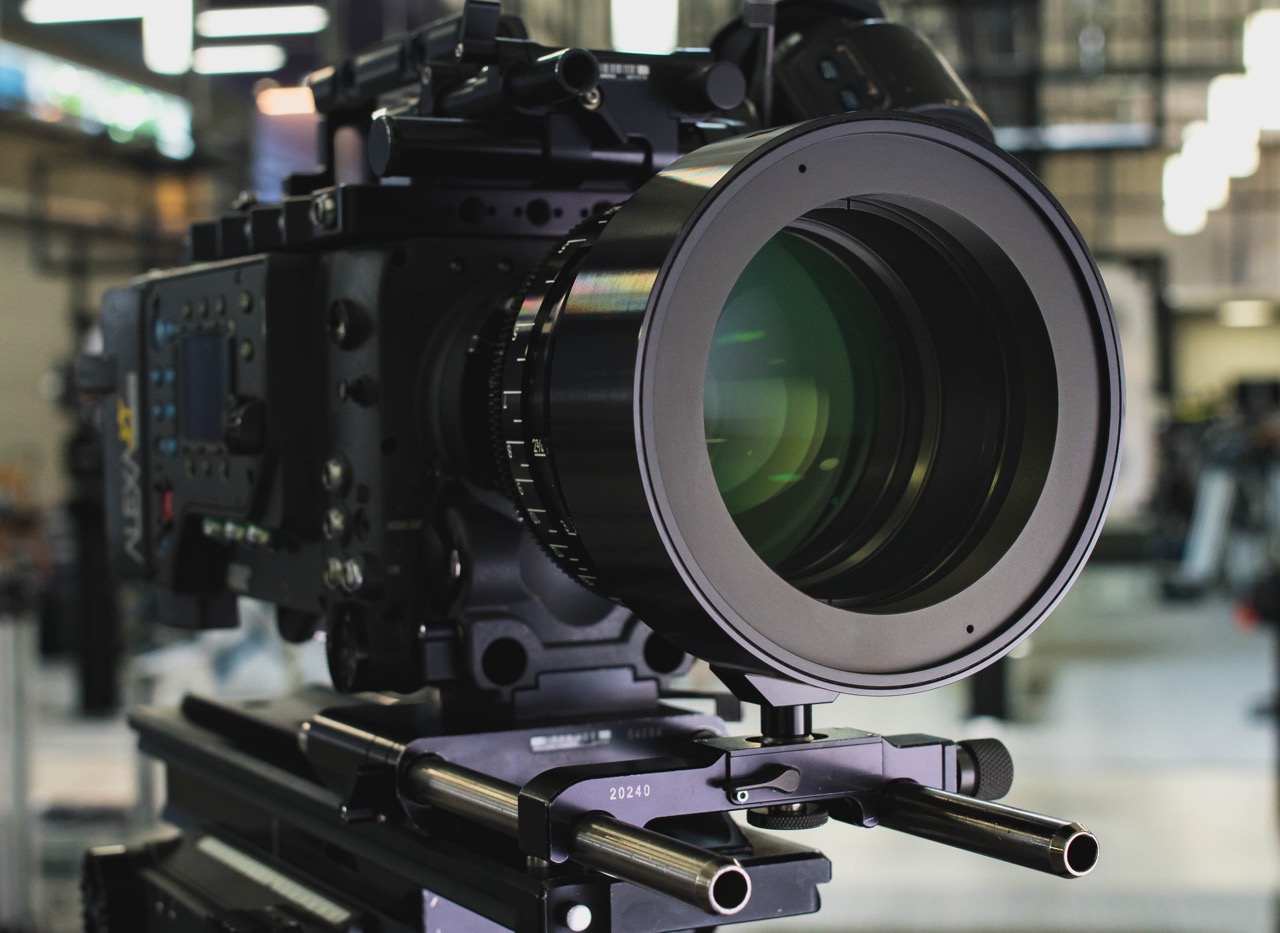

120mmT1XT2 (1)

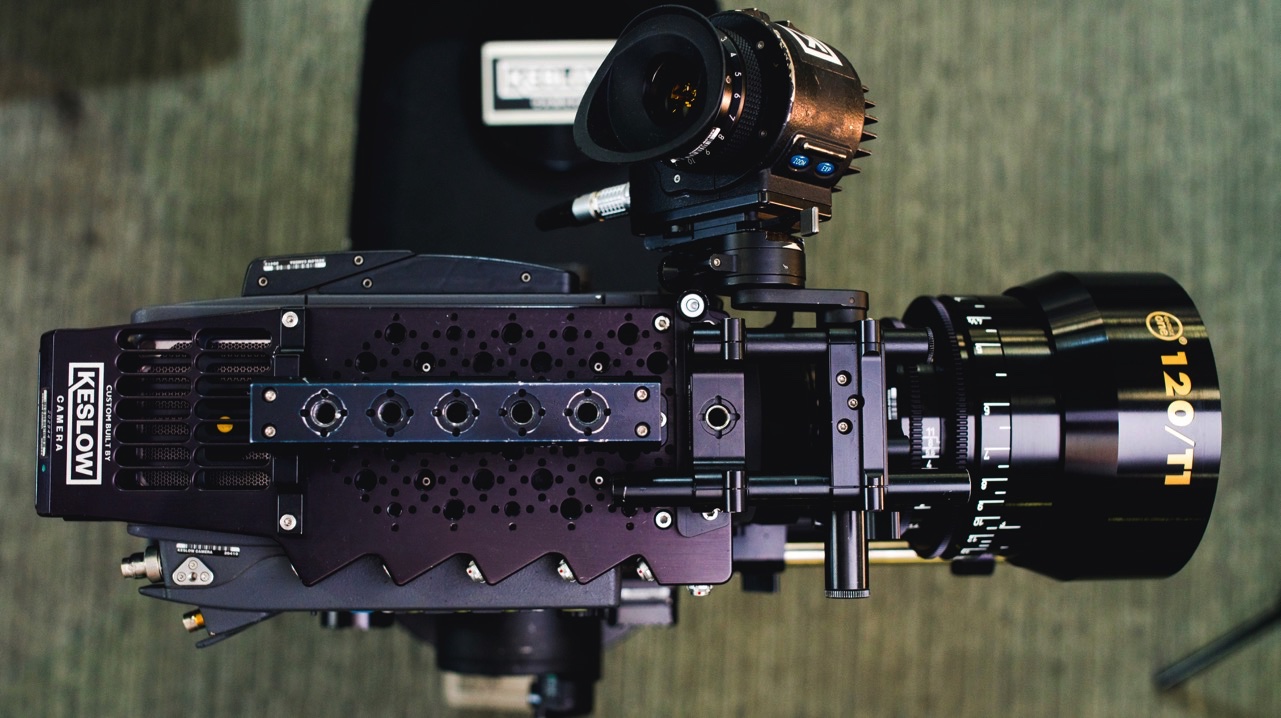

120mm birds eye view updated

Photos above by Keslow Camera

The Vantage One set now consists of: 17.5, 21, 25, 32, 40, 50, 65, 90 and 120 mm, all T1, and all close-focusing.

When first introduced at Micro Salon 2013 in Paris, Peter Martin described these lenses as having “multiple personalities.” From T2 to T11, Vantage Ones have a look similar to most modern lenses. At T1.4, the look takes on a “more forgiving” and interesting quality. Wide open, at T1, Vantage One lenses open up a whole new world of extremely shallow depth of field, with a gentle, subtle, silky creaminess. Maybe a good way to describe the look is to remember the original Leica Noctilux 50 mm T1 still lens circa 1976. Daniel Pearl, ASC described “the very shallow depth of field as a unique look with the very selective focus at T1.”

Vantage One lenses are among the smallest cine lenses available. They are lightweight, close-focusing and have familiar, durable Vantage mechanics, with witness marks on the same plane as the scales for parallax-free focus-pulling.

They are almost telecentric. There’s a long distance from the rear element to the sensor, so light rays are almost parallel. This results in less color fringing and extremely even field illumination (no shading) to the corners of the frame.

Update: Vantage Film has the new 120mm T1 in their rental inventory.  Camtec is expecting theirs  soon.



Vantage-One-Setfdt



Focal Length Stop Minimum Object Distance Angle of View Weight Front Diam.  Length
17.5 mm T 1 0.25 m 10″ 71.5° 1.9 kg 4.2 lb 110 mm 152 mm
21 mm T 1 0.25 m 10″ 62.2° 1.8 kg 4.0 lb 110 mm 142 mm
25 mm T 1 0.25 m 10″ 53.6° 1.6 kg 3.5 lb 110 mm 124 mm
32 mm T 1 0.25 m 10″ 43.5° 1.5 kg 3.3 lb 110 mm 126 mm
40 mm T 1 0.34 m 1′ 2″ 34.9° 1.5 kg 3.3 lb 110 mm 126 mm
50 mm T 1 0.34 m 1′ 2″ 28° 1.6 kg 3.5 lb 110 mm 124 mm
65 mm T 1 0.34 m 1′ 2″ 21.5° 1.6 kg 3.5 lb 110 mm 124 mm
90 mm T 1 0.5 m 1′ 8″ 17.2° 2.0 kg 4.4 lb 128 mm 142 mm
120 mm T 1 0.75 m 2′ 6″ 11.9° 3.8 kg 8.4 lb 156 mm 174 mm
