Metal Jacket and PL Mount for Leica SL


Dante Cecchin’s Lockcircle Company sits above the shores of Lake Como, steps from the world-famous Hotel Villa D’Este and 10 minutes via Riva Aquarama speedboat to George Clooney’s lakeside estate.

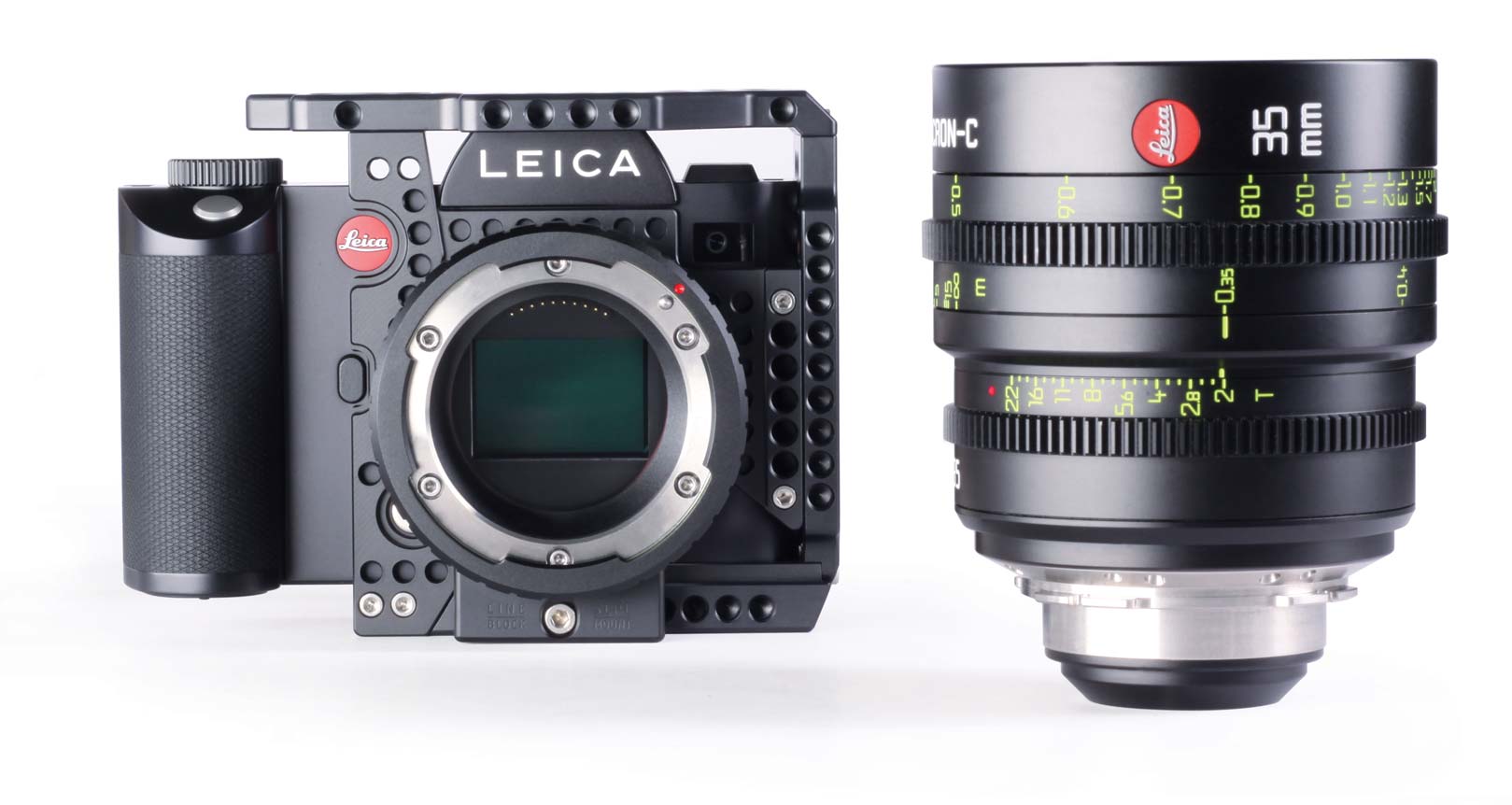

Dante is a Director, Cinematographer, Photographer and Master Craftsman/Designer. When he sees the need for products that do not exist, he builds them–beautifully. His latest creation will premiere at Cine Gear in LA. It’s the Metal Jacket Cinematic Production Cage for Leica SL (Typ 601).

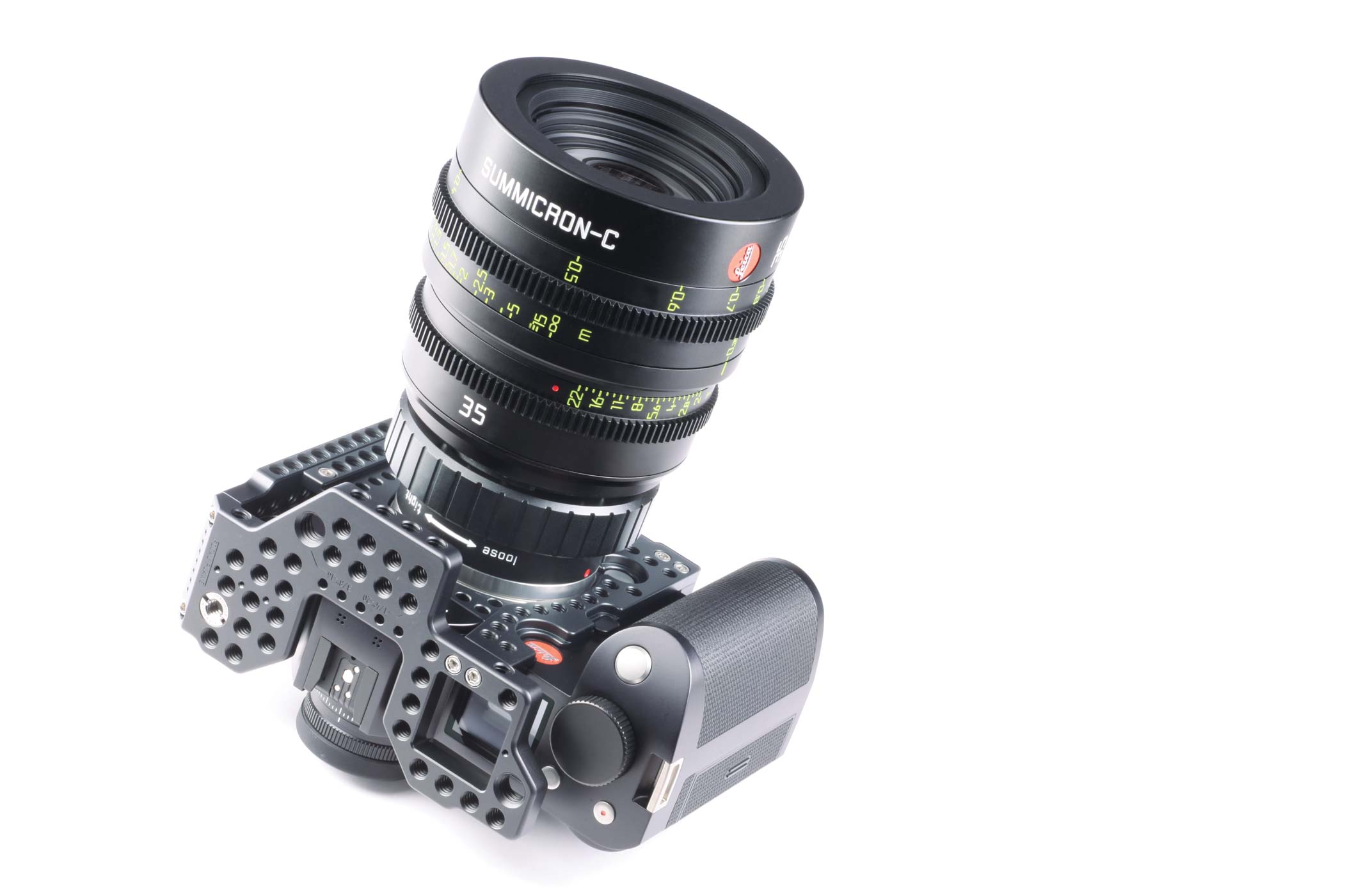

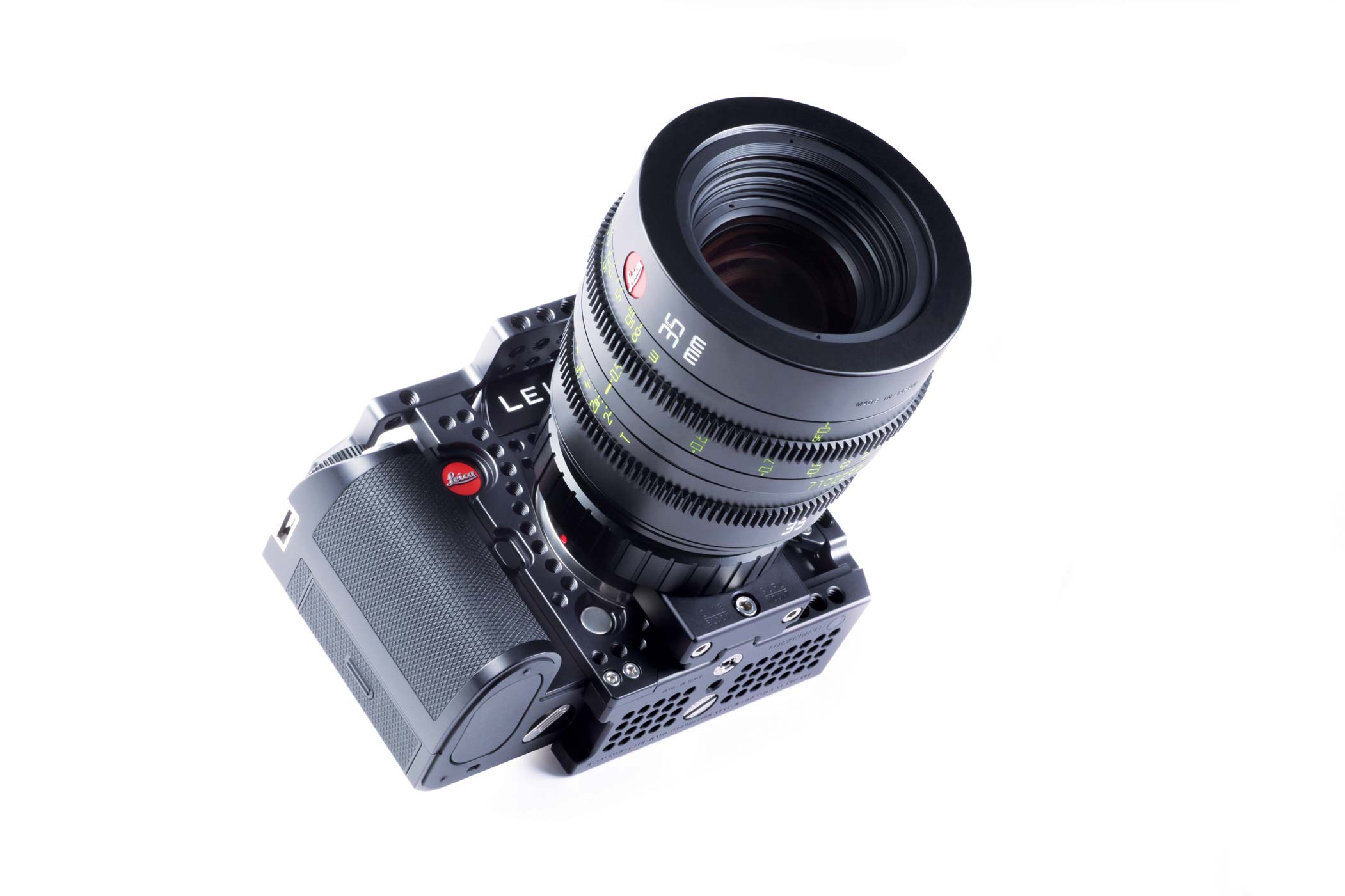

It combines Leica’s PL to Leica SL (52mm to 20mm flange depth) adapter with a CNC  machined metal jacket (cage). Most PL lenses will fit. This becomes the finest Directors Finder that also shoots spectacular stills and video. Of course, you’ll want to complete the package with a set of Summilux-C or Summicron-C primes.

Dante says, “It fits like a glove around the Leica SL (Typ 601) camera to enhance the cinematic feeling when shooting motion pictures, or stills with motion picture lenses.”


Dante’s asymmetrical design maintains the original ergonomics of the Leica SL. There are  105  1/4-20  and 20 3/8-16  threads to attach accessories such as an EVF viewfinder, 4K HDMI recorder, monitor, wireless transmitter, audio receiver, and so on.

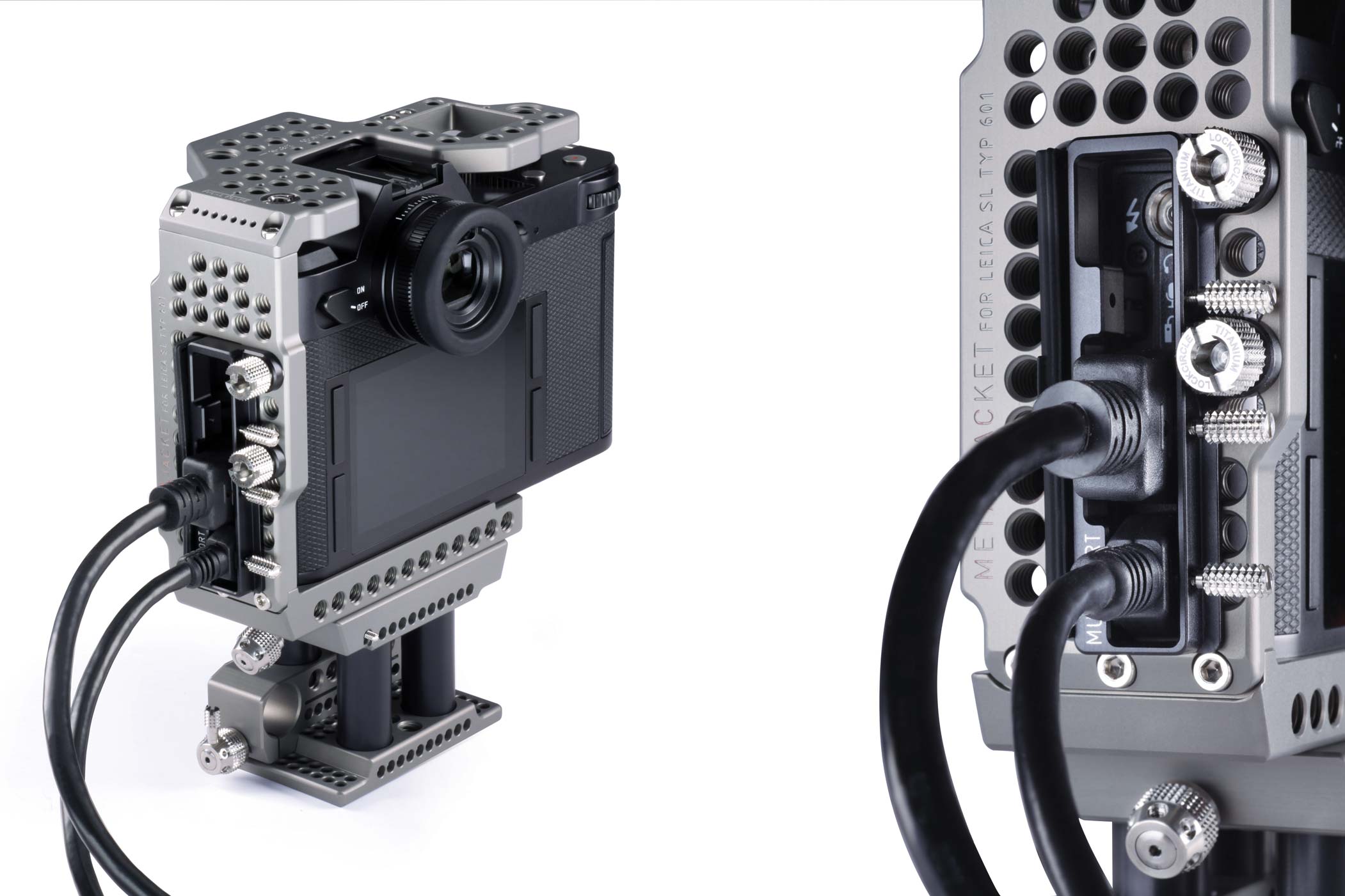

The Metal Jacket has Lockcircle’s helpful port savers that prevent pulling out or loosening of fragile HDMI, USB 3.0, Audio and Controller connections.


The Metal Jacket is available in Classic Black anodized finish, hard anodized (Mil-Spec)
Dura-T (Tactical Grey) or Dura-K (Kant Titanium Brown).



The Metal Jacket is very light (225 gr /7.9 oz). It has threads to attach a focus tape hook at the image plane.

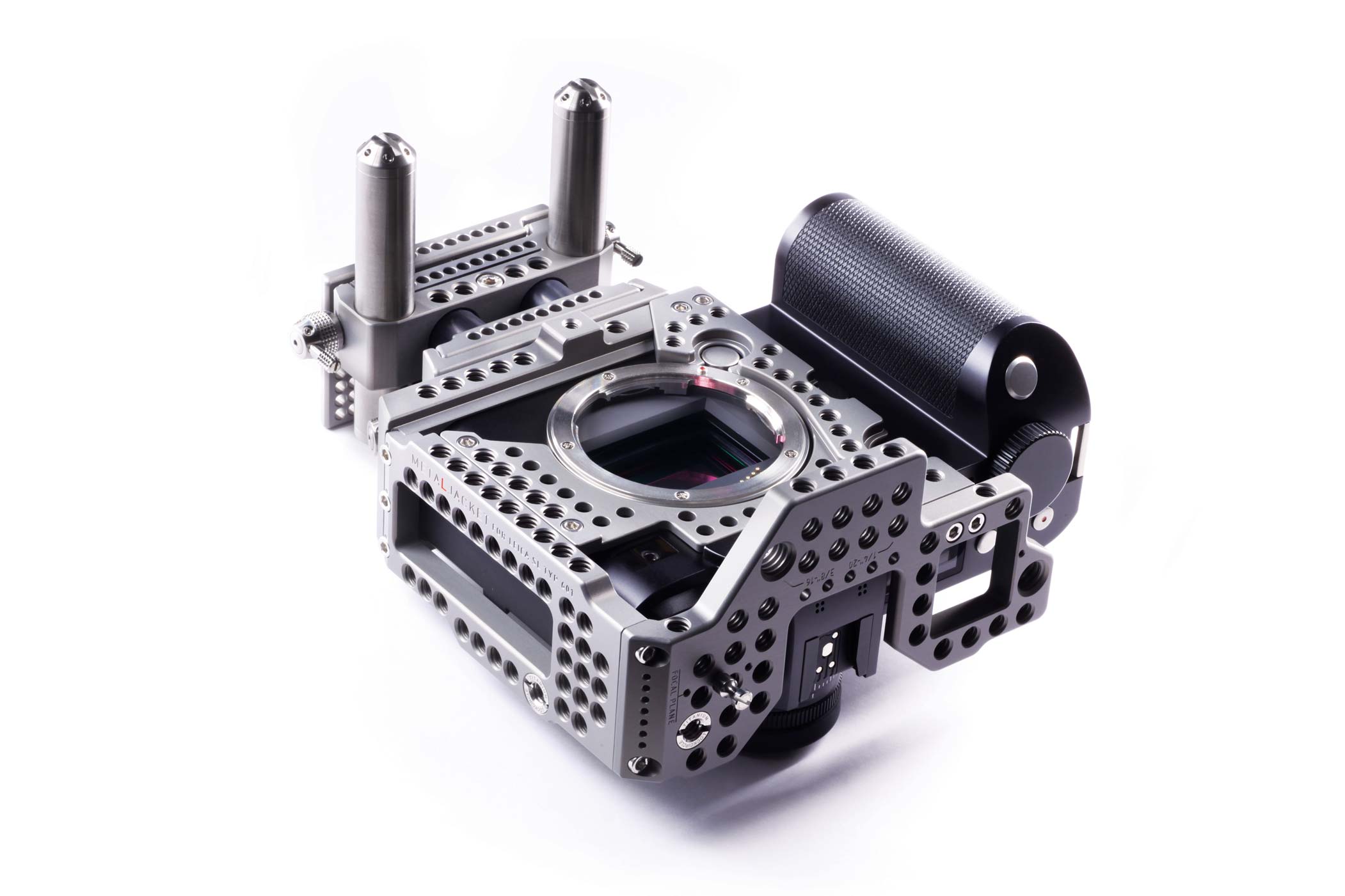

A lightweight MicroMega baseplate for 15mm rods is available with an innovative,
modular, connectable system of 15mm rods that are CNC machined from titanium grade 5 metal.


Metal Jacket by LockCircle

  • Weight:  225 gr / 7.9 oz.
  • 105  1/4”-20 threads
  • 20  3/8”-16 threads
  • Heavy-duty tripod mounting baseplate with 1/4”-20 and 3/8”-16 threads
  • CineBlock mount for original CW Sonderoptic SL/PL Mount

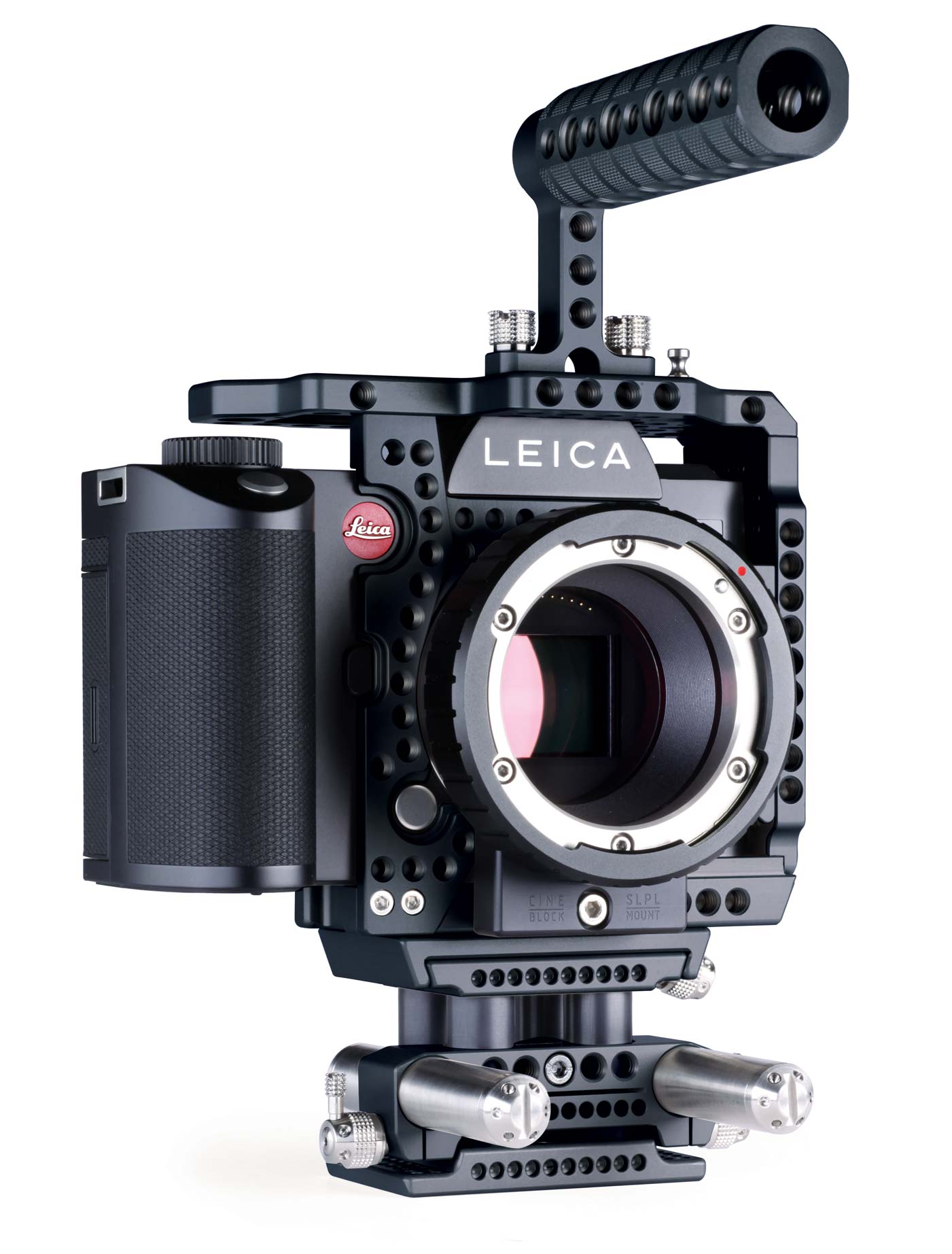

  • Top Grip handle
  • CNC machined from billet aluminum
  • Mil-A 8625 Type III (Mil-Spec) surface anodized  (Dura-T / Dura-K)
  • Titanium screws
  • Camera control display full visible (shaped design)
  • MultiPort  HDMI / USB 3.0 / Audio / Control Interface port savers
  • Titanium Grade 5 15mm Modular Rods
  • Image Plane thread for tape measure hook (titanium pin)
  • MicroMega modular ultra-lightweight baseplate (15 rods)
  • Titanium Grade 5 Modular 15mm Rods system
  • Asymmetrical cage design
  • Right hand camera control with original Leica SL ergonomics
  • Crafted in Italy (Lake Como) by LockCircle

Dante Cecchin and Lockcircle will be at Cine Gear in Booth 82.

For more information:     lockcircle

metal jacket (at)
