Is your current router starting to get overwhelmed as you work with more and more high resolution, high dynamic range signals? With 64x 12G-SDI inputs and 64x 12G-SDI outputs, AJA KUMO 6464-12G has you covered, offering high bandwidth and cost-effective signal routing.

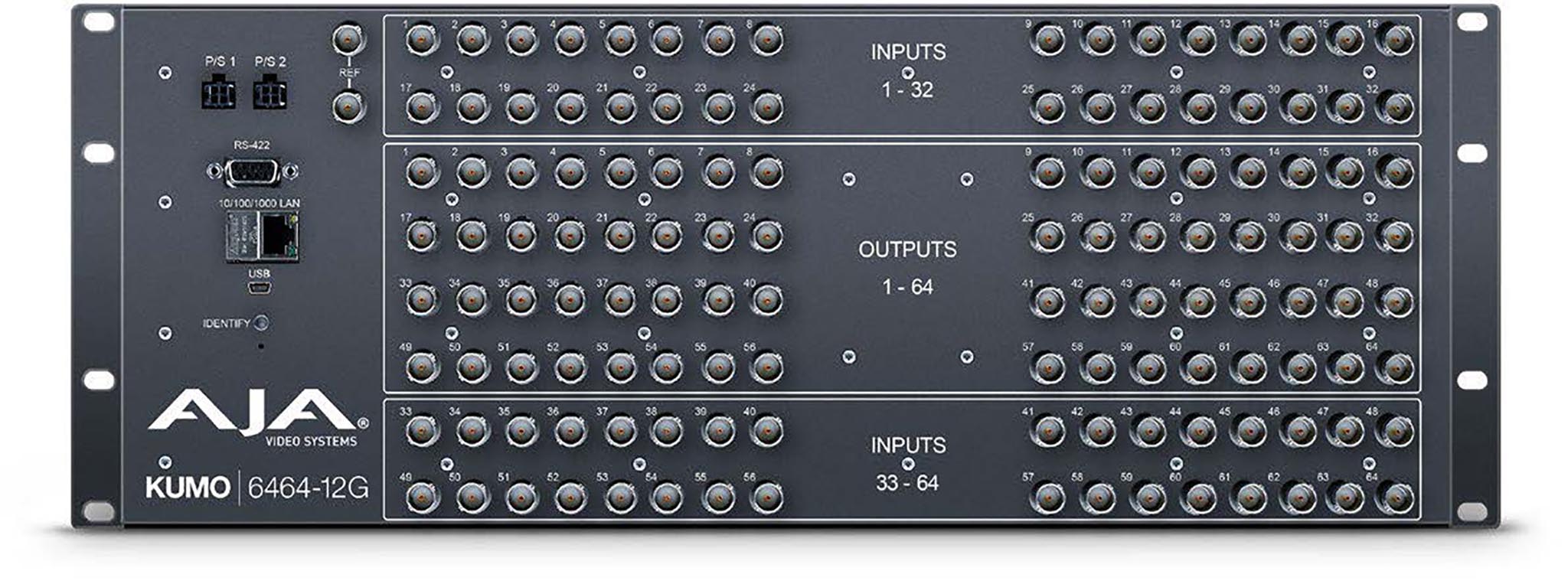

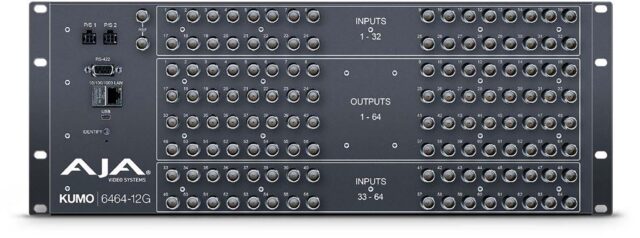

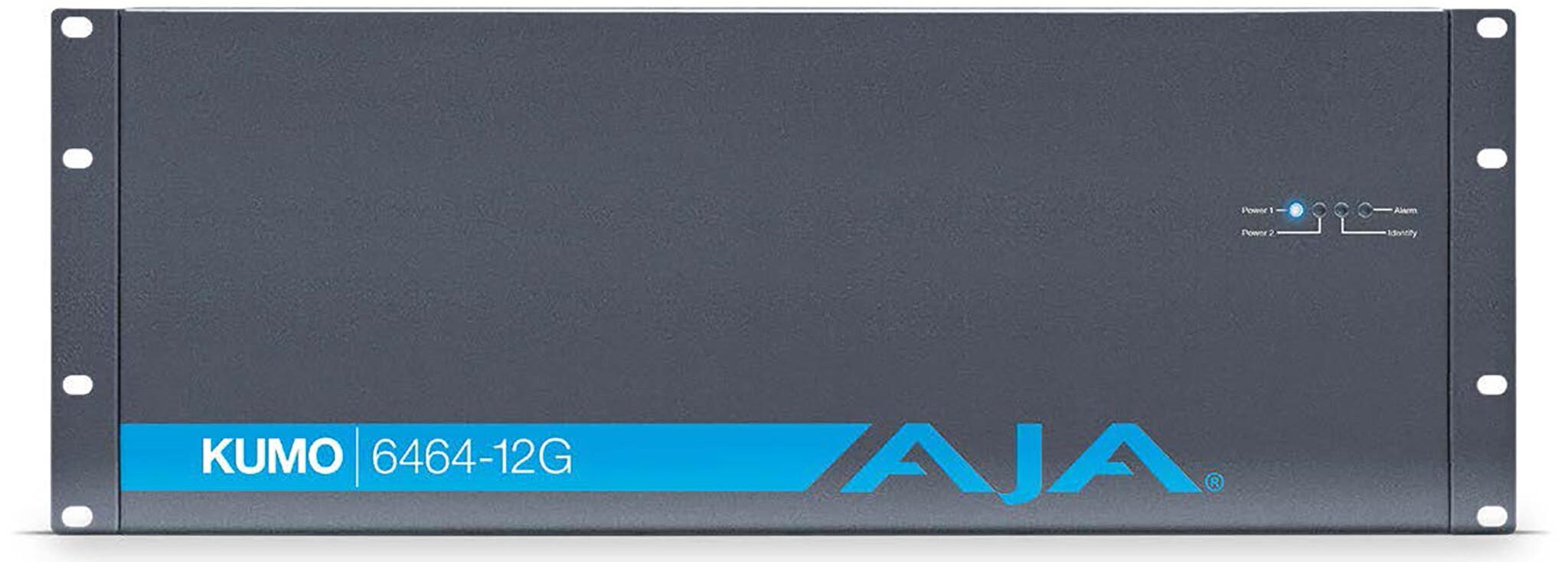

AJA Video Systems introduced the new KUMO 6464-12G, a high capacity 12G-SDI router with 64x 12G-SDI inputs and 64x 12G-SDI outputs.

KUMO 6464-12G provides increased capacity for larger configurations while maintaining a compact 4RU height and slim profile.

It supports 12G-SDI/6G-SDI/3G-SDI/1.5G-SDI/270Mb and DVB ASI, with 64x 12G-SDI inputs and 64x 12G-SDI outputs. You can easily route and control video with embedded audio to/from BNC connections with auto re-clocking of SDI rates.

KUMO 6464-12G devices can be configured for ganged dual- and quad-port routing, so you can easily combine multiple inputs and outputs for Dual Link, 4K, UltraHD, and 8K workflows, enabling seamless routing of uncompressed, compressed, or RAW 4K signals throughout a facility.

Following in the footsteps of all KUMO routers, KUMO 6464-12G has a compact, fanless design. It is absolutely silent.

 KUMO 6464-12G features include:

• Single cable support for 4K/UltraHD 12G-SDI routing in a compact 4RU profile.
• 64x 12G-BNC inputs and 64x 12G-BNC outputs.
• 8K (Quad-12G), 4K, UHD, 2K, HD, and SD resolution support.
• Compatible with and exceeds SMPTE specifications.
• Facilitates Quad Link, Dual Link, 4K/UltraHD and 8K/UltraHD2 with multiport SDI switching for 2 or 4 sources at once.
• Up to 8 salvos can be configured and saved in each KUMO router.
• Capability to configure, save, export, and import up to 20 presets in each KUMO router.
• Embedded web server for remote control on a standard web-browser.
• Support for up to 32 AJA KUMO CP and CP2 control panels, direct connect or networked via ethernet.
• 1x RS-422 DB9 with support for Grass Valley Native Protocol.
• USB port for easy initial network setup.
• Auto re-clocking SDI rates: 270/1.483 Gbps/1.485 Gbps/2.967 Gbps/2.970 Gbps/5.934 Gbps/5.940 Gbps/11.868 Gbps/11.880 Gbps.
• Format agnostic, 270 Mbps – 12 Gbps.
• Passes all SDI embedded ancillary data including audio and HDR signaling.
• Support for 270Mb DVB ASI.
• Reference Input: analog color black (1V) or composite sync (2V or 4V) looping, non-terminating.
• 10/100/1000 Ethernet (RJ-45), REST API.
• Fanless design, completely silent operation.
• Redundant power supply option.
• Five-year warranty and AJA’s world-class support.

Accompanying the launch of KUMO 6464-12G is a new KUMO v4.9 update that introduces support for the router and includes automatic cable length adjustment and re-clocking for best performance.

Initial network setup is supported via free AJA eMini-Setup v2.4 software for macOS and v2.4.1 for Windows. These updates simplify network configuration and firmware upgrades for all KUMO devices and AJA products like HELO Plus, ColorBox, and Mini-Converters. More information about eMini-Setup is available online. (www.aja.com)

Price and Availability

KUMO 6464-12G is available now through AJA’s worldwide reseller network for $14,999 US MSRP.

The latest KUMO v4.9 and AJA eMini-Setup v2.4 updates are available now as free downloads from the AJA Support Page.
