NANLUX introduced the Evoke 5000B on February 12, 2025 in London. Powerful, IP66 weatherproof, this 5000 Watt LED fixture approaches the brightness of a 9kW HMI or 24kW tungsten light.

“B” is for bi-color: color temperature adjusts from 2700K-6500K with Green/Magenta correction.

The Evoke 5000B combines four types of white light chips, with Green/Magenta adjustment across the entire color temperature range. It integrates the lamp head, control unit and power supply into one fixture, significantly reducing both the total weight and size compared to fixtures with separate units.

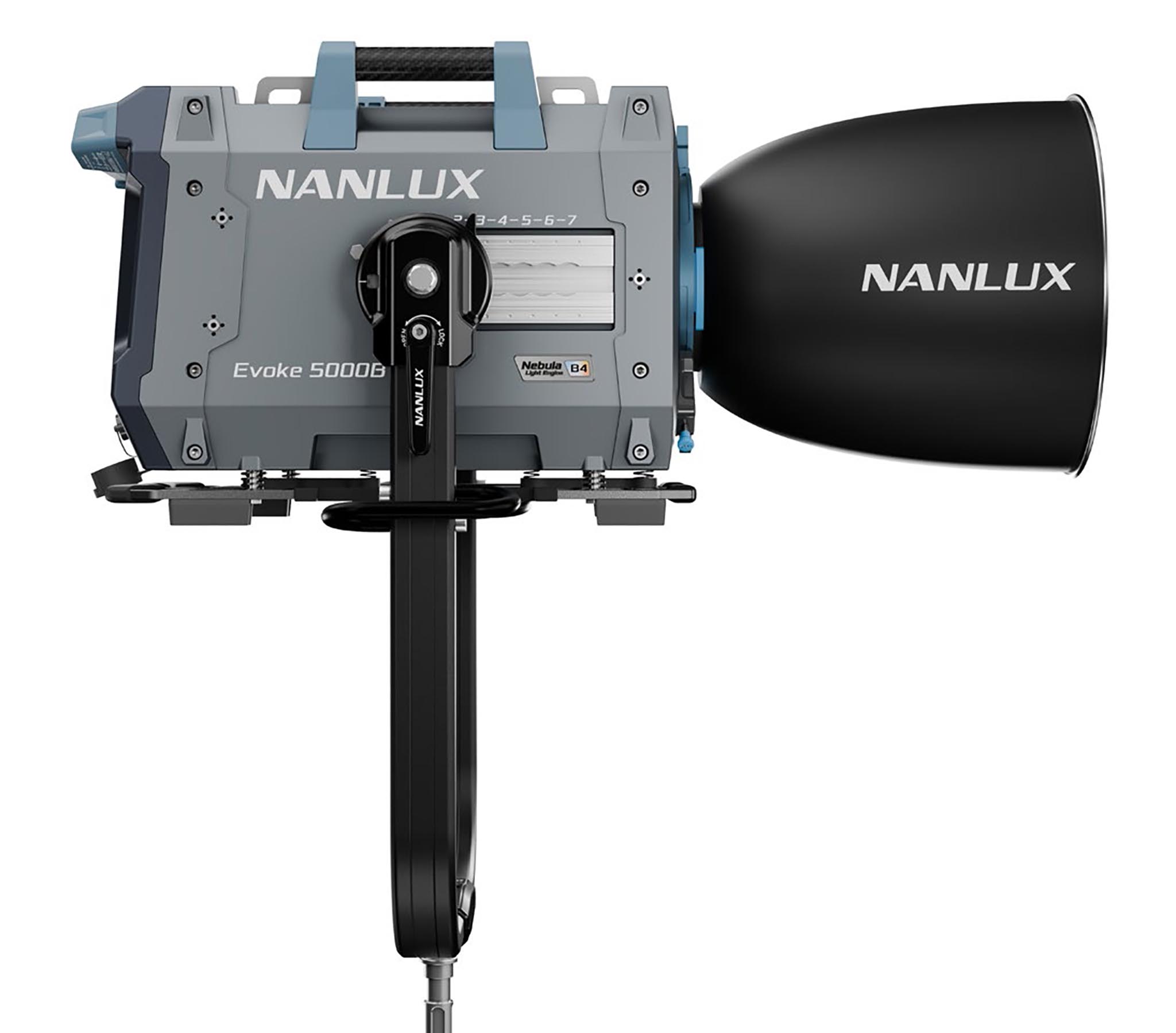

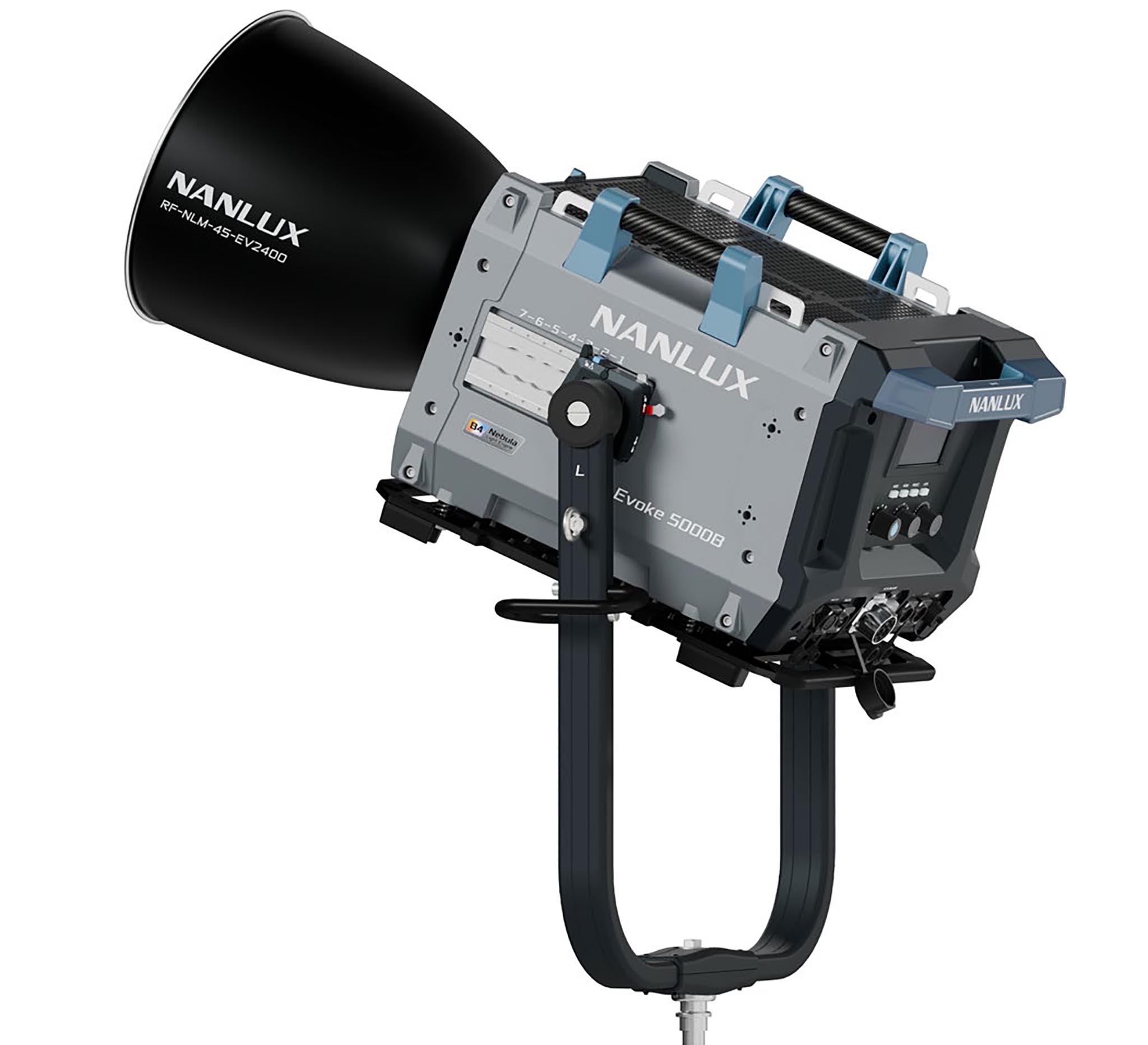

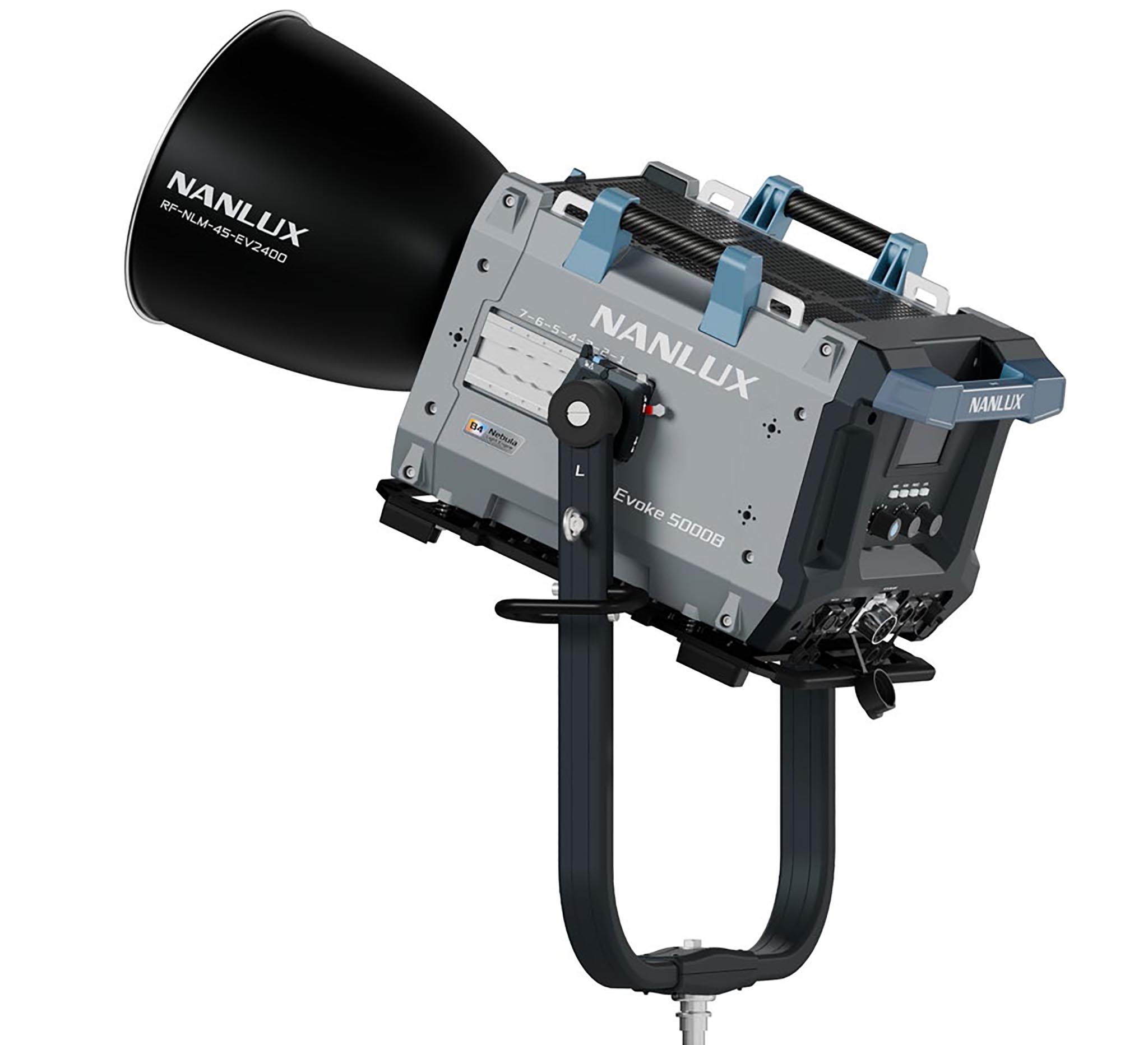

The Evoke 5000B has a weatherproof IP66-rated housing made of magnesium alloy. It weighs 46 kg / 101 lb (with yoke). It has balance-adjusting rails on both sides for flexible head positioning and to maintain a neutral center of gravity when different accessories are attached.

There’s a motorized yoke with an angle display and a disc brake for precise positioning and safety.

The Evoke 5000B has smooth dimming, especially from 0.0% to 0.1%. The newly added High Speed Mode is flicker-free even at more than 10,000 fps.

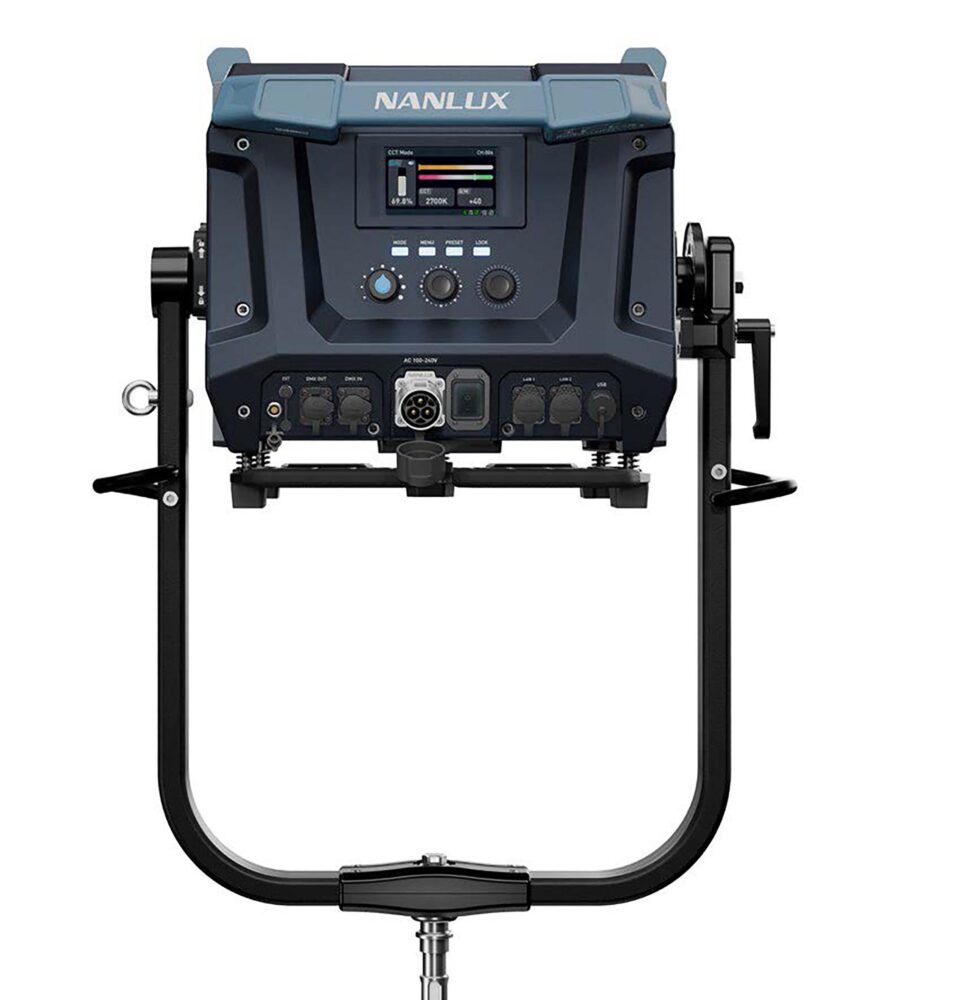

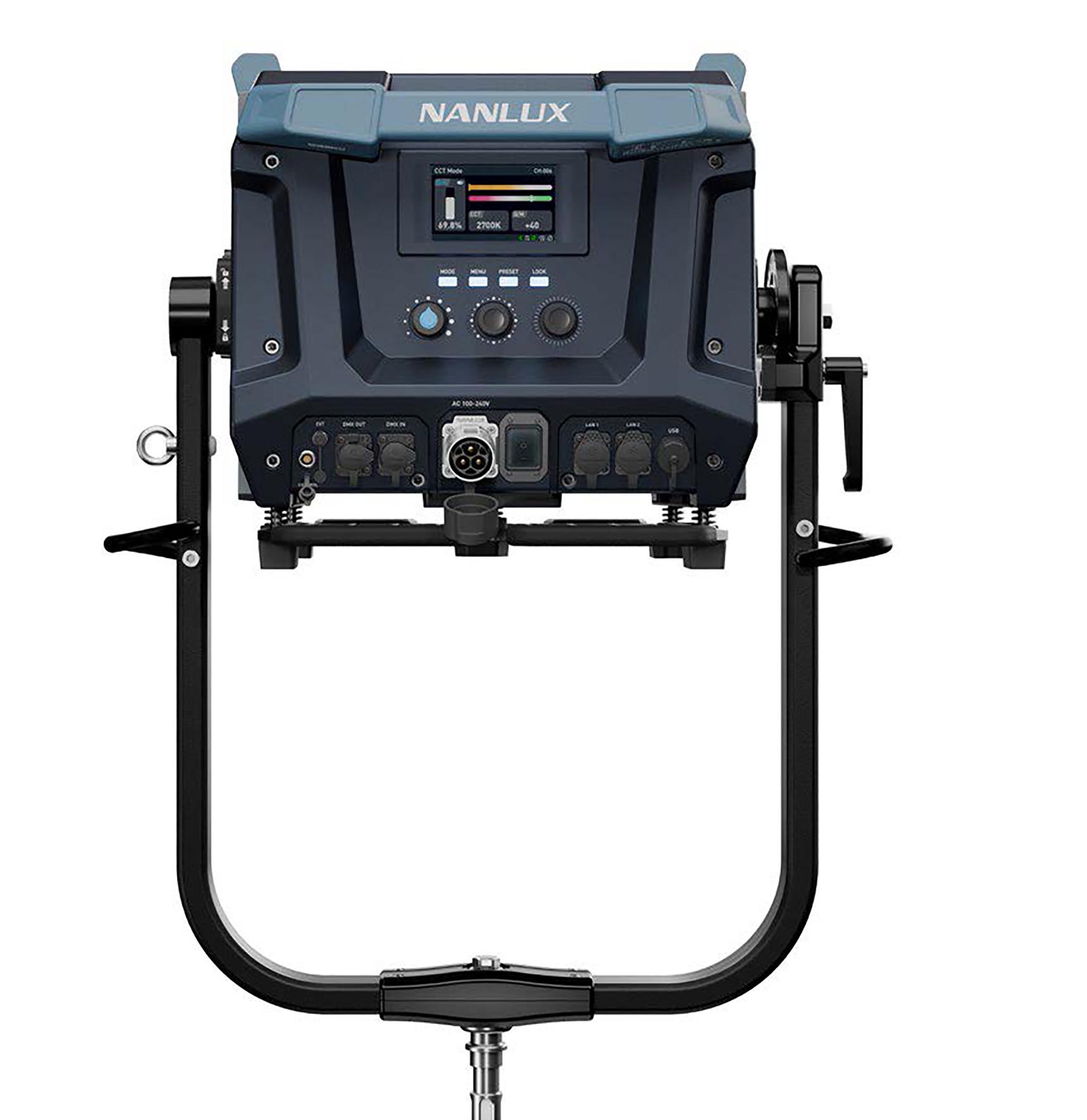

The  built-in control panel has three knobs, four buttons and a 4.3-inch display screen. The user interface has a straightforward menu and intuitive icons. It can be controlled remotely via DMX/RDM, Art-Net/sACN, LumenRadio CRMX, Nanlink App 2.0, etc.

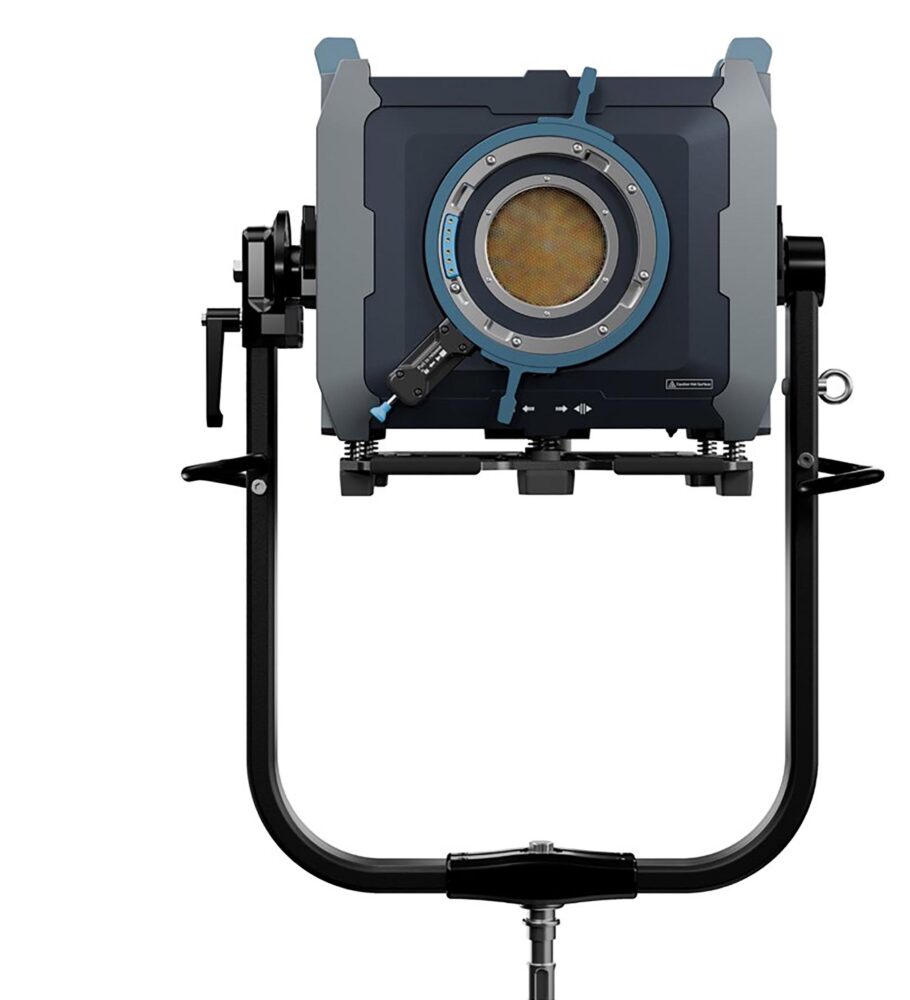

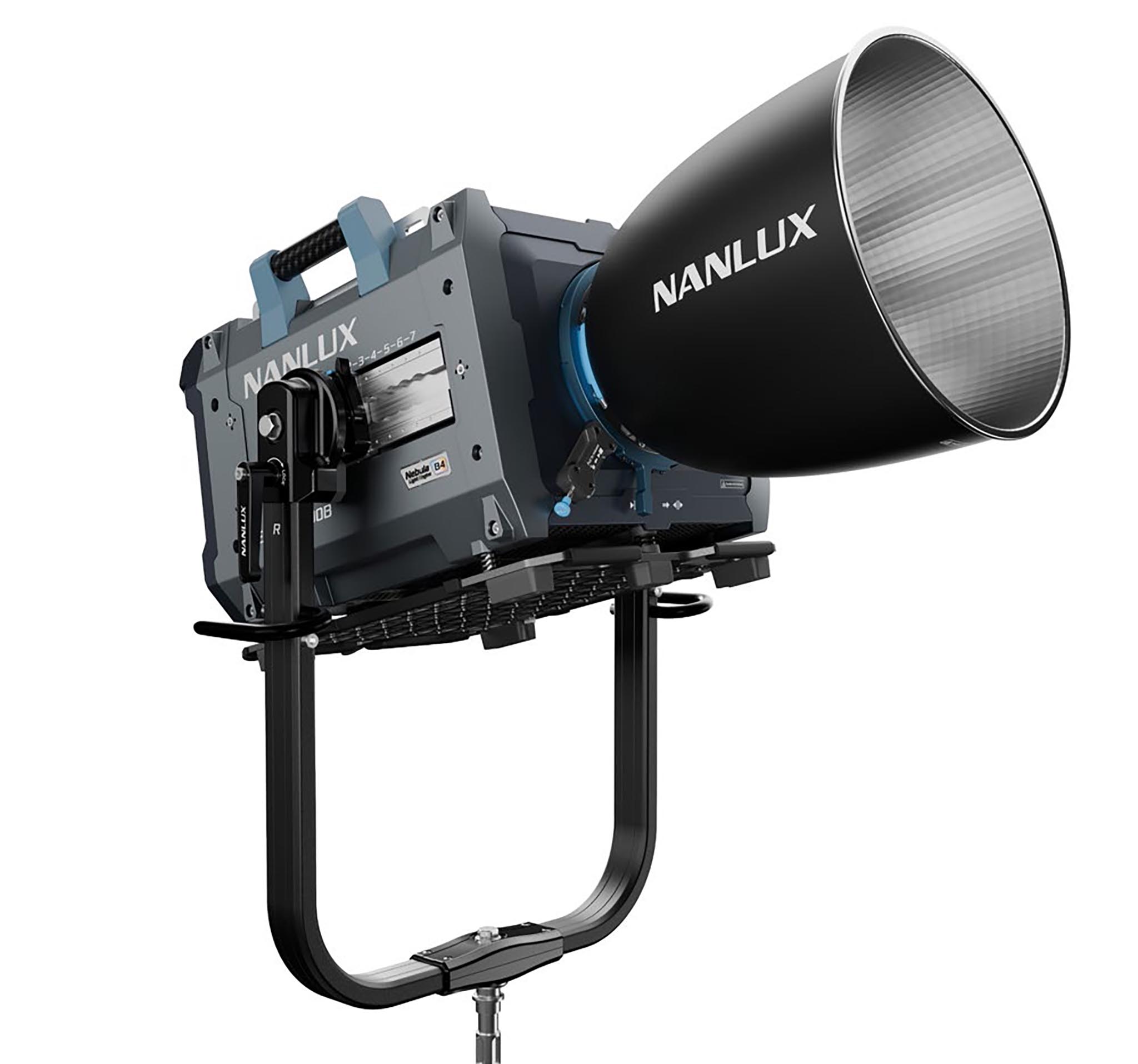

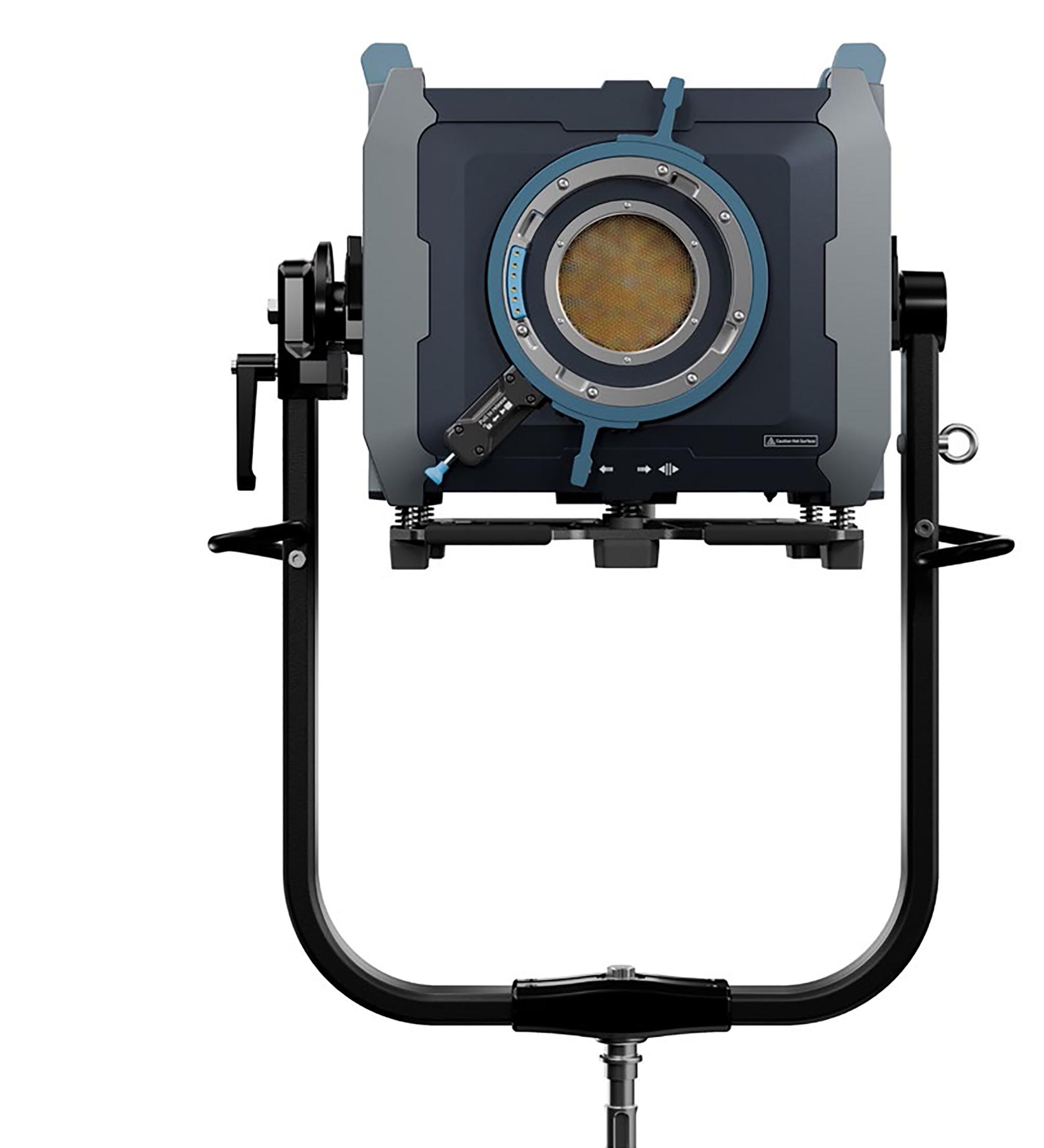

The Evoke 5000B has an NL (Nanlux) mount compatible with most accessories for the Evoke 2400B, including  Fresnel attachment, reflector, parallel beam reflector and softbox.

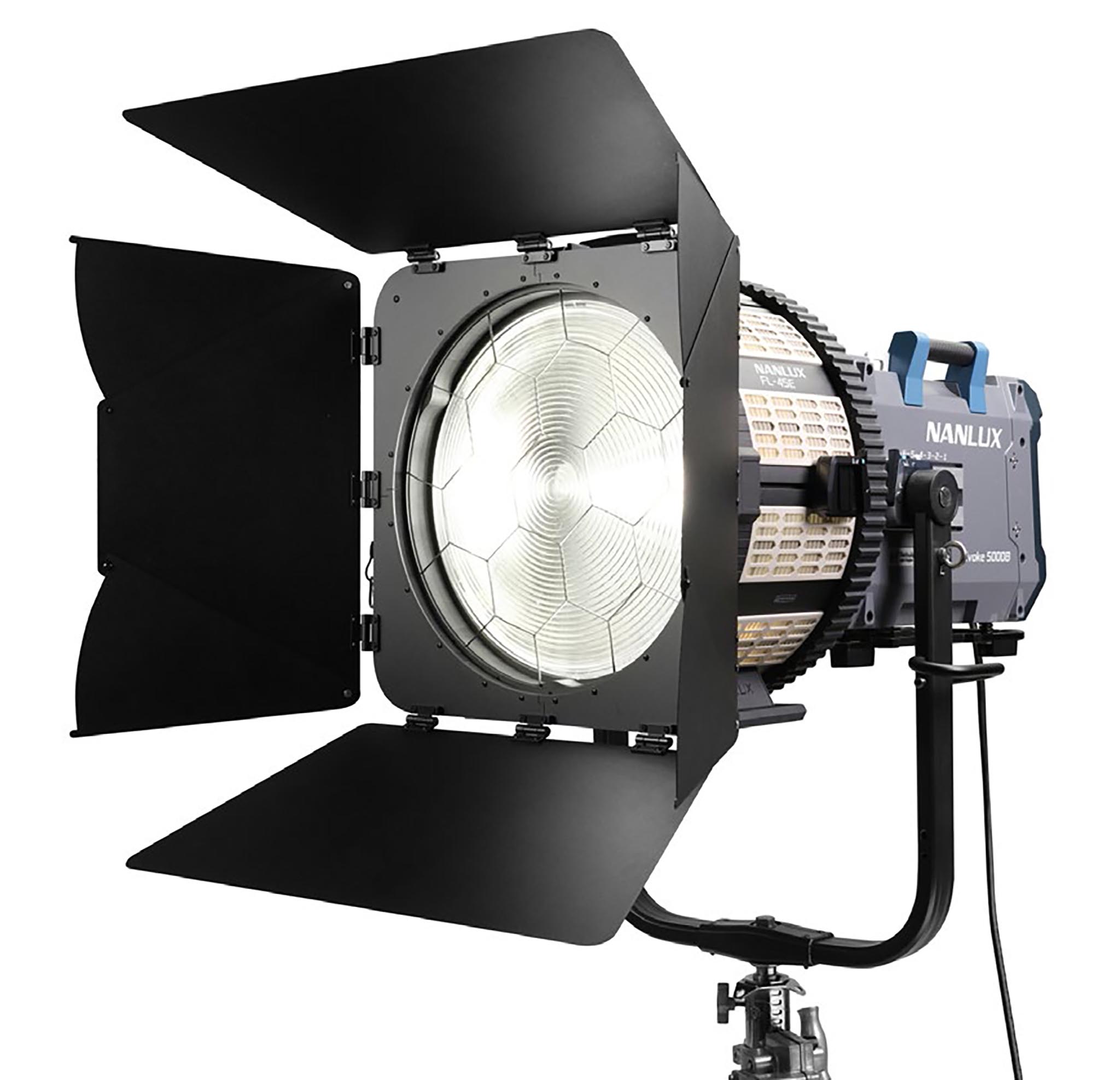

A new, larger motorized Fresnel lens, a motorized yoke, and a wired controller for the Evoke 5000B are also being introduced. The motorized Fresnel lens has a 45 cm lens with a 16°-50° zoom range, delivering 47,970 lux at 16°.

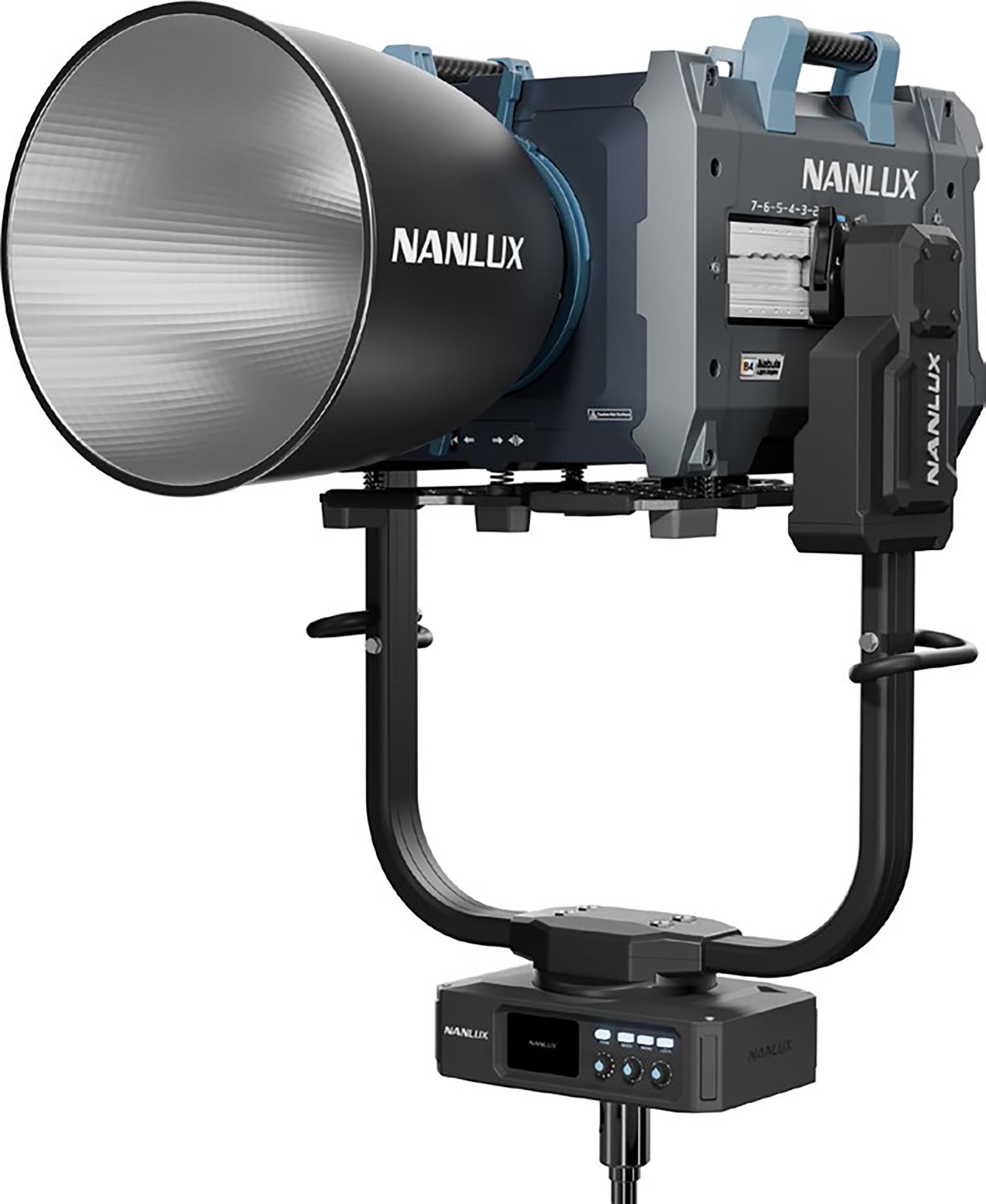

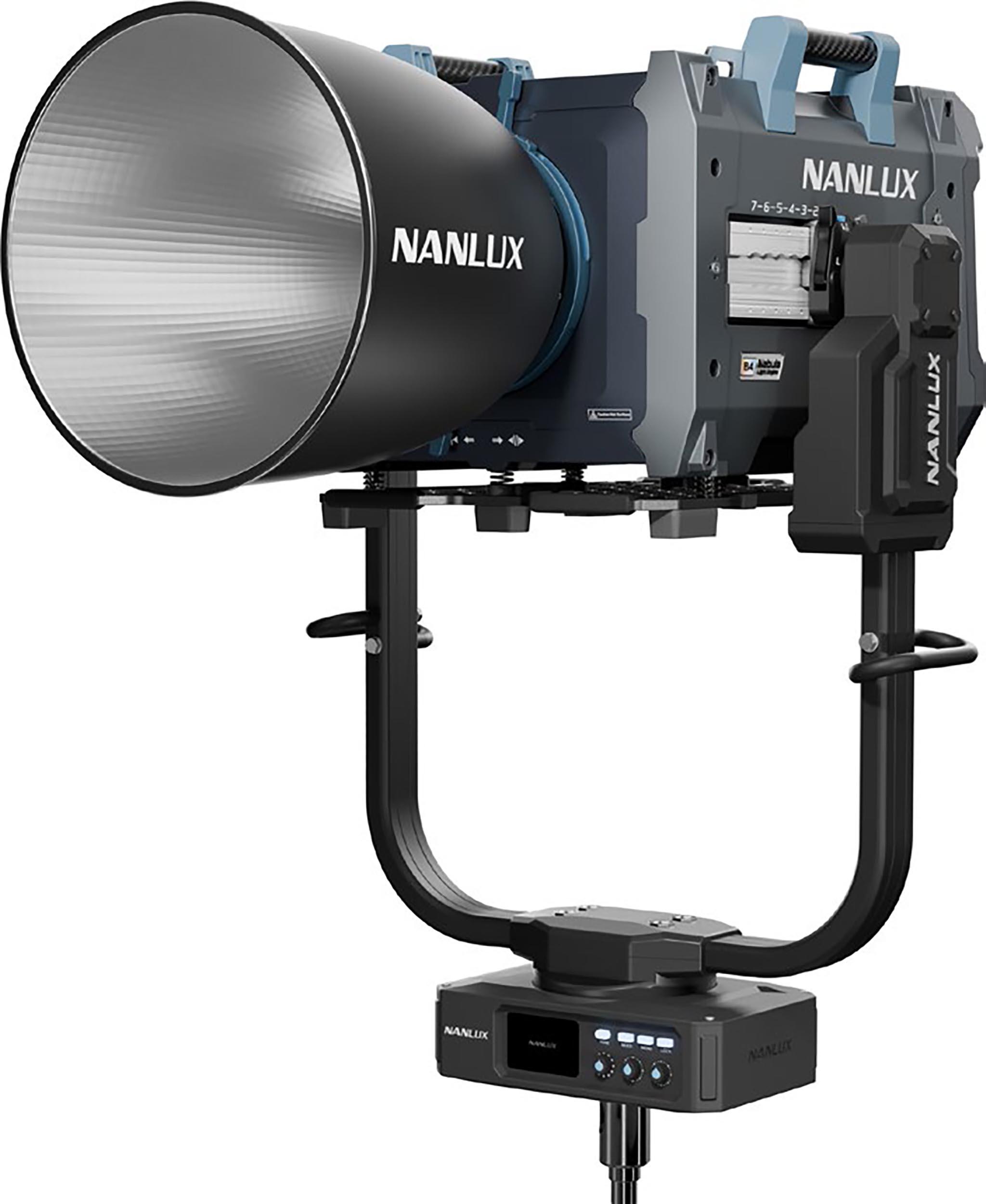

The motorized yoke for the Evoke 5000B enables remote angle adjustments with 540° horizontal rotation and 270° vertical movement. It can be controlled via a wired control panel, DMX/RDM or Ethernet.

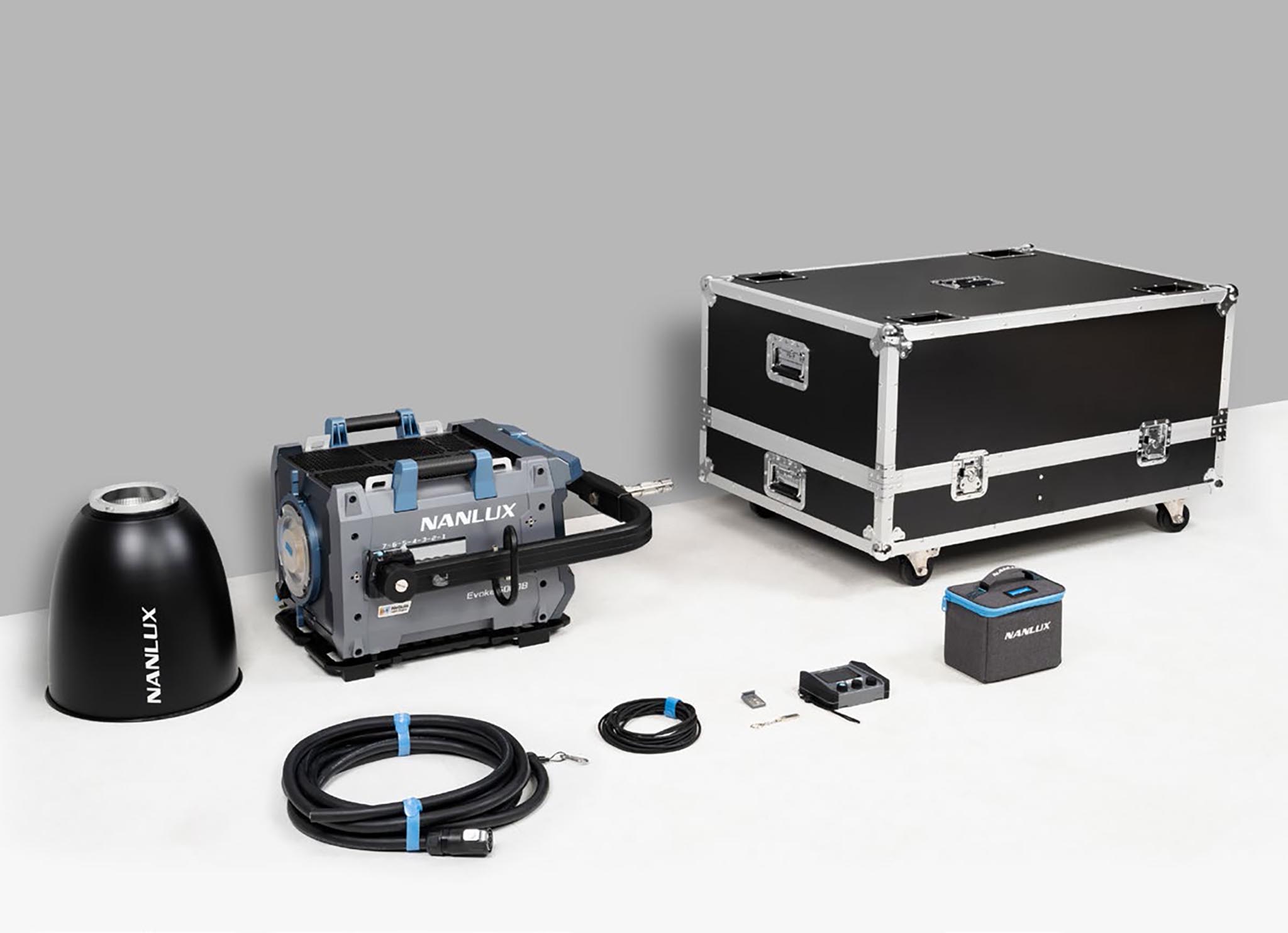

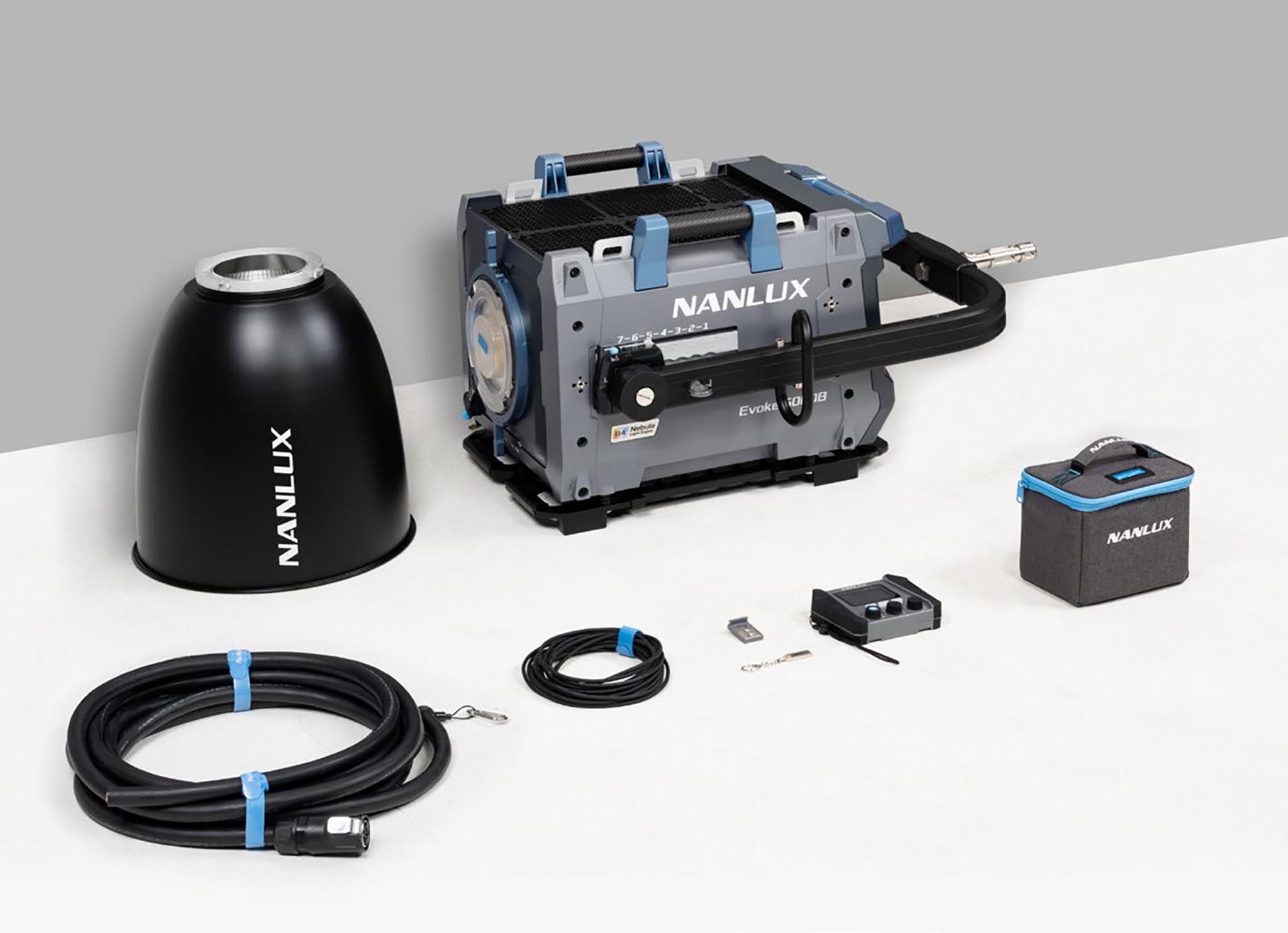

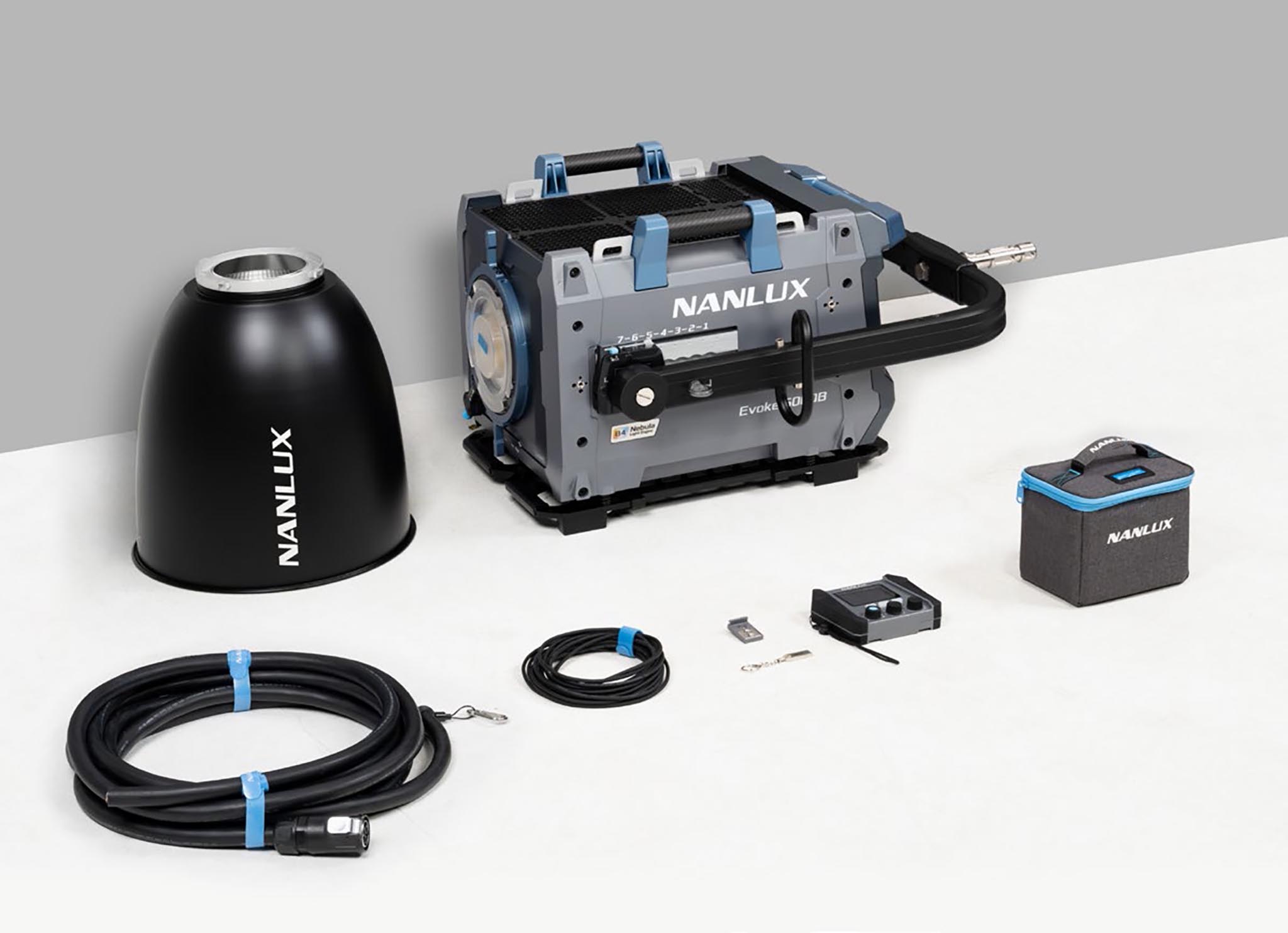

A wired controller is included with the fixture. It has a 3.2-inch display, three buttons, and three knobs, with a layout identical to the rear display on the Evoke 5000B. It includes an 8m connection cable, a weather resistant  IP66-rated housing and a magnetic back for convenient attachment to metal surfaces or the magnetic base on the fixture.
