Panasonic VariCam LT

04_VaricamLT_SidePL

Feb 10. INT. DGA THEATRE HOLLYWOOD – NIGHT

Panasonic launched the VariCam LT  — LT as in Lite (Bud Lite, Arricam LT…) It’s a lighter, smaller, lower-priced version of the VariCam 35. Same 4K sensor, same dual native 800/5000 ISO, smaller body. It looks like Mr. Miyagi’s Panasonic team, with Taka Mitsui and Barry Russo and many others, came up with a very appealing camera.

See photos and story about the LA Launch.

The Panasonic VariCam LT (official model number AU-V35LT1G) weighs a little under 6 lb. It will be at home on Steadicams, rigs, gimbals, drones, cranes, remote heads, handheld or shoulder-resting. It could be an indie A camera or big budget B camera. Actually, with cameras multiplying on big shows, I can imagine it being part of an arsenal of 10-20 cameras ready to roll.

05_VaricamLT_onShoulder

VariCam LT comes standard with an EF (Canon style) mount. So, you can use any of the 100,000 million+ Canon EF still lenses out there. A PL mount is optional. To swap mounts, loosen two Allen lock-screws and turn the lens mount ring counter-clockwise to remove it from the camera body. The new mount attaches by turning the ring clockwise and locking with the Allen screws. Flange depth should be pre-calibrated by the metal mount to metal body flanges. I expect a brisk business in aftermarket mounts for other lens systems: Leica M, R, S, Nikon, Panavision PV, and so on.





01_VaricamLT_SlantEF 02_VaricamLT_SlantPL



The VariCam LT is a one-piece, small camcorder. In comparison, the VariCam 35 comes in two parts that dock: camera head plus recorder. Unlike the VariCam 35, the LT does not do parallel sub-recording (recording different formats simultaneously). However, it does have an SD slot to record AVC-ULTRA 6 megabit/sec Long GOP H.264 full rez HD 1920×1080 proxies that are helpful for immediate editing. Proxy files can be wirelessly uploaded via FTP—good for wireless color grading.

There is one expressP2 card for all formats including high frame rate and HD/2K/UHD/4K recording. The 256 GB expressP2 card can record up to 90 minutes of 4K/4:2:2/23.98p).

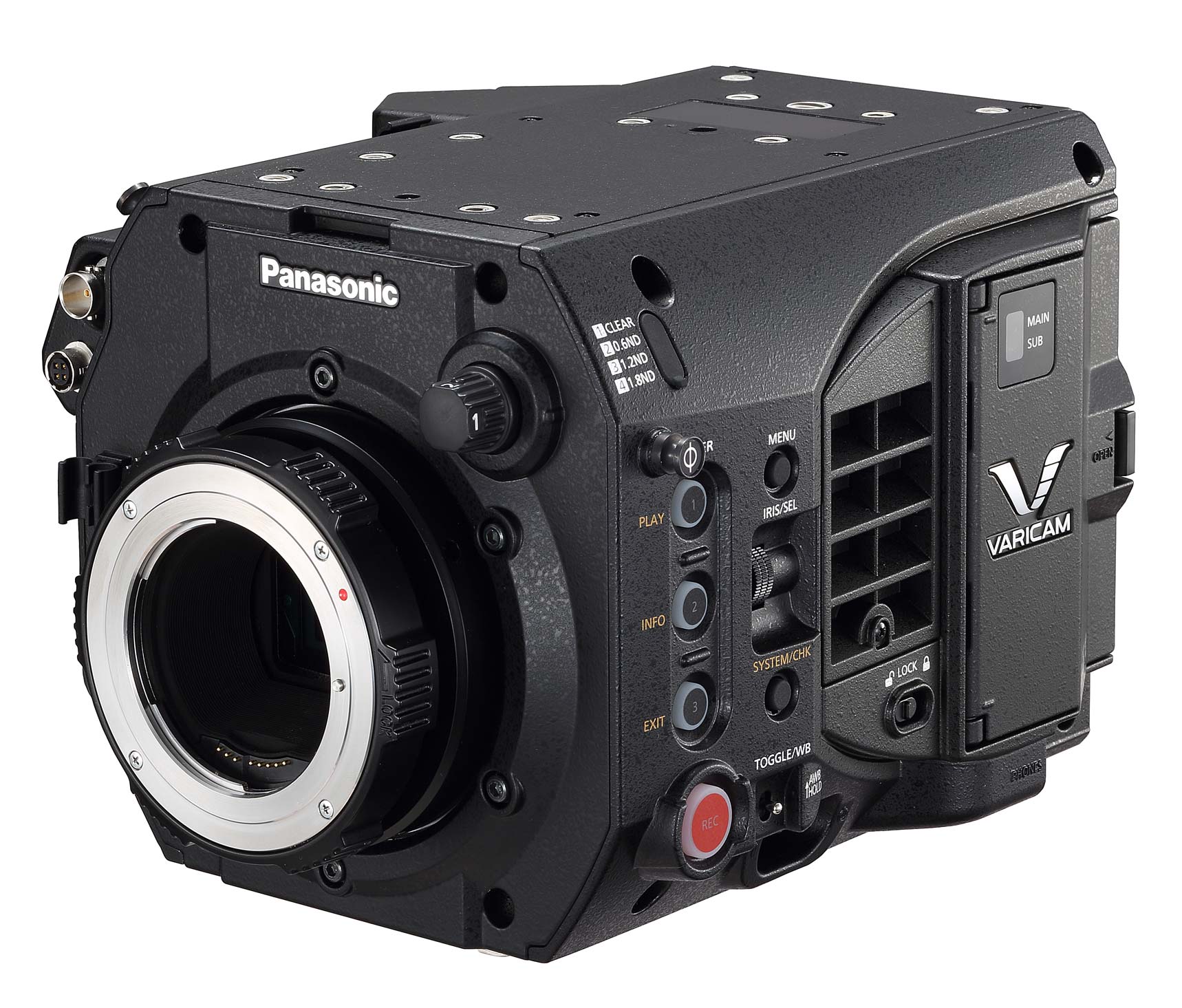

07_VaricamLT_BodyFront

Regular 4K 10-bit 422 at 24 fps is 320 megabits/sec. – 10:1 compression. H.264.

4K LT for 30-60  fps – uses less processing, lower bit rates: 170 megabits to 800 megabits/secs at 60 — with a 2 to 1 increase in efficiency.

External RAW recording is planned to be supported by a firmware upgrade in early summer 2016. RAW outputs via 2 SDI connectors at rear of camera up to 60 fps – uncompressed. UNCOMPRESSED! That’s a big deal. Data rate math: 4096 x 2160 x 24 x 10 bit = 2,123 Gbps.

Convergent Design just emailed that Odyssey monitor/recorders will support the Panasonic VariCam LT digital cinema camera’s RAW file format V-RAW when the camera’s firmware upgrade comes from Panasonic this summer.

Whereas the VarCam35 shoots up to 120 fps in all formats, the LT goes to 60 fps in 4K. New codecs introduced in the VariCam LT include AVC-Intra LT and AVC-Intra 2K-LT — to shoot up to 240 fps in imager crop mode.

The VariCam LT can do in-camera color grading. It can record an ungraded 4K master along with all on-set grading metadata.

The new “V-LOOK” is like a blend of V-Log and video for situations that will not require heavy color grading. Panasonic’s Stpehen Mahrer described V-Look as “something like an in-camera grade with the look baked in, with a nice toe and shoulder, that you can later tweak in post if you like.”

16_VaricamLT_WhiteBack_ControlPad

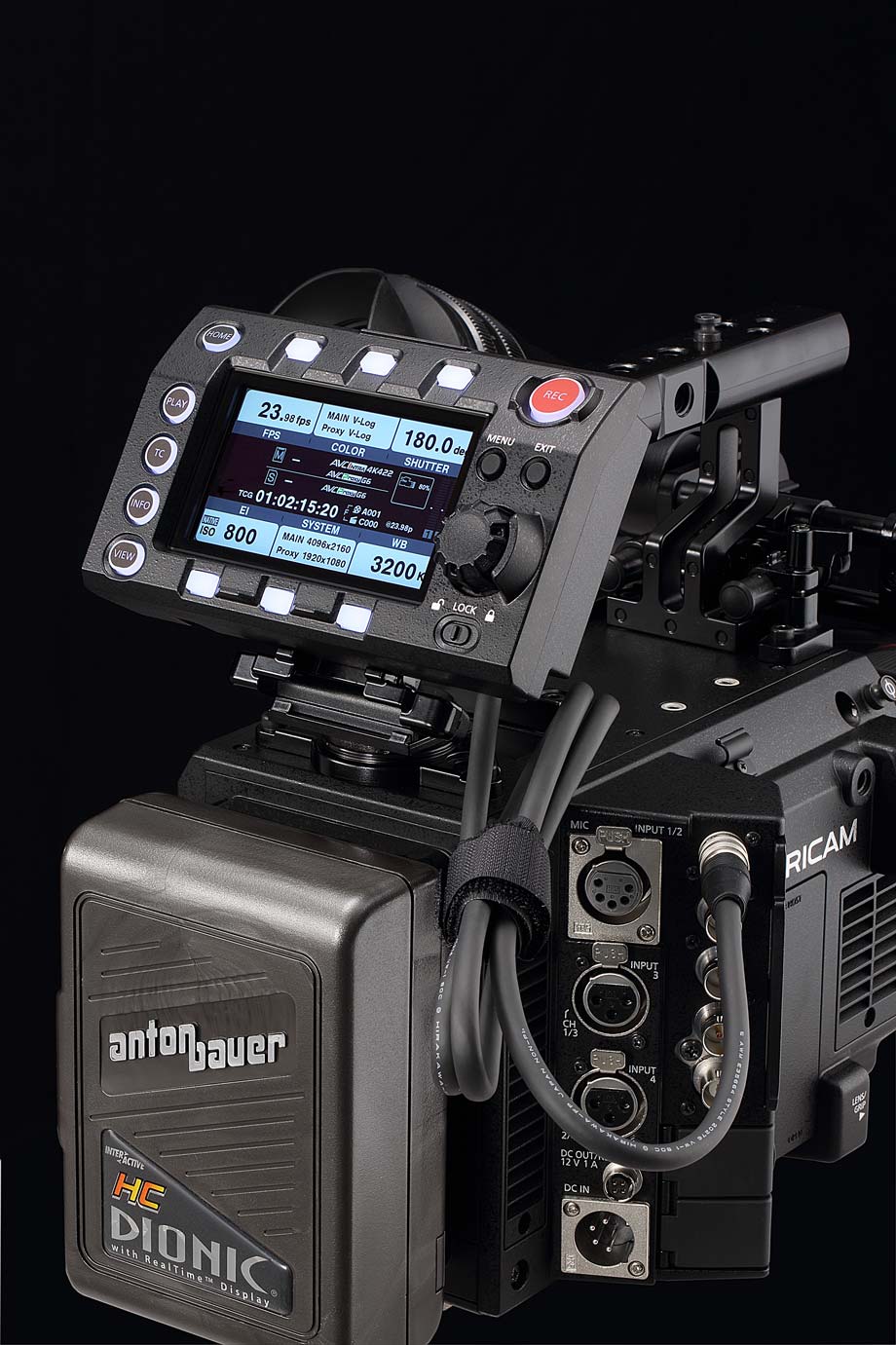

The camera’s control panel can be separated from the camera body for easy menu access.

15_VaricamLT_WhiteBack

The optional EVF for VariCam LT’ uses the same OLED, with the same dot pitch and terrific resolution and quality as the VariCam 35. It’s much less expensive, just as good, has different mounting brackets, gets video and metadata from an HD-SDI Output at the rear of the camera.

03_VaricamLT_Grip1

Panasonic has made a new adjustable shoulder Mount with industry standard height to center of lens. The new handgrip has a dial to electronically control the apertures of  EF lenses.



Price and Availability

The VariCam LT will be available at the end of March.

Suggested list price: $18,000 (body only)

$24,000 (body + AU-VCVF10G viewfinder)



For more information about the VariCam LT, visit www.us.panasonic.com/varicam



09_VaricamLT_SensorEF

VariCam LT Image Area, like the VariCam 35

  • Active 4K active pixel area is 24.576 mm wide x 12.960 mm high (4096 x 2160)
  • 4K Image diagonal: 27.784 mm
  • UHD area: 23.040 mm x 12.960 mm high (3840 x 2160)
  • UHD image diagonal: 26.435 mm

VariCam LT Specs

  • 14+ stops of dynamic range with V-Log.
  • Dual native 800/5000 ISO
  • Weight: under 6 lb.
  • Formats: 4K, UHD, 2K and HD.
  • Apple ProRes 4444 (up to 30p), ProRes 422 HQ (up to 60p), HD, Panasonic’s AVC-ULTRA family of video codecs.
  • Support for the Academy Color Encoding System (ACES)
  • ND filters: CLEAR, 0.6, 1.2, 1.8
  • Optional OLED EVF with optical zoom
  • 24-bit LPCM audio in-camera
  • Focus Assist
  • Hot swap for power (on-board and external power)
  • IR (for scenes even darker than ISO 5000 can handle).
  • Anamorphic lens de-squeeze
  • Special REC functions (PreRec, interval, one-shot)
  • IP control via Panasonic’s AK-HRP200 camera remote controller
  • Built-in GPS
  • 3G-HD-SDI x 3 (SDI-OUT X 2 and VF)
  • LAN
  • Genlock in
  • timecode in/out
  • USB2.0 Host and USB2.0 Device (mini B)
  • three XLR inputs (one 5-pin, two 3-pin) for four channels of 24-bit, 48KHz audio
  • tough magnesium body

Additional information from Panasonic

Sample footage with VariCam LT

“To Each His Dulcinea” by Dejan Georgevich, ASC

“Africa” by Sandesh Kadur



Additional views

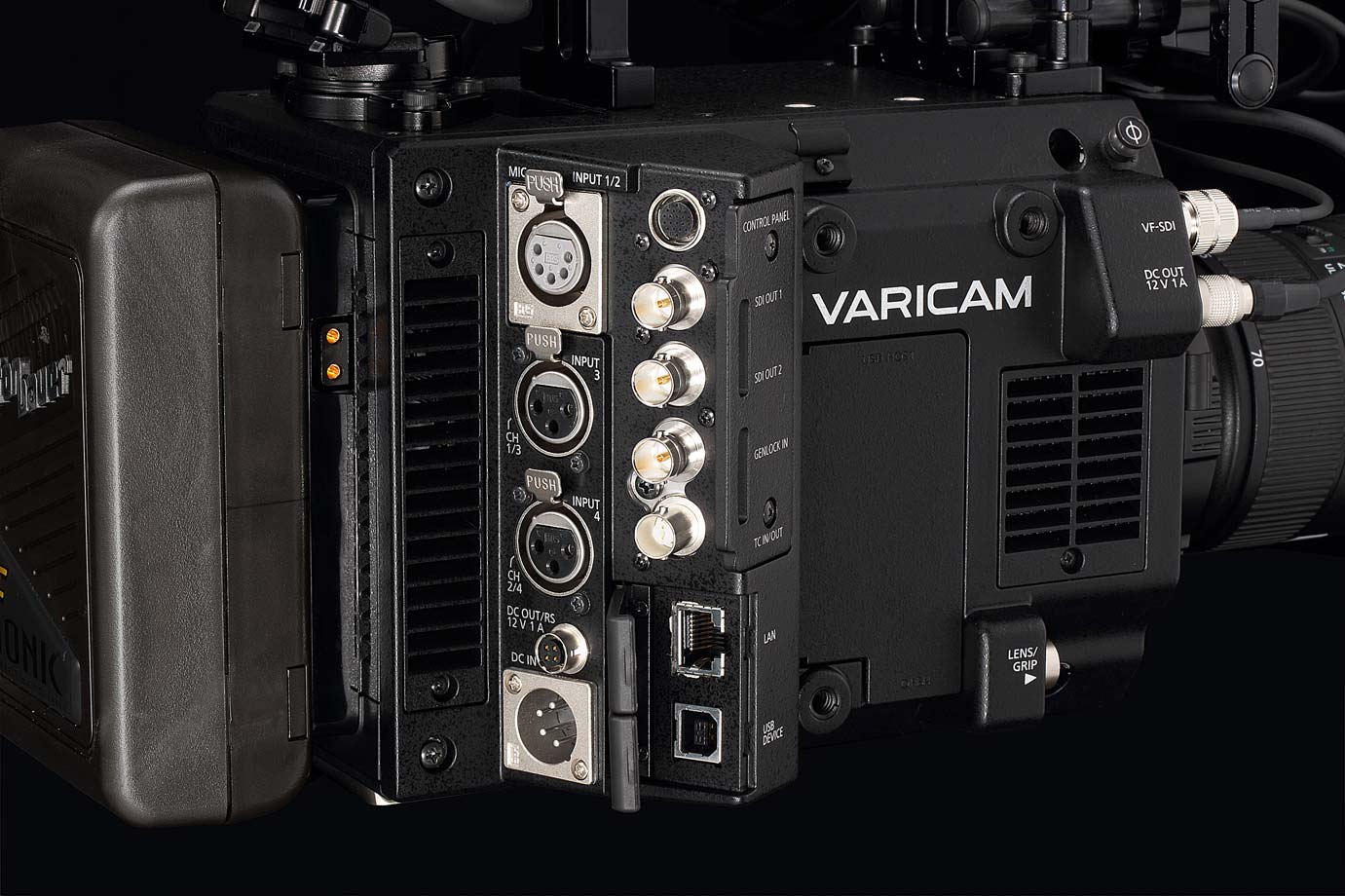

14_VaricamLT_Connectors

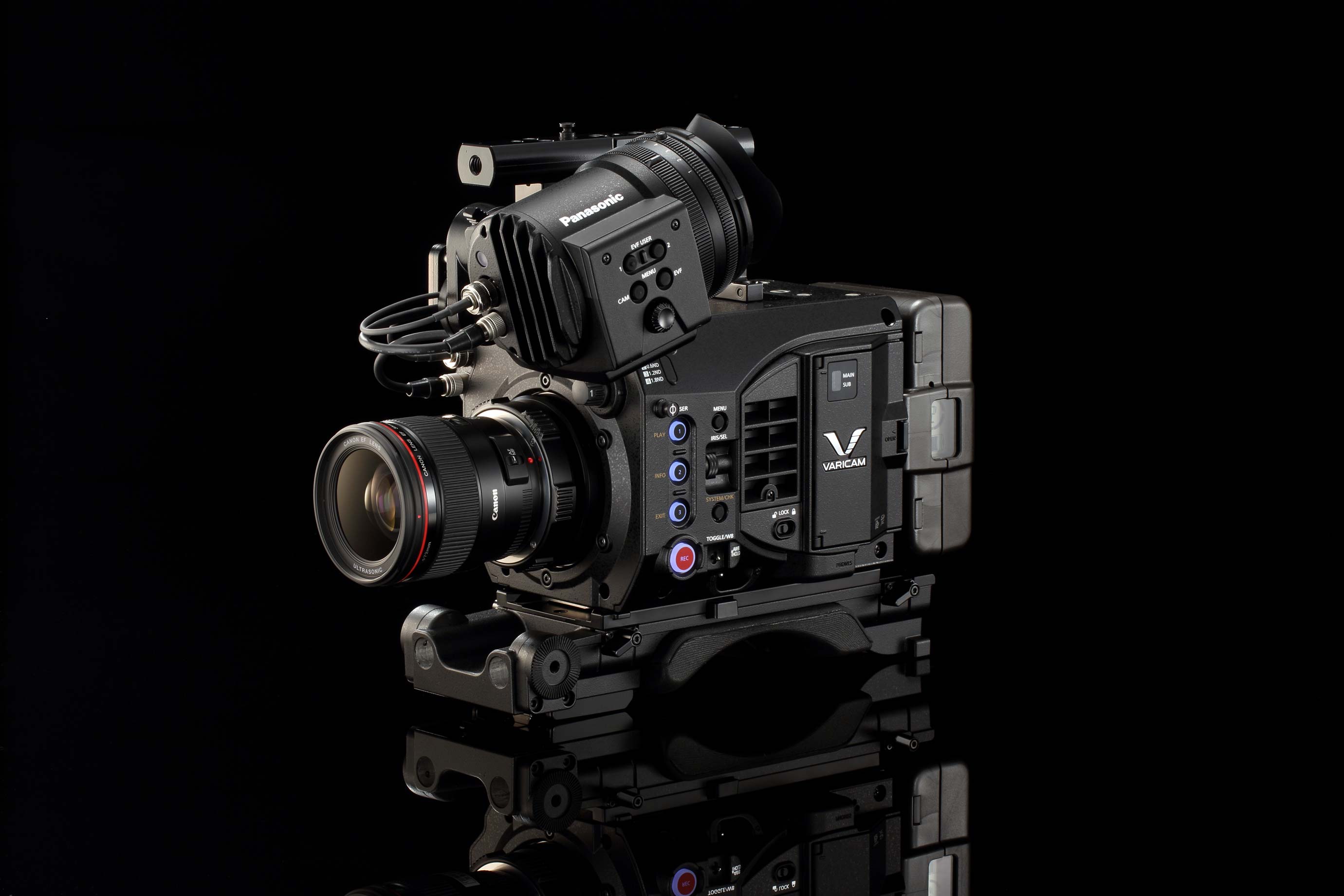

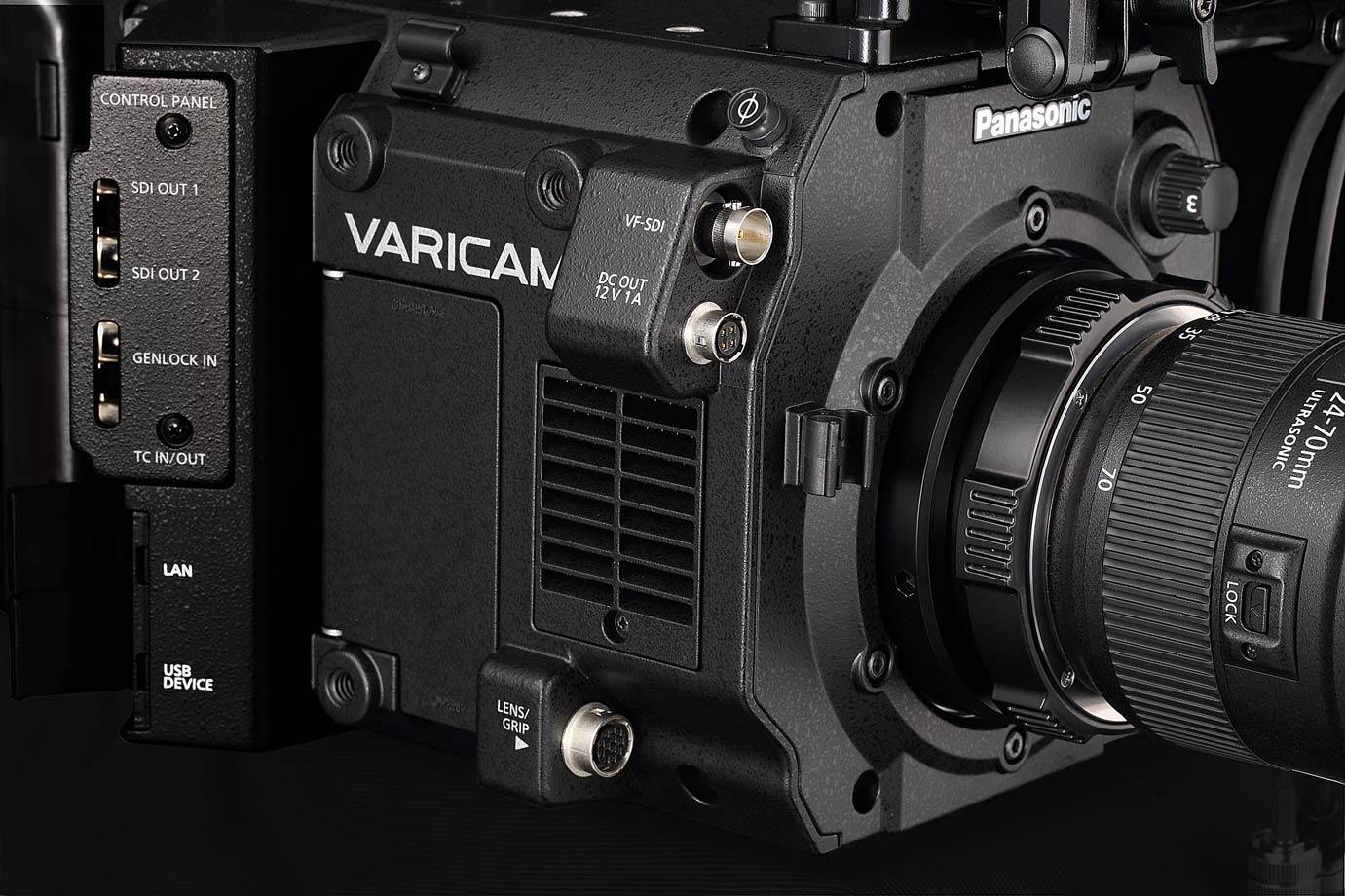

12_VaricamLT_VFconnectors 13_VaricamLT_BlackBack 10_VaricamLT_ControlPad 09_VaricamLT_SensorEF
