Panasonic Yamagata Lens Factory Tour

L1020331

Tendo City, Yamagata is a one-hour flight north from Tokyo’s  Haneda Airport. The mountainous area seems like Stowe, Vermont—with the added attractions of hot springs, restaurants proclaiming the area to be the leader in Japan for ramen and soba noodles, and factories that make most of Japan’s Shogi (chess) sets. We are here to visit a different kind of factory: Panasonic’s Yamagata Lens Factory.

A year earlier at the Okayama factory, I had met Panasonic’s principal  lens designer, Mr. Kazutake Boku. He suggested a visit to their lens factory on my next trip to Japan. “It’s like nothing you’ve ever written about before,” he said. “The factory is highly automated and we achieve tolerances and quality that you have not yet experienced in cine lenses.”

So here I was, a year later, in the North of Japan, not far from the lens factories of other famous manufacturers. A highly skilled workforce and pristine supplies of clear water contribute to the choice of location.

Panasonic’s Yamagata Plant was established in 1982. It is 13,600 square meters (146,389 sq ft). Spherical lens manufacturing started in 1987, followed by aspheric optical element production in 1989. Today, there are 484 employees.

Our hosts were Mr. Yoshiyuki Suzuki, Manager of the Optical Business Planning Team; Kiyokazu Ishiyama, Manager of the Engineering Team; Masayuki Itagaki, Manager of the Lens Engineering Section; Kyoichi Miyazaki, Chief Engineer and Lens Designer in Kadoma City, Osaka; Noriaki Wada, Merchandising Group Chief; Kunihiko Miyagi, Professional Video Business Unit Director; and Ms. Megumi Sato.

The Yamagata factory manufactures glass aspherical elements from 1 to 75 mm diameter, and plastic aspherical elements from 2 to 38 mm diameter.

Of course, some cine lens elements can be larger than 75 mm diameter. But, unlike the labor-intensive grinding and polishing we’ve seen before at cine lens optical factories, most of the work here is automated by machines. Instead of using abrasives and slurries, the work here is done by precision glass molding. It works like this.

A mold is machined from a very hard, heat-resistant material. I believe it’s ceramic. The mold is the reverse shape of the optical element to be formed. It is finished by hand by highly skilled technicians to tolerances better than 1 micron. This eliminates any ridges or textures that might contribute to the dreaded “onion ring” bokeh effect which appears as concentric circles.

Once the mold is ready, blanks of glass, ground roughly to the size and shape required, are heated until they soften and become malleable (around 700 – 1,000 °C). The mold squeezes together under high pressure, forming the finished lens element to a tolerance of less than 2 microns. All this is done in a matter of seconds. Traditional polishing can take hours.

Lens Manufacturing

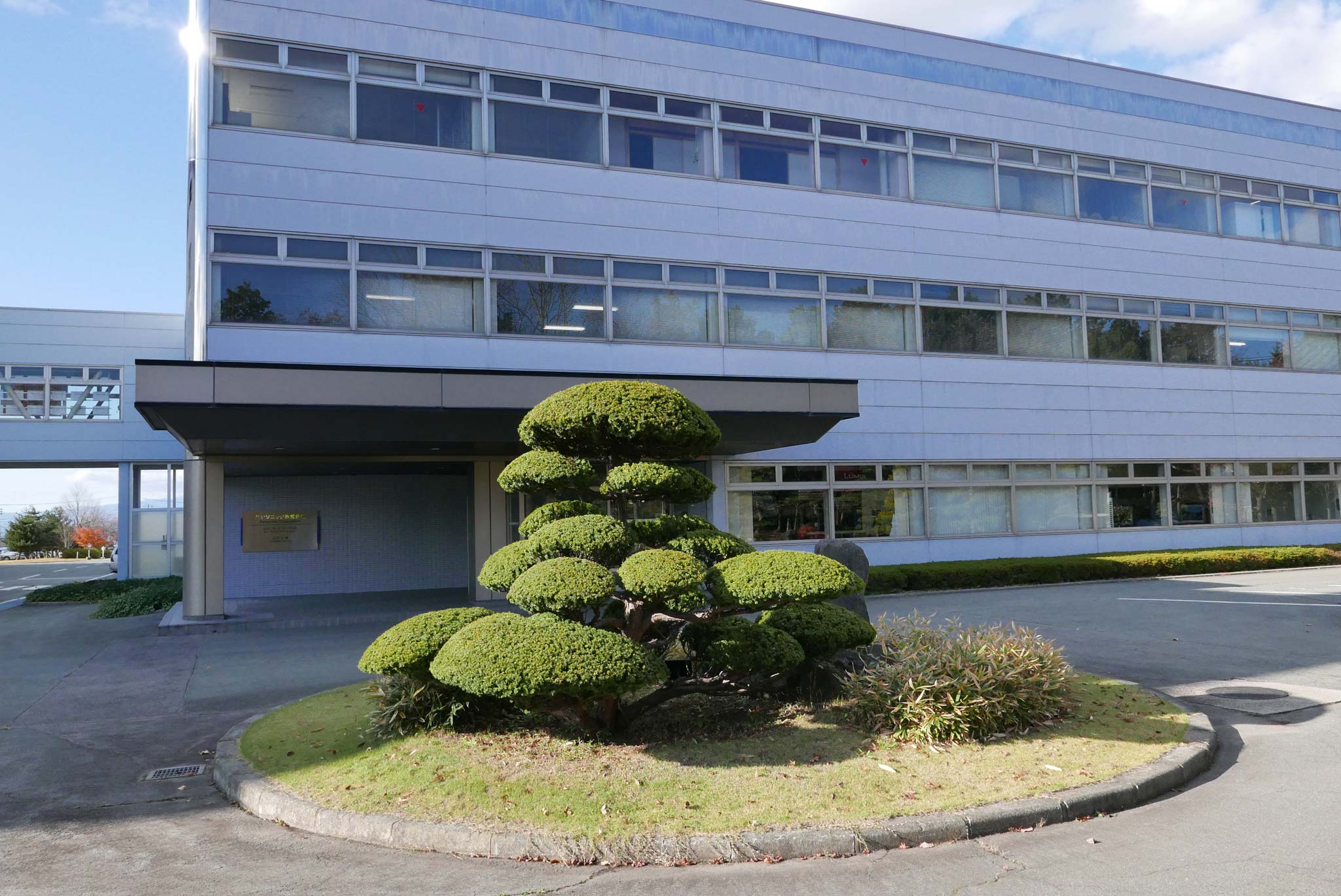

Panasonic’s Yamagata lens factory.

Panasonic’s Yamagata lens factory.

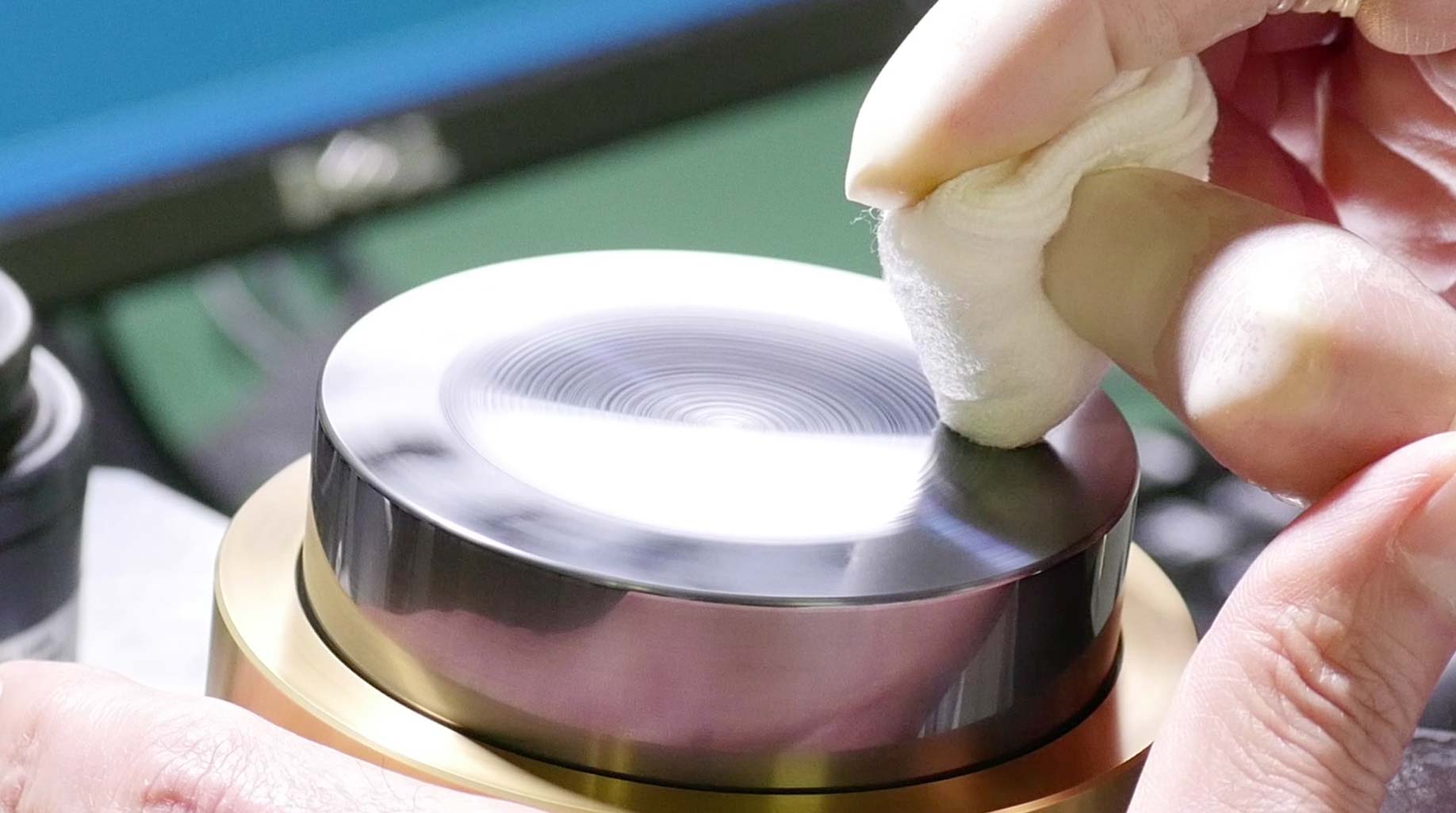

Molds are hand polished to 1 micron accuracy: no “onion rings.”

Molds are hand polished to 1 micron accuracy: no “onion rings.”

PanasonicLens7

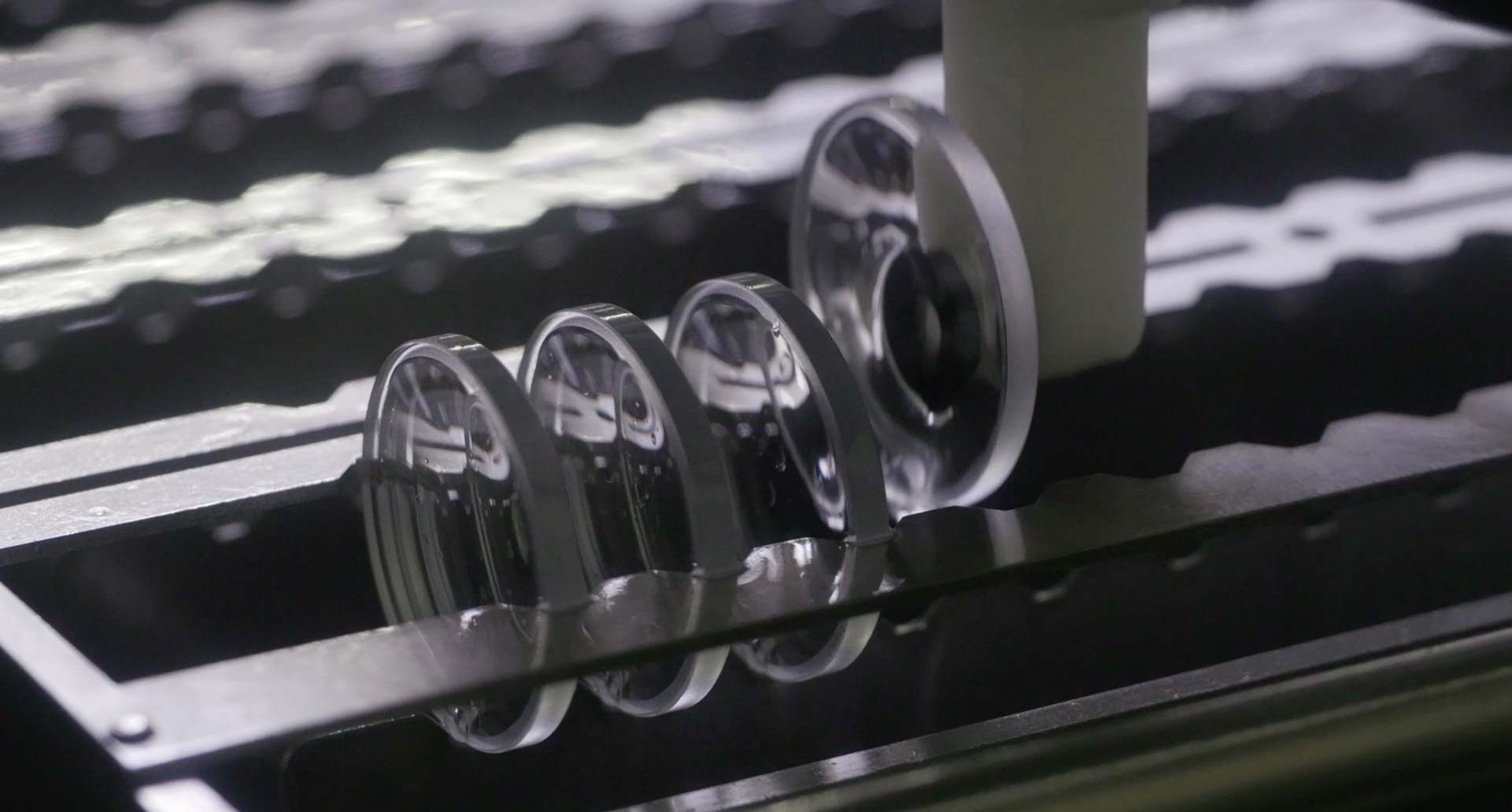

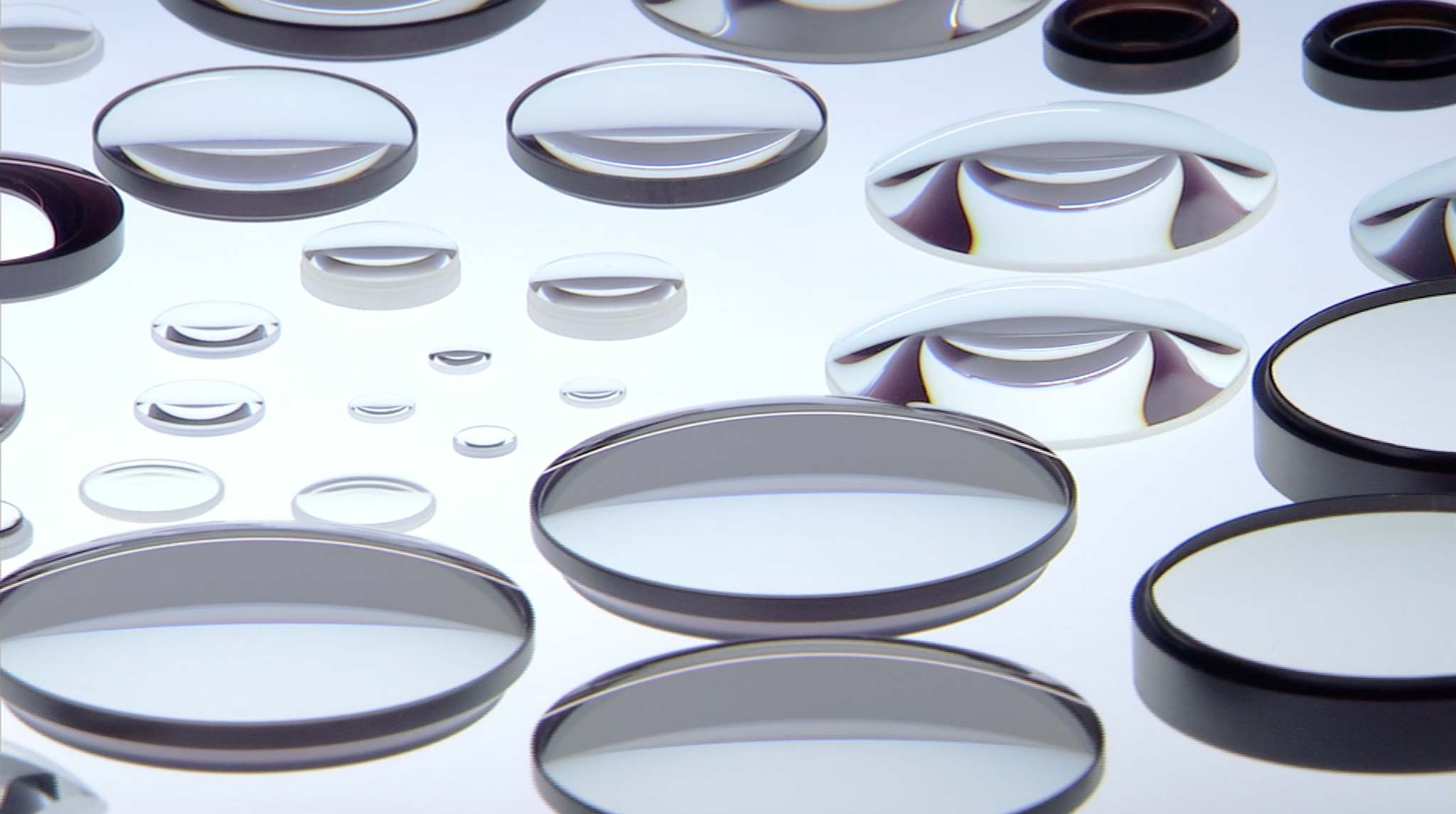

Automation yields aspheric elements up to 75 mm diameter.

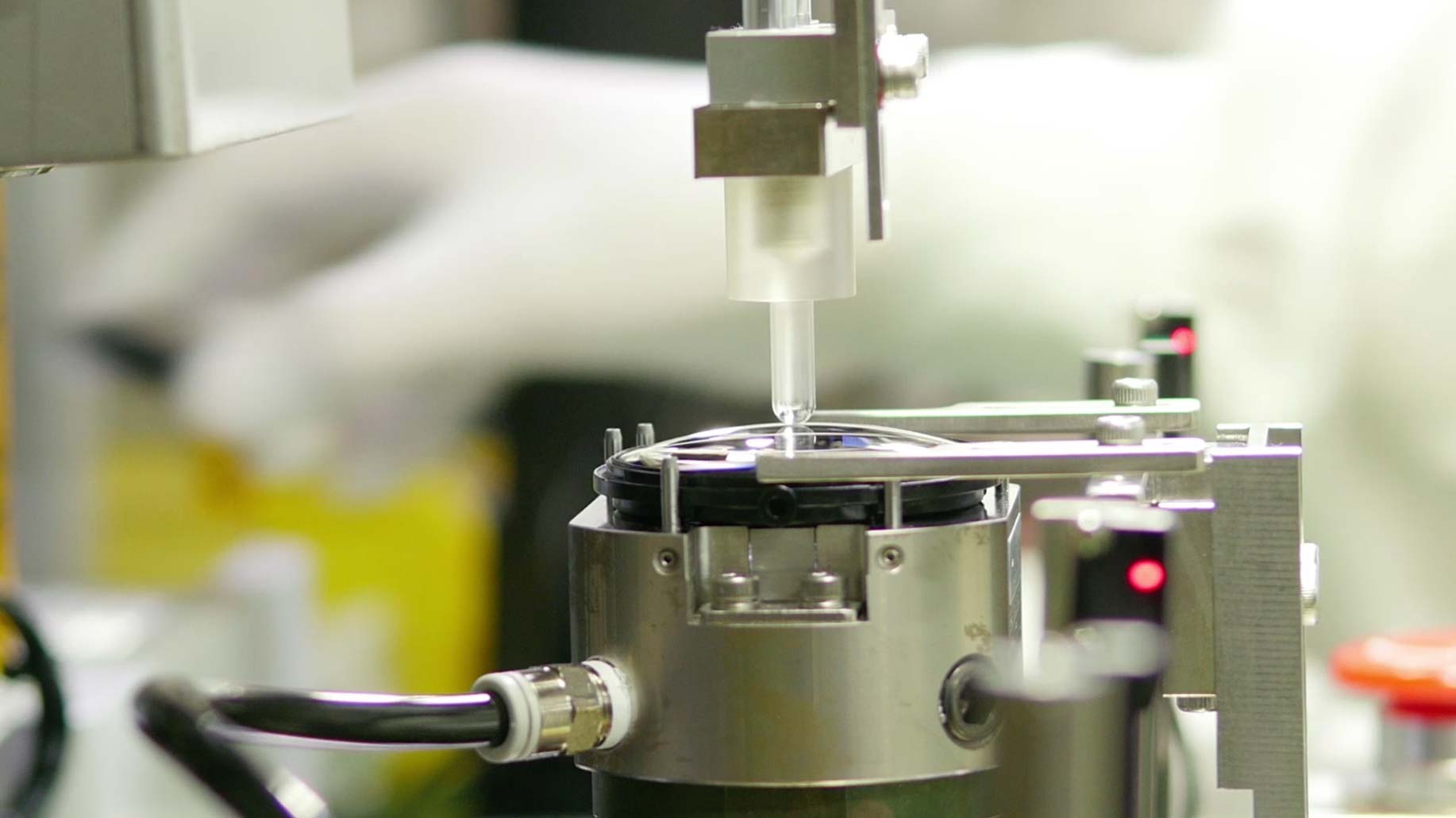

Centering to within 2 micron tolerance.

Centering to within 2 micron tolerance.

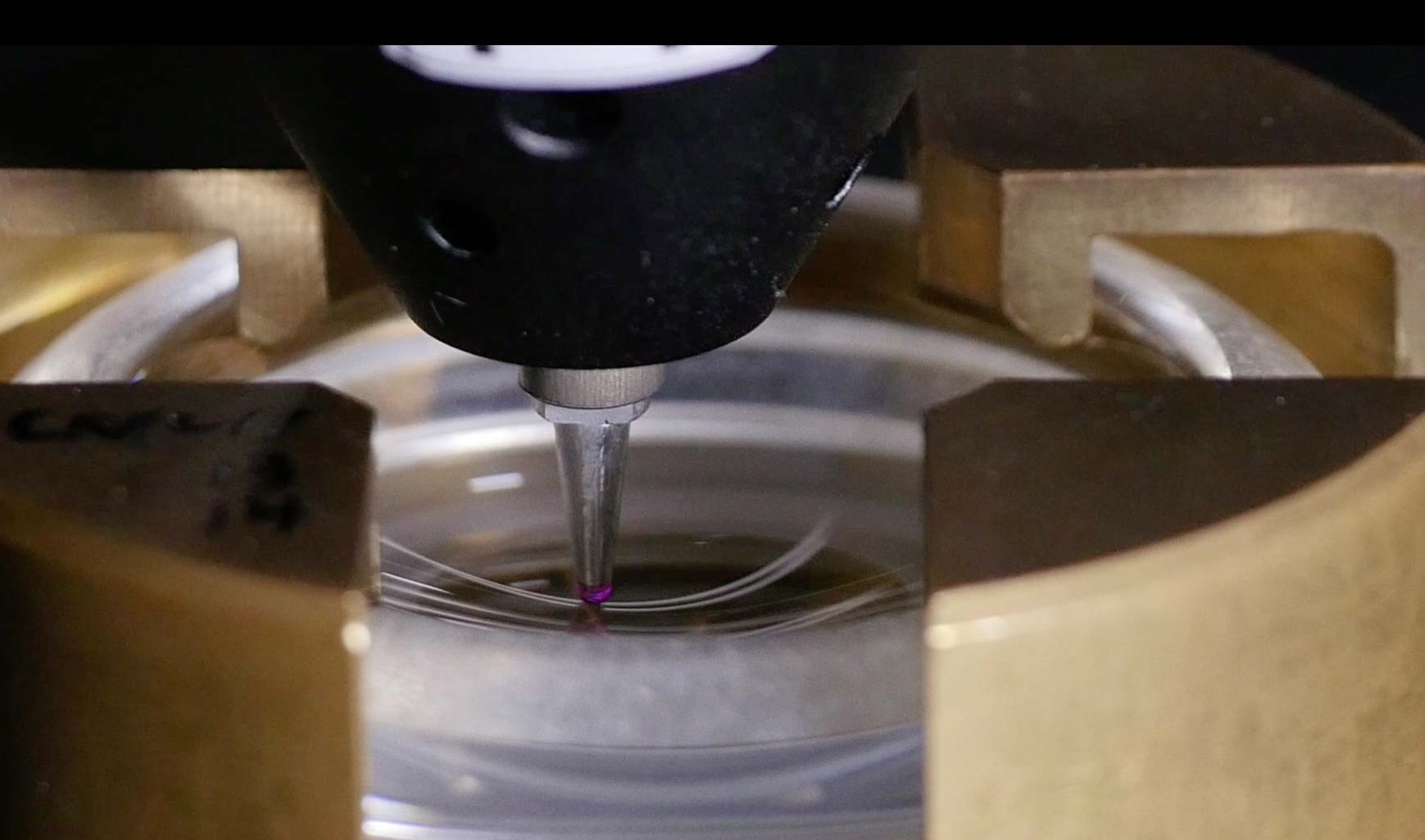

 3D Profilometer developed by Panasonic measures to .1 micron (1/10,000 mm).

3D Profilometer developed by Panasonic measures to .1 micron (1/10,000 mm).

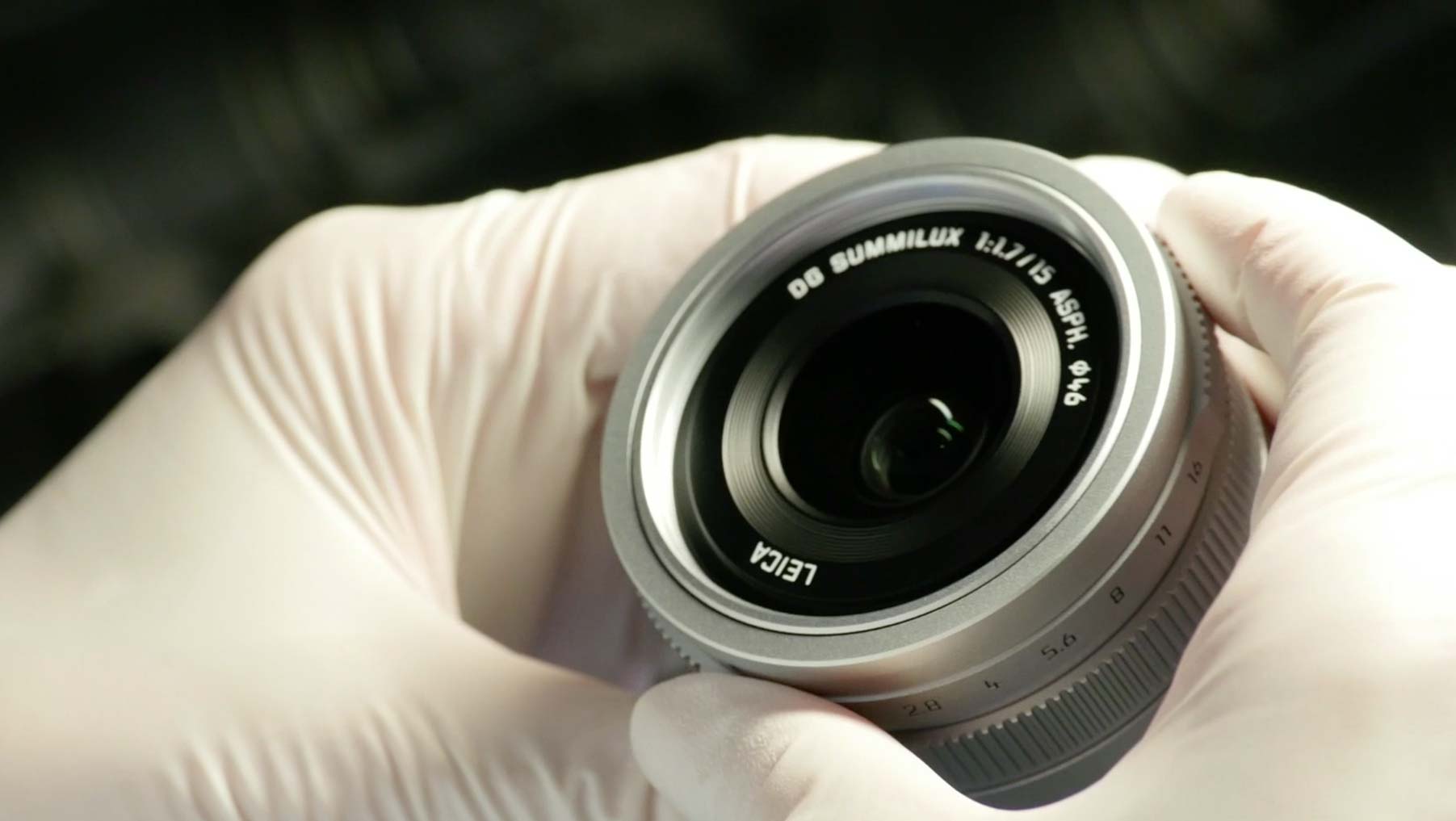

Each lens is cleaned and hand inspected. Advanced lenses are manually finished by skilled craftsmen and women.

Each lens is cleaned and hand inspected. Advanced lenses are manually finished by skilled craftsmen and women.

Quality assurance is certified by Leica.

Quality assurance is certified by Leica.

Automated lens assembly. Photos courtesy of Panasonic.

Automated lens assembly. Photos courtesy of Panasonic.

Kyoichi Miyazaki, Lens Designer

L1020255

Kyoichi Miyazaki, Chief Engineer and Lens Designer at Panasonic

Mr. Kyoichi Miyazaki is Chief Engineer and Lens Designer at Panasonic’s headquarters. He works on developing optical systems for digital still cameras, camcorders and other optical devices, reporting to Panasonic AVC Networks VP Mr. Takuya Sugita.

Mr. Miyazaki explained Panasonic’s lens manufacturing capabilities. “We have the technology for the design, manufacturing and  testing of lenses. We make these products using a combination of optical technologies, alignment, measurement, and assembly. We’ve seen a lot of innovations over last 10 years, especially for high performance lenses.”

Leica and Panasonic became strategic partners in 1997. “For the Leica certification, we had to work very hard to achieve lenses that had high performance, high resolution, minimum aberrations, and pleasing bokeh effects that were soft and smooth. Leica’s tradition of best performance at wide apertures continues here, along with great resolution, smooth bokehs and smooth skin textures.”

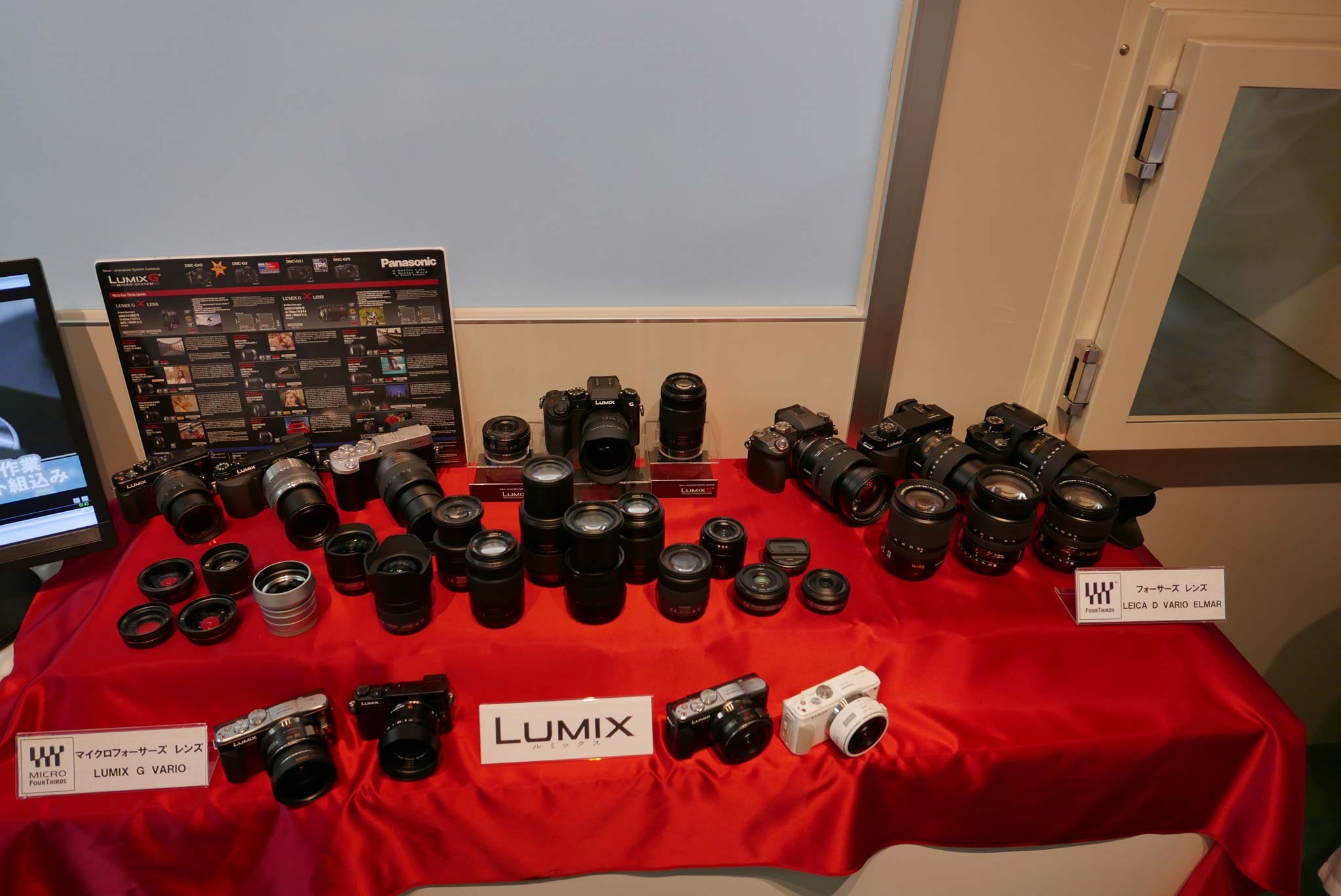

Panasonic has a large portfolio of still photography lenses for their compact cameras and LUMIX Micro Four Thirds mirrorless cameras.  (MFT has an imaging area of 17.3 mm × 13.0 mm (21.6 mm diagonal).

The MFT interchangeable Leica DG Lenses include the impressive NOCTICRON 42.5 mm / f1.2 ASPH, SUMMILUX 15 mm f1.4, 25 mm f1.4, and MACRO-ELMARIT 45 mm  f2.8 O.I.S. The Leica DG NOCTICRON has 14 optical elements in 11 groups, including 2 aspherical elements, internal focus, silent operation, and Optical Image Stabilization.

LUMIX G X Lenses consist of: X Vario 12-35 mm f2.8 OIS, X Vario 14-42 mm f3.5-5.6 Power Zoom with OIS, X Vario 35-100 f2.8 OIS, and X Vario 45-175 f/4-5.6 Power Zoom with O.I.S.

LUMIX G lenses include 10 primes and 13 G Vario zooms, covering  from an 8 mm Fisheye to 300 mm on a zoom.

Mr. Miyazaki said that Panasonic’s Yamagata plant is the only one that can now mold large aspherical lenses up to 75 mm diameter. They are molded, not polished, with an accuracy under 1 micron. Smaller molded glass elements (up to around 10 mm diameter) can be molded to an accuracy under .1 micron.

Mr. Miyazaki talked about camcorder lenses. “With camcorder lenses, especially on 4K cameras, it is especially important to minimize shaking. That emphasizes the need for good Optical Image Stabilization. “We also want to minimize focal length changes (breathing) when focusing. Focus must remain consistent when zooming, and it’s important that the motors are silent. When designing for still photography, we don’t have to be so concerned about this. But for video, and especially 4K video, these are critical.

“Digital Still Camera interchangeable lenses must reach the camera’s resolution of at least 23 million pixels. Even though 4K is around 8 million pixels, the lens still should still have a resolution as high as the still camera lenses.

“For the new AG-DVX200 4K camcorder, with attached 13:1 zoom lens, we make the 4K spherical and apherical lens elements here in Yamagata. The DVX200 cameras and lenses are assembled in Okayama, in the same factory you visited last year—where the VariCams are assembled as well.”

I asked whether Panasonic was building interchangeable lenses for the professional cinema market. Mr. Miyazaki said, “Not yet.” But I don’t think that means they couldn’t or wouldn’t.

Kunihiko Miyagi, Panasonic Director

L1020387

Kunihiko Miyagi, Director of Panasonic’s Professional Video Business Unit

Kunihiko Miyagi is Director of Panasonic’s Professional Video Business Unit.

He announced Panasonic’s AG-DVX200 camcorder at NAB 2015 and launched it in September at IBC. The DVX200 is a 4K handheld camcorder with a single Four Thirds (MFT: Micro Four Thirds) sensor and attached Leica 12.8-167 mm (13:1) f2.8-4.5 zoom lens with 5-axis stabilization. It’s documentary camera sized, and weighs about 6 lb. The camera records 4K MP4 or MOV to internal SD cards: 4K at 24 fps, UHD 4K to 60 fps, and HD (AVCHD) to 120 fps. US list price is $4699 and a quick online search shows a $4195 street price.

Mr. Miyagi explained the camera. “We created the VariCam 35 as a production camera. There are several reasons for this camera—the AG-DVX200. It is more affordable. We can reach a wider audience.

“Our code name for the DVX200 was VariCam Mini. We decided not to use that for the actual product name. It doesn’t even have the VariCam name on it. We save that for the top of the line models. This is for more affordable and independent markets, documentaries, reality, corporate, event, second-unit and broadcast.

“The other reason for the DVX200 was that we had created another camera that really defined an era in the earlier days of DV.  This camera continues that legacy. It is like the successor. We think the DVX100 is more the inspiration for this successor camera than the VariCam 35.

“The DVX200 is our 4K entry model.  Almost every other manufacturer has 4K cameras with interchangeable lenses. This one is fixed. It has the most zoom range. We were able to create it because we have the technology to build its special lens. Using the strength in our lens manufacturing and especially aspherical technology, we were able to make a large ratio zoom lens in a very compact size. It has good design, autofocus and OIS. Lots of orders are coming in so it’s keeping our factories busy.

“As you can expect, there will be something new—for your NAB issue. It seems like every year we are coming out with a new camera, and that is our commitment to the production market. We are continuing to invest in the technology to develop the sensors, signal processors and the lenses, not only for next year, but for years to come. As you can expect, the investment is very high, especially for the optical division.

“The S35 format has good points (VariCam 35). The good thing about the Four Thirds lens format is that it is compact and affordable, and still has shallow depth of field. It could be mainstream for this format. The Four Thirds and Micro Four Thirds (MFT) Systems have a single image sensor measuring 17.3 x 13 mm (diagonal of 21.63 mm), which is half the diagonal length (44 mm) of the Full Frame format 36 mm x 24 mm.

“The 4/3 flange depth is 38.67 mm. MFT flange focal depth is 19.25 mm. The image sensor size is the same for both.

“The DVX200 achieves a 13:1 zoom ratio in a lens that’s only about 7” long, and weighs under 2 pounds. Remember, a 7.5:1 zoom ratio cinema lens like the Fujinon 24-180 is over twice as long (16” ) and ten times as heavy (the lens itself weighs 19.6 lb).

“We are working on 8K cameras now as well. (They were shown at InterBEE 2015.) We have an 8K camera, recorder, lens, and editing. for the 2020 Tokyo Olympics. We can really appreciate how 8K brings you into the image, immerses you. At this time data is a challenge, but that should improve over time.”

L1020354 L1020396
