Sony α7R II Details

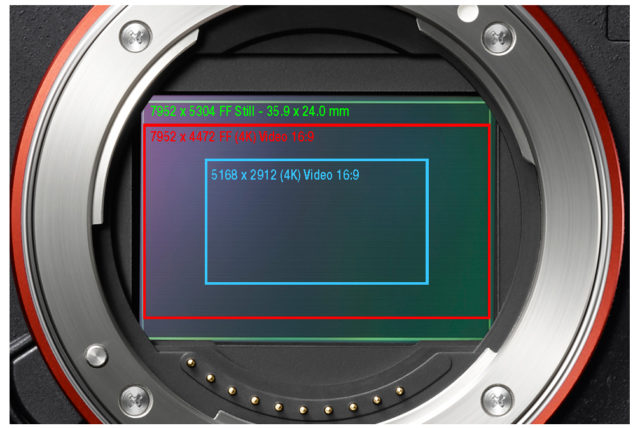

Sensor dims a7r ii final

Sony’s new α7R II Mirrorless Digital Still/Video Camera demonstrates innovative technology that I think foreshadows additional 4K Full Frame and Super35 cinema cameras to come.

The camera’s Full Frame 24×36 mm 42.2 megapixel back-illuminated sensor has a gapless OCL (On Chip Lens) design and a copper wiring layer instead of aluminum for a 3.5x faster readout than the previous α7R model. The internal hardware/software is powerful enough to process the full frame video for 4K internal recording without pixel binning or line skipping. Sony says this is a world’s first.

Additionally, the camera can also record APS-C format in 4K. See chart above. The α7R camera’s E-mount with 18mm flange depth offers a world of adapters for almost any photo or cinema lens known to man–including PL and PV.

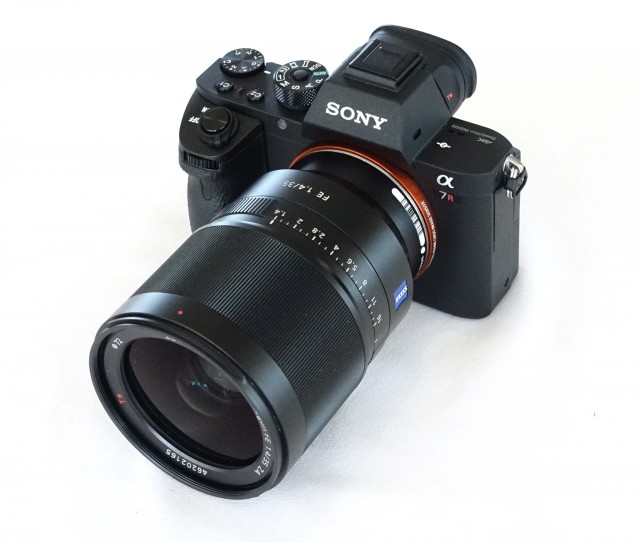

DSC06853-FDTimes



There are many other interesting things about this camera that will be helpful for cine production. Image stabilization is provided by the sensor itself, not digitally, but physically: the sensor actually moves in 5 axes to compensate for pitch, yaw and shake. This could be great for drones and rigs.

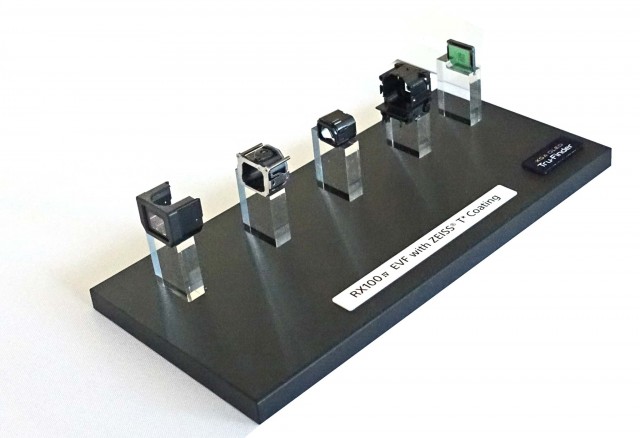

The XGA OLED viewfinder is small, but incredibly sharp.

DSC06786-a7r-ii-EVF-fdtimes

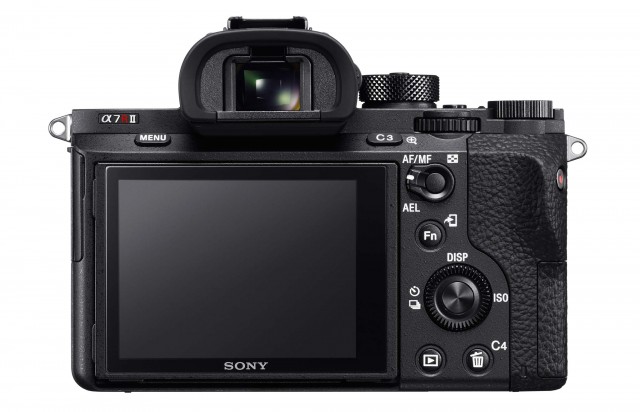

ILCE-7RM2_rear



Nevertheless, there never was a DP born who didn’t ask, like Oliver Twist, for more. I calculate the APS-C center crop height at 13.18 mm—but what we really want is 18 mm high x 22 mm wide to accommodate all the anamorphic lenses out there. Anamorphic desqueeze in the viewfinder and monitor would be nice. SDI output? RAW uncompressed output? Maybe the next model: α7R Mark III…

No matter, I can’t wait for the α7R II to arrive in August.

——————-



α7R II (ILCE-7RM2) Specs

  • Interchangeable-lens mirrorless Full Frame 24×36 mm digital camera
  • E-mount – 18 mm flange focal depth
  • Sensor: 35 mm full frame (35.9 x 24.0 mm), Exmor R CMOS sensor
  • Approx. 42.4 megapixels  (effective)
  • Full frame image aspect ratio: 3:2
  • Still image recording format: JPEG (DCF Ver. 2.0, Exif Ver. 2.3, MPF baseline compliant), RAW (Sony ARW 2.3 format)Image Size (3:2 aspect ratio) in Still Photography Mode
  • 35 mm full frame  L: 7952 x 5304 (42M), M: 5168 x 3448 (18M), S: 3984 x 2656 (11M)
  • APS-C (crop mode) L: 5168 x 3448 (18M), M: 3984 x 2656 (11M), S: 2592 x 1728 (4.5M)Image Size (16:9 aspect ratio) in 4K Video and HD Mode
  • 35 mm full frame L: 7952 x 4472 (36M), M: 5168 x 2912 (15M), S: 3984 x 2240 (8.9M)
  • APS-C L: 5168 x 2912 (15M), M: 3984 x 2240 (8.9M), S: 2592 x 1456 (3.8M)
  • Still Image quality selection
    RAW (14-bit), RAW & JPEG, JPEG Extra fine, JPEG Fine, JPEG Standard
  • Color space: sRGB standard (with sYCC gamut) and Adobe RGB

Video

  • Recording format: XAVC S / AVCHD format Ver. 2.0 compliant / MP4
  • Video compression:
    XAVC S: MPEG-4 AVC/H.264
    AVCHD: MPEG-4 AVC/H.264
    MP4: MPEG-4 AVC/H.264

Video Image Size (pixels) Recorded:

  • MP4: 1,920 x 1,080 (50p/28 Mbps, 25p/16 Mbps), 1,280 x 720 (25p/6 Mbps)
  • AVCHD: 1920 x 1080 (50p/28Mbps/PS, 50i/24Mbps/FX, 50i/17Mbps/FH, 25p/24Mbps/FX, 25p/17Mbps/FH)
  • XAVC S HD: 1,920 x 1,080 (50p/50 Mbps, 25p/50 Mbps), 1,280 x 720 (100p/50 Mbps)
  • XAVC S 4K: 3,840 x 2,160 (25p/100 Mbps, 25p/60 Mbps)
  • [PAL]
  • MP4: 1,920 x 1,080 (60p/28 Mbps, 30p/16 Mbps), 1,280 x 720 (30p/6 Mbps)
  • AVCHD: 1920 x 1080 (60p/28Mbps/PS, 60i/24Mbps/FX, 60i/17Mbps/FH, 24p/24Mbps/FX, 24p/17Mbps/FH)
  • XAVC S HD: 1,920 x 1,080 (60p/50 Mbps, 30p/50 Mbps, 24p/50 Mbps), 1,280 x 720 (120p/50 Mbps)
  • XAVC S 4K: 3,840 x 2,160 (30p/100 Mbps, 30p/60 Mbps, 24p/100 Mbps, 24p/60 Mbps)
  • Gamma: Movie, Still, Cine1-4, ITU709, ITU709 [800%], S-Log2),
  • Video functions: Audio Level Display, Audio Rec Level, AF Tracking Sensitivity, AF Drive Speed, Auto Slow Shutter, HDMI info. Display (On/Off selectable), Time Code/User Bit, Picture Profile, Creative Style, Picture Effect, Rec Control, Dual Video Rec, Marker Setting, PAL/NTSC Selector
  • Video Color space: xvYCC standard (x.v.Color when connected via HDMI cable)
  • Clean HDMI output:
    • NTSC: 3,840 x 2,160 (30p/24p) / 1,920 x 1,080 (60p/24p) / 1,920 x 1,080 (60i), YCbCr 4:2:2 8 bit / RGB 8 bit
    • PAL: 3,840 x 2,160 (25p) / 1,920 x 1,080 (50p) / 1,920 x 1,080 (50i), YCbCr 4:2:2 8 bit/ RGB 8 bit
  • Media (internal multi slot): Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick Micro (M2), SD memory card, SDHC memory card (UHS-I compliant), SDXC memory card (UHS-I compliant), microSD memory card, microSDHC memory card, microSDXC memory card
  • White balance: Auto WB / Daylight / Shade / Cloudy / Incandescent / Fluorescent (Warm White / Cool White / Day White / Daylight) / Flash / Color Temperature (2,500 to 9,900K) & Color Filter (G7 to M7: 57steps, A7 to B7: 29steps) / Custom / Underwater, AWB micro adjustment
  • Focus: Fast Hybrid AF (phase-detection AF / contrast-detection AF)
    Focus points: 35 mm full frame: 399 points (phase-detection AF)
  • APS-C: 357 points (phase-detection AF) / 25 points (contrast-detection AF)
  • Focus modes: Automatic AF (AF-A), Single-shot AF (AF-S), Continuous AF (AF-C), Direct Manual Focus (DMF), Manual Focus
  • ISO:
    Still images: ISO 100-25600 (expandable to ISO 50-102400), AUTO (ISO 100-6400, selectable lower limit and upper limit)
  • Video: ISO 100-25600, AUTO (ISO 100-6400, selectable lower limit and upper limit)
  • Viewfinder: XGA OLED, 1.3 cm (0.5 type) electronic viewfinder (color)
  • EVF Total number of dots: 2,359,296 dots
  • EVF Field coverage: 100%
  • EVF Magnification: Approx. 0.78x (with 50 mm lens at infinity, -1 m-1)
  • EVF Diopter adjustment: -4.0 to +3.0 m-1
  • Eye point: Approx. 23 mm from the eyepiece lens, 18.5 mm from the eyepiece frame at -1 m-1 (CIPA standard)
  • LCD screen: 7.5 cm (3.0 type) TFT drive, 1,228,800 dots
  • Electronic Lens compensation: Peripheral shading, chromatic aberration, distortion
  • Shutter: Electronically controlled, vertical-traverse, focal-plane
  • Still images: 1/8000 to 30 sec., Bulb
  • Video: 1/8000 to 1/4 (1/3 step)
  • NTSC: Up to 1/60 in AUTO mode (up to 1/30 in Auto Slow Shutter mode)
  • PAL: Up to 1/50 in AUTO mode (up to 1/25 in Auto Slow Shutter mode)
  • Flash sync. speed: 1/250 sec.
  • Image stabilization: SteadyShot Image Sensor-Shift mechanism with 5-axis compensation (Compensation depends on lens specifications)
  • Rechargeable battery pack NP-FW50.
  • Battery Capacity–Still images: Approx. 290 shots (viewfinder) / approx. 340 shots (LCD screen)
  • Battery capacity Video: Approx. 50 min. with viewfinder, approx. 55 min. with LCD screen (CIPA standard)
